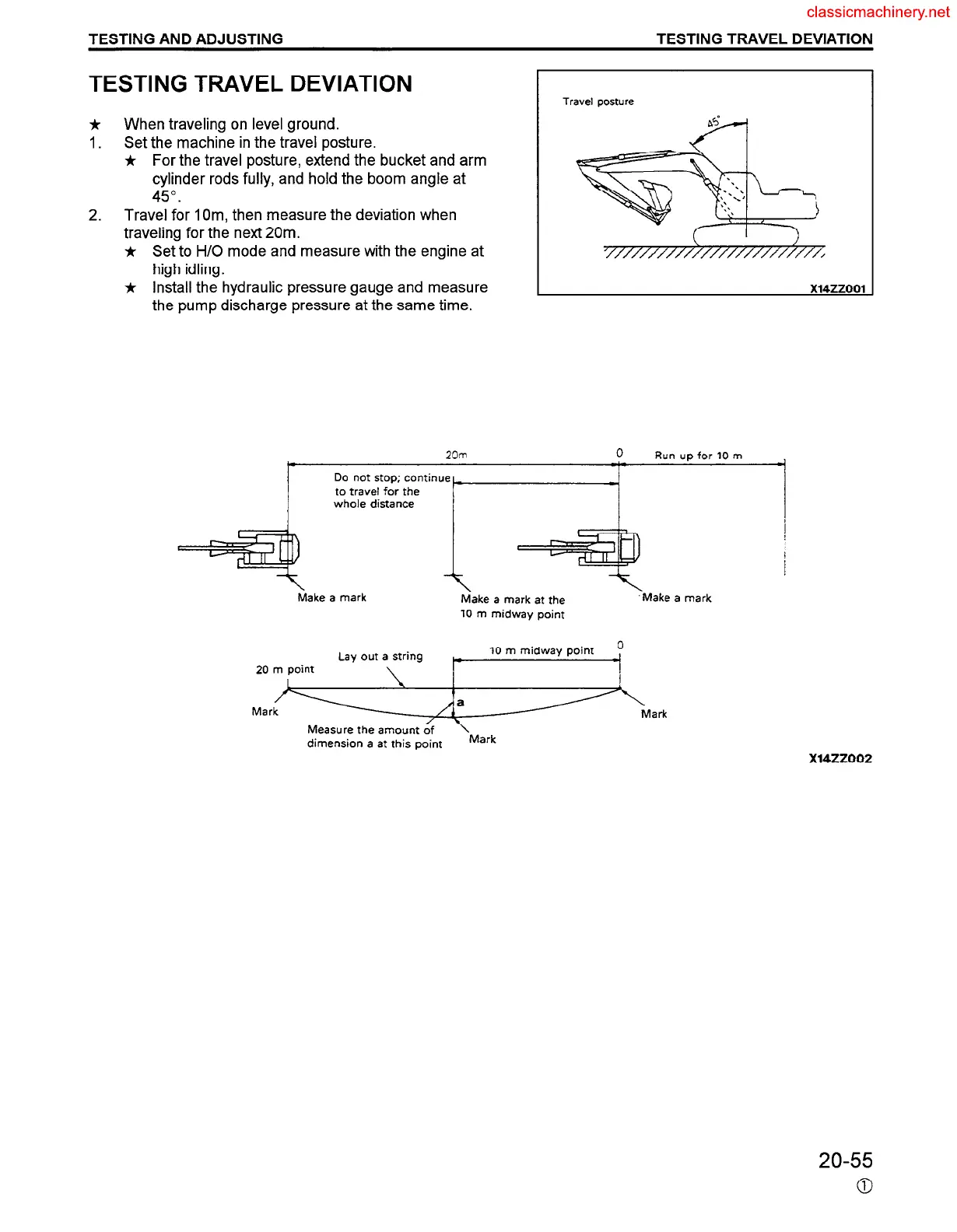

TESTING TRAVEL DEVIATION
Travel posture
j, When traveling on level ground.
1. Set the machine in the travel posture.
* For the travel posture, extend the bucket and arm
cylinder rods fully, and hold the boom angle at
45”.
2. Travel for 1 Om, then measure the deviation when
traveling for the next 20m.
* Set to H/O mode and measure with the engine at
high idling.
Ir Install the hydraulic pressure gauge and measure
x14zzoo1
the pump discharge pressure at the same time.
to travel for the
whole distance
Make a mark
Make a mark at the
10 m midway point
‘Make a mark
dimension a at this point
Mark
x14zzoo2
