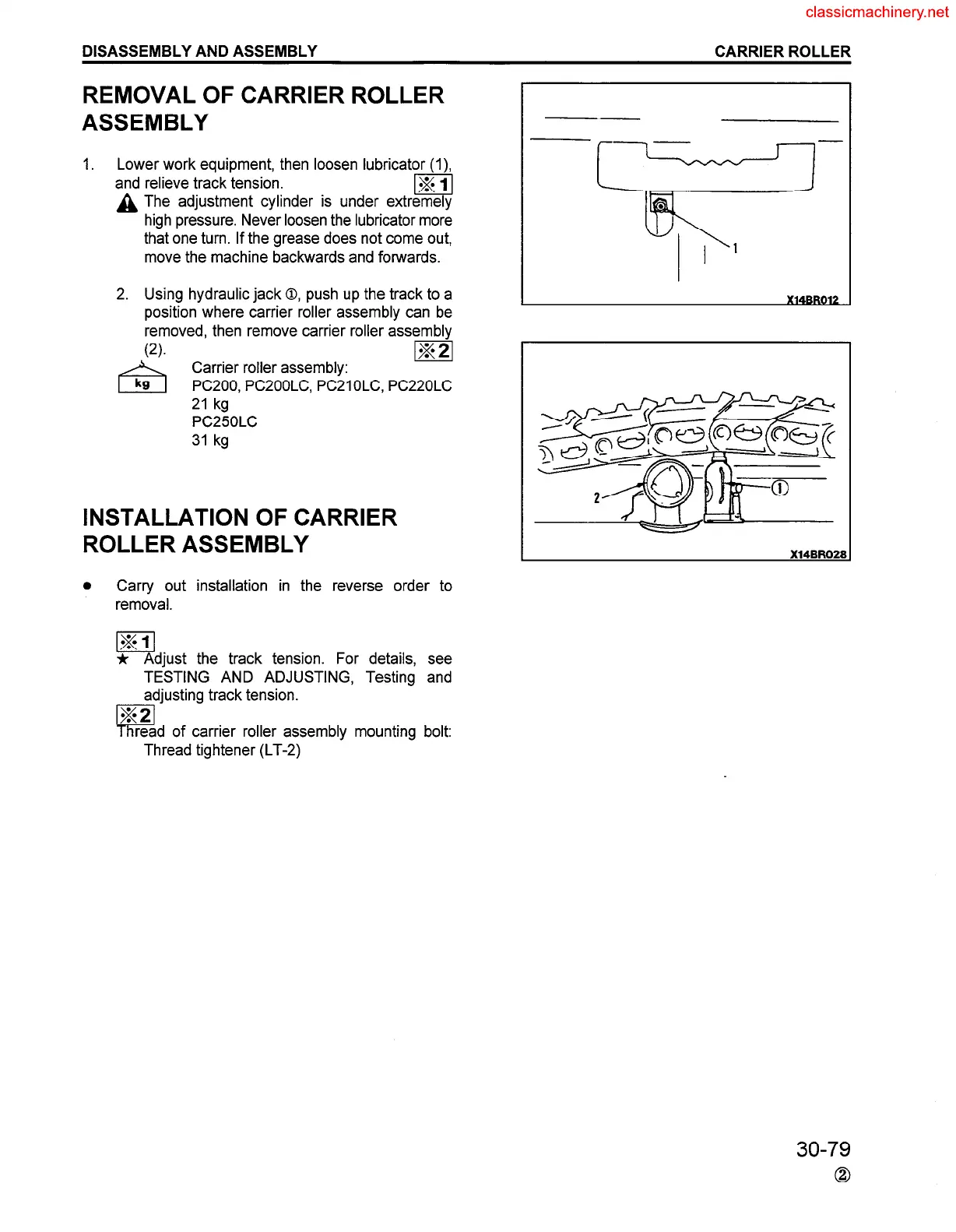

DISASSEMBLY AND ASSEMBLY
CARRIER ROLLER
REMOVAL OF CARRIER ROLLER
ASSEMBLY
1. Lower work equipment, then loosen lubricator (I),
and relieve track tension.
ml
A The adjustment cylinder is under extremely
high pressure. Never loosen the lubricator more
that one turn. If the grease does not come out,
move the machine backwards and forwards.
2. Using hydraulic jack 0, push up the track to a
position where carrier roller assembly can be
removed, then remove carrier roller assembly
(2).
Carrier roller assembly:
m
PC200, PC2OOLC PC21 OLC, PC220LC
21 kg
PC25OLC
31 kg
INSTALLATION OF CARRIER
ROLLER ASSEMBLY
a
Carry out installation in the reverse order to
removal.
* Adjust the track tension. For details, see
TESTING AND ADJUSTING, Testing and
adjusting track tension.
!?
%2
read of carrier roller assembly mounting bolt:
Thread tightener (LT-2)
--
r-=--l-
X14BR028
30-79
0
