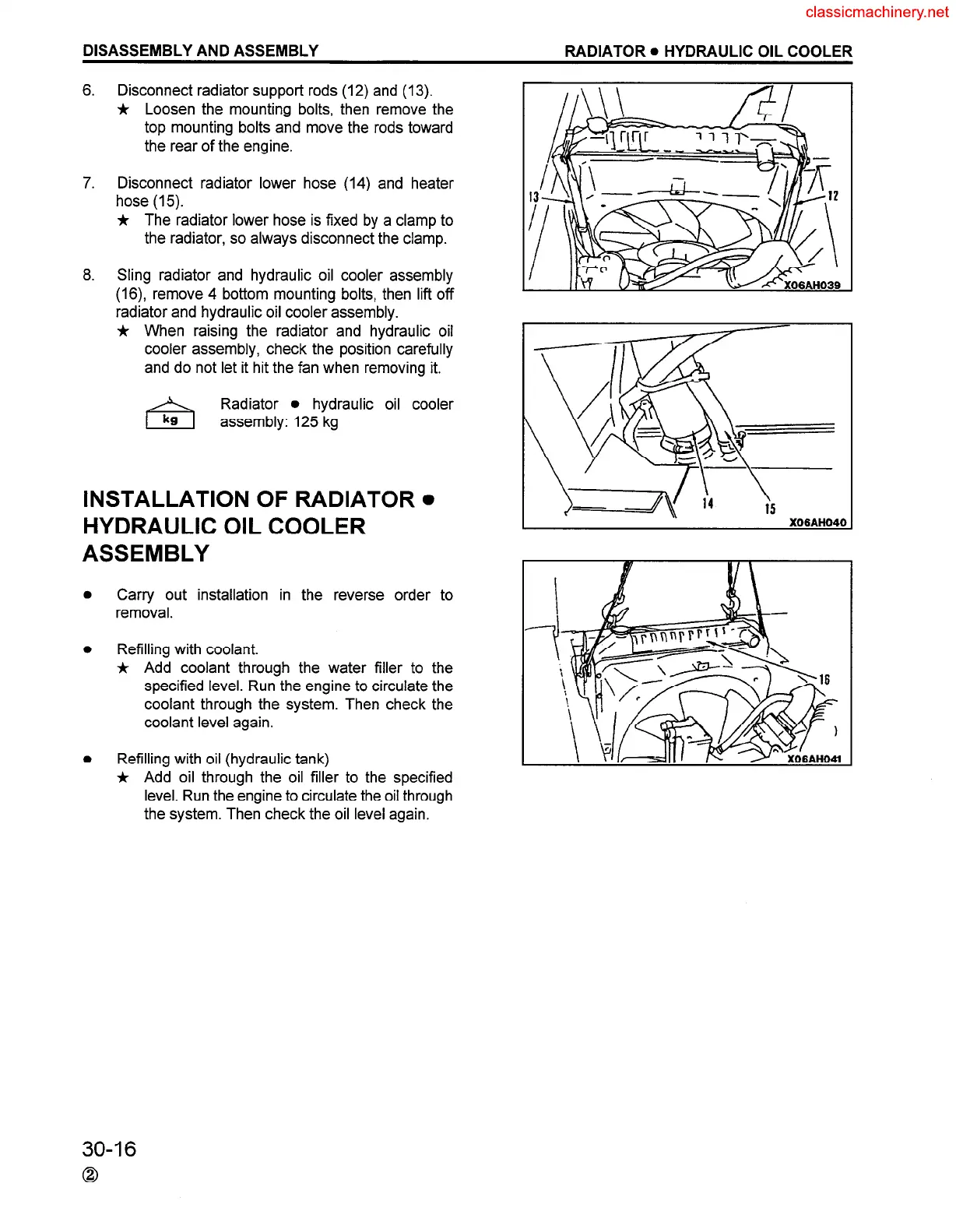

DISASSEMBLY AND ASSEMBLY
RADIATOR. HYDRAULIC OIL COOLER
6.
Disconnect radiator support rods (12) and (13).
* Loosen the mounting bolts, then remove the
top mounting bolts and move the rods toward
the rear of the engine.
7.
Disconnect radiator lower hose (14) and heater
hose (15).
* The radiator lower hose is fixed by a clamp to
the radiator, so always disconnect the clamp.
8. Sling radiator and hydraulic oil cooler assembly
(16) remove 4 bottom mounting bolts, then lift off
radiator and hydraulic oil cooler assembly.
* When raising the radiator and hydraulic oil
cooler assembly, check the position carefully
and do not let it hit the fan when removing it.
Radiator l hydraulic oil cooler
assembly: 125 kg
INSTALLATION OF RADIATOR.
HYDRAULIC OIL COOLER
ASSEMBLY
Carry out installation in the reverse order to
removal.
Refilling with coolant.
* Add coolant through the water filler to the
specified level. Run the engine to circulate the
coolant through the system. Then check the
coolant level again.
Refilling with oil (hydraulic tank)
* Add oil through the oil filler to the specified
level. Run the engine to circulate the oil through
the system. Then check the oil level again.
