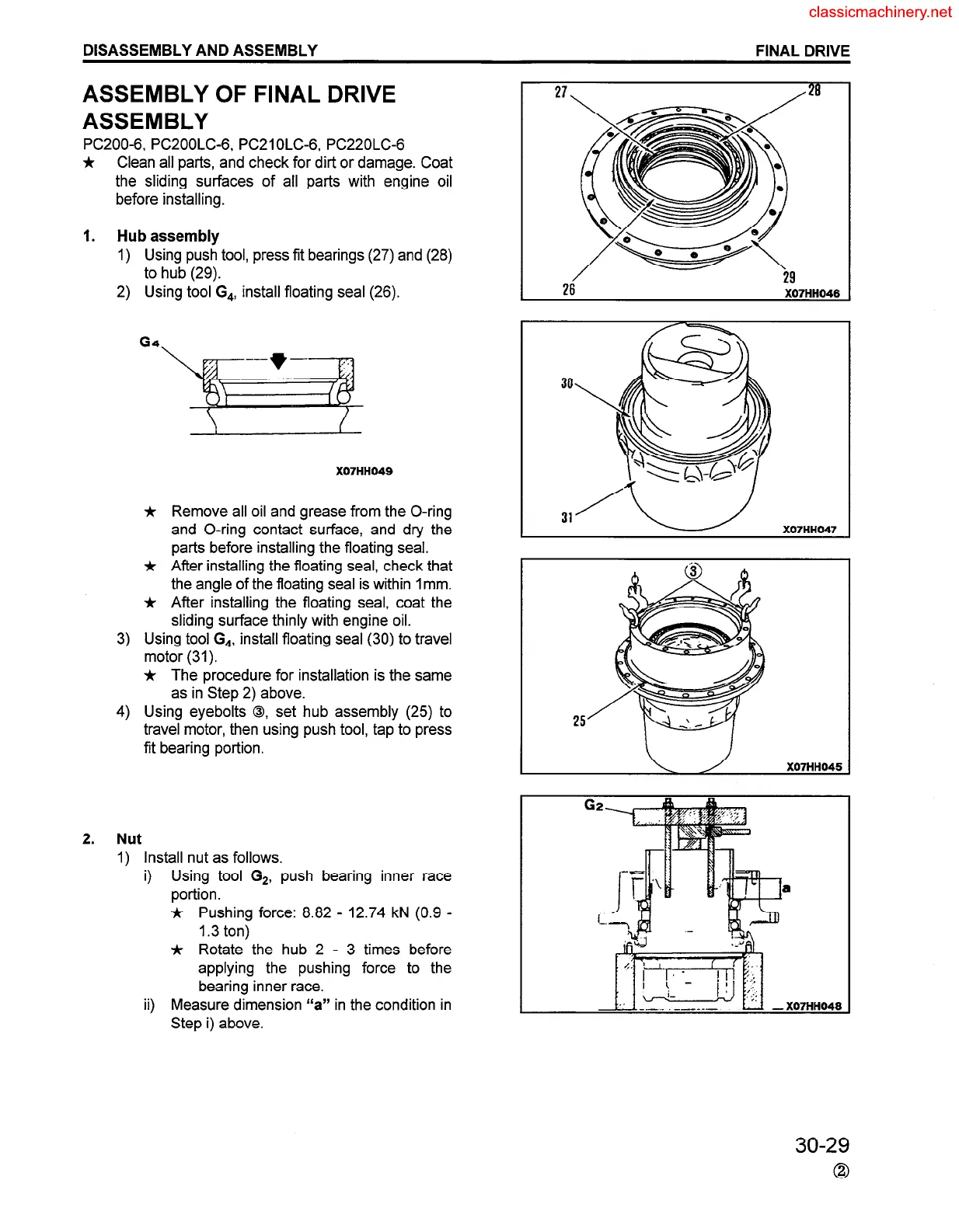

DISASSEMBLY AND ASSEMBLY
FINAL DRIVE
ASSEMBLY OF FINAL DRIVE
ASSEMBLY
PC200-6, PC2OOLC6, PC21OLC-6, PC22OLC-6
*
1.
2.
Clean all parts, and check for dirt or damage. Coat
the sliding surfaces of all parts with engine oil
before installing.
Hub assembly
1) Using push tool, press fit bearings (27) and (28)
to hub (29).
2) Using tool Gq, install floating seal (26).
G4.
*
*
*
X07HH049
Remove all oil and grease from the O-ring
and O-ring contact surface, and dry the
parts before installing the floating seal.
After installing the floating seal, check that
the angle of the floating seal is within 1 mm.
After installing the floating seal, coat the
sliding surface thinly with engine oil.
3)
4)
Using tool G,, install floating seal (30) to travel
motor (31).
* The procedure for installation is the same
as in Step 2) above.
Using eyebolts 0, set hub assembly (25) to
travel motor, then using push tool, tap to press
fit bearing portion.
Nut
1) Install nut as follows.
i) Using tool G,, push bearing inner race
portion.
* Pushing force: 8.82 - 12.74 kN (0.9 -
1.3 ton)
j, Rotate the hub 2 - 3 times before
applying the pushing force to the
bearing inner race.
ii) Measure dimension “a” in the condition in
Step i) above.
&II
X07HH047
I
25
X07HH045
a
-.-.. --__-
_ XO7HHO45
30-29
0
