DISASSEMBLY AND ASSEMBLY
ARM CYLINDER

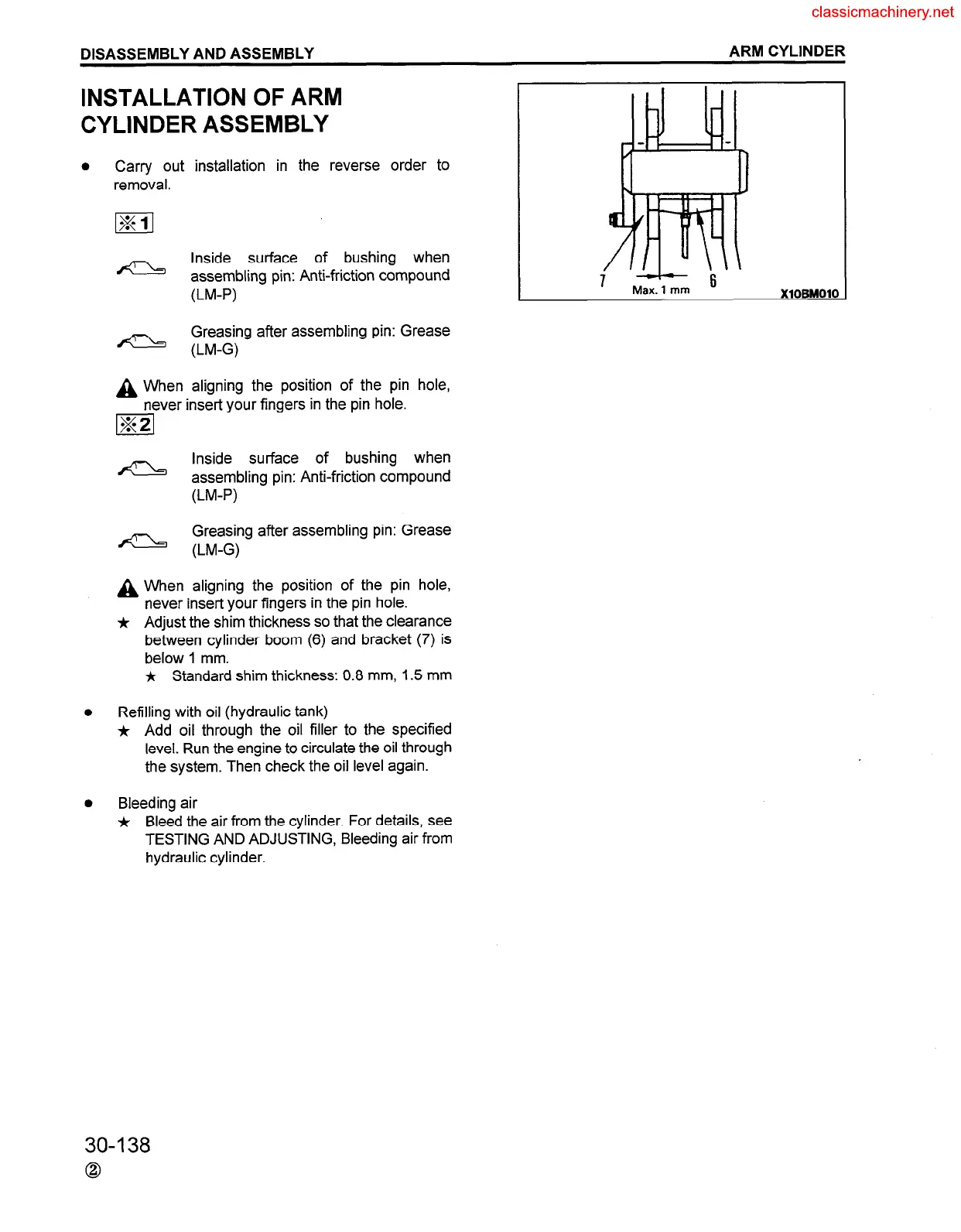

INSTALLATION OF ARM
t LI I.-l I
CYLINDER ASSEMBLY
I
Carry out installation in the reverse order to
removal.
a
Inside surface of bushing when
assembling pin: Anti-friction compound
(LM-P)
Greasing after assembling pin: Grease
- (LM-G)
A When aligning the position of the pin hole,
never insert your fingers in the pin hole.
m
-
Inside surface of bushing when
assembling pin: Anti-friction compound
(LM-P)
Greasing after assembling pin: Grease
- (LM-G)
A When aligning the position of the pin hole,
never insert your fingers in the pin hole.
j, Adjust the shim thickness so that the clearance
between cylinder boom (6) and bracket (7) is
below 1 mm.
j, Standard shim thickness: 0.8 mm, 1.5 mm
Refilling with oil (hydraulic tank)
* Add oil through the oil filler to the specified
level. Run the engine to circulate the oil through
the system. Then check the oil level again.
Bleeding air
* Bleed the air from the cylinder. For details, see
TESTING AND ADJUSTING, Bleeding air from
hydraulic cylinder.
30-138
