TESTING AND ADJUSTING

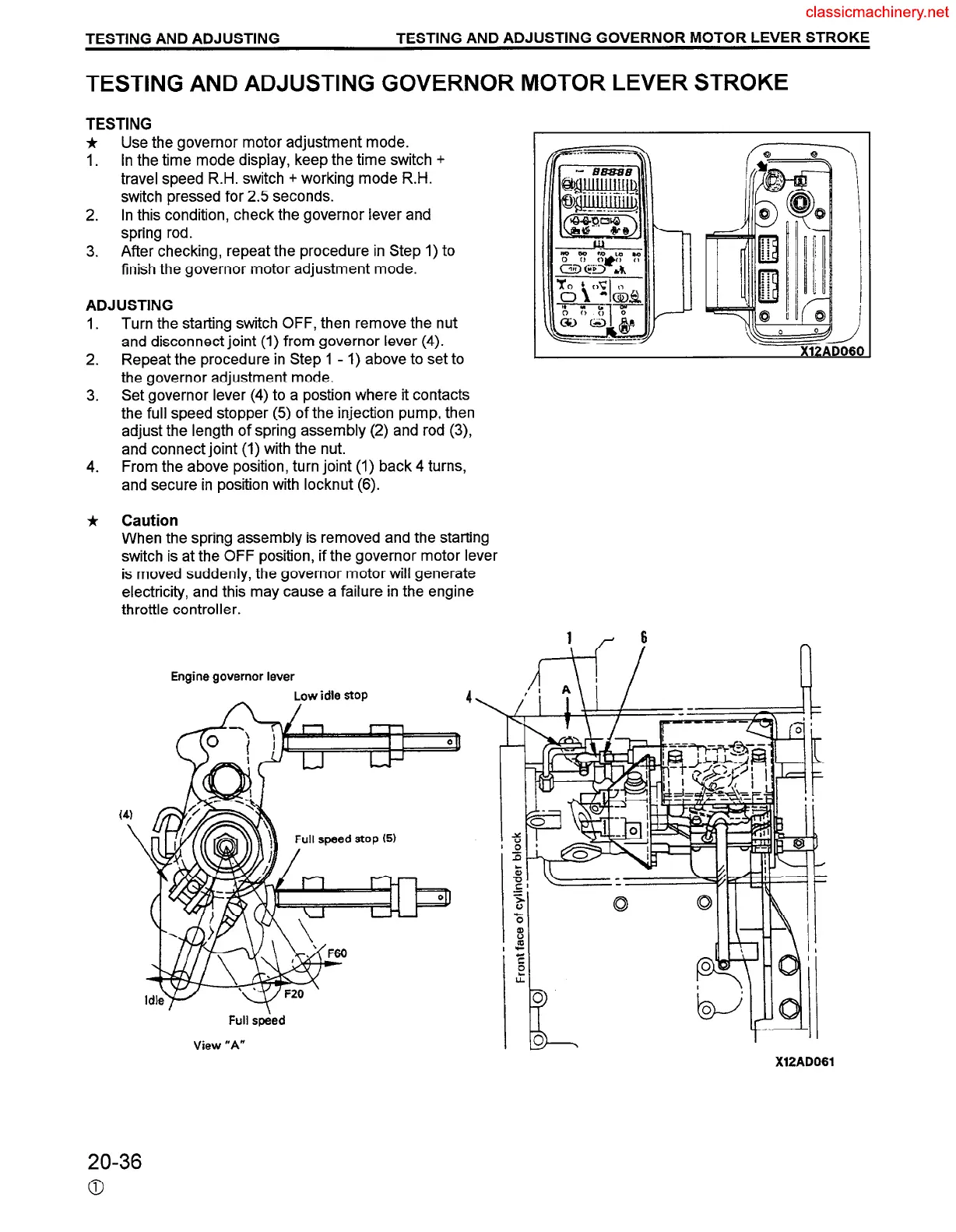

TESTING AND ADJUSTING GOVERNOR MOTOR LEVER STROKE
TESTING AND ADJUSTING GOVERNOR MOTOR LEVER STROKE
TESTING
*
Use the governor motor adjustment mode.
1.
In the time mode display, keep the time switch +
travel speed R.H. switch + working mode R.H.
switch pressed for 2.5 seconds.
2.
In this condition, check the governor lever and
spring rod.
3.
After checking, repeat the procedure in Step 1) to
finish the governor motor adjustment mode.
ADJUSTING
1.
Turn the starting switch OFF, then remove the nut
and disconnect joint (1) from governor lever (4).
2. Repeat the procedure in Step 1 - 1) above to set to
the governor adjustment mode.
3.
Set governor lever (4) to a postion where it contacts
the full speed stopper (5) of the injection pump, then
adjust the length of spring assembly (2) and rod (3),
and connect joint (1) with the nut.
4.
From the above position, turn joint (1) back 4 turns,
and secure in position with locknut (6).
*
Caution
When the spring assembly is removed and the starting
switch is at the OFF position, if the governor motor lever
is moved suddenly, the governor motor will generate
electricity, and this may cause a failure in the engine
throttle controller.
Engine governor lever
Low idle stop
Full s@ed
View “A”
L
I-
I
X12AD061
20-36
a
