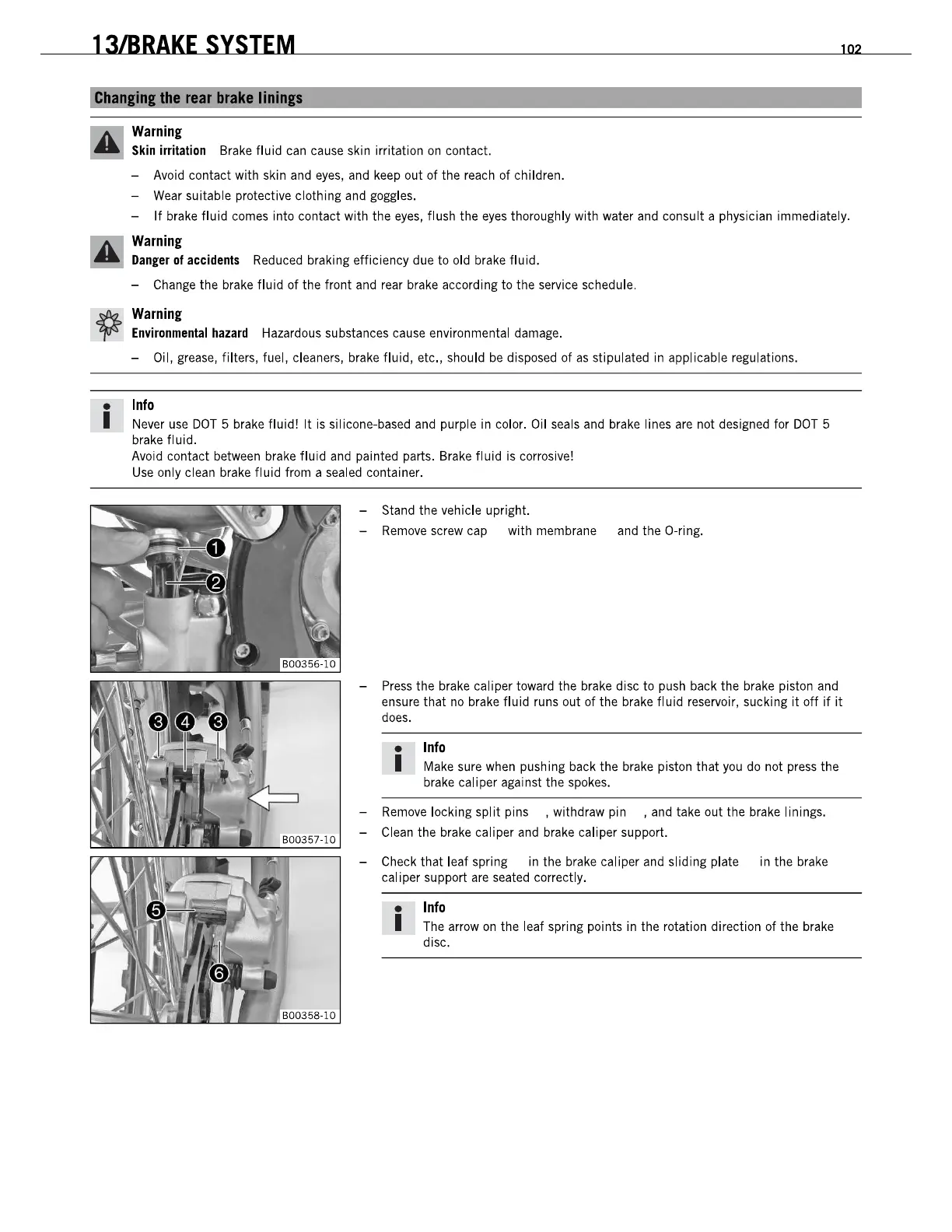

13/BRAKE
SYSTEM
102
Cbanlinllhe
rear
brake
lininp-
Warning
Skin
irritation
Brake fluid can cause skin irritation
on
contact.
- Avoid contact with skin and
eyes,
and
keep out
of
the
reach
of
children.
-
Wear
suitable protective clothing and goggles.
- If brake fluid comes into contact with the
eyes,
flush the
eyes
thoroughly with water and consult a physician immediately.
Warning
Danler
of
accidents
Reduced braking efficiency due to old brake fluid.
- Change the brake fluid
of
the front and rear brake according
to
the service schedule.
Warning
Environmental
hazard
Hazardous
substances
cause
environmental
damage.
- Oil,
grease,
filters, fuel, cleaners, brake fluid, etc., should
be
disposed of
as
stipulated in applicable regulations.
•
Info
I Never use
DOT
5 brake fluid!
It
is
silicone-based and purple in color. Oil seals and brake lines
are
not designed for
DOT
5
brake fluid.
Avoid contact between brake fluid and painted parts. Brake
fluid
is corrosive!
Use
only clean brake fluid from a sealed container.
- Stand the vehicle upright.
-
Remove
screw cap with membrane and the a-ring.
-
Press
the brake caliper toward the brake disc to push back the brake piston and
ensure that
no
brake fluid runs out of the brake fluid reservoir, sucking
it
off
if it
does.
•
Info
I Make sure when pushing back the brake piston that
you
do
not press the
brake caliper against the spokes.
-
Remove
locking
split
pins
,withdraw
pin
,and
take out the brake linings.
- Clean the brake caliper and brake caliper support.
- Check that leaf spring in the brake caliper and sliding plate in the brake
caliper support
are
seated correctly.
•
Info
I The arrow
on
the leaf spring points in the rotation direction
of
the brake
disc.
To Next Page
