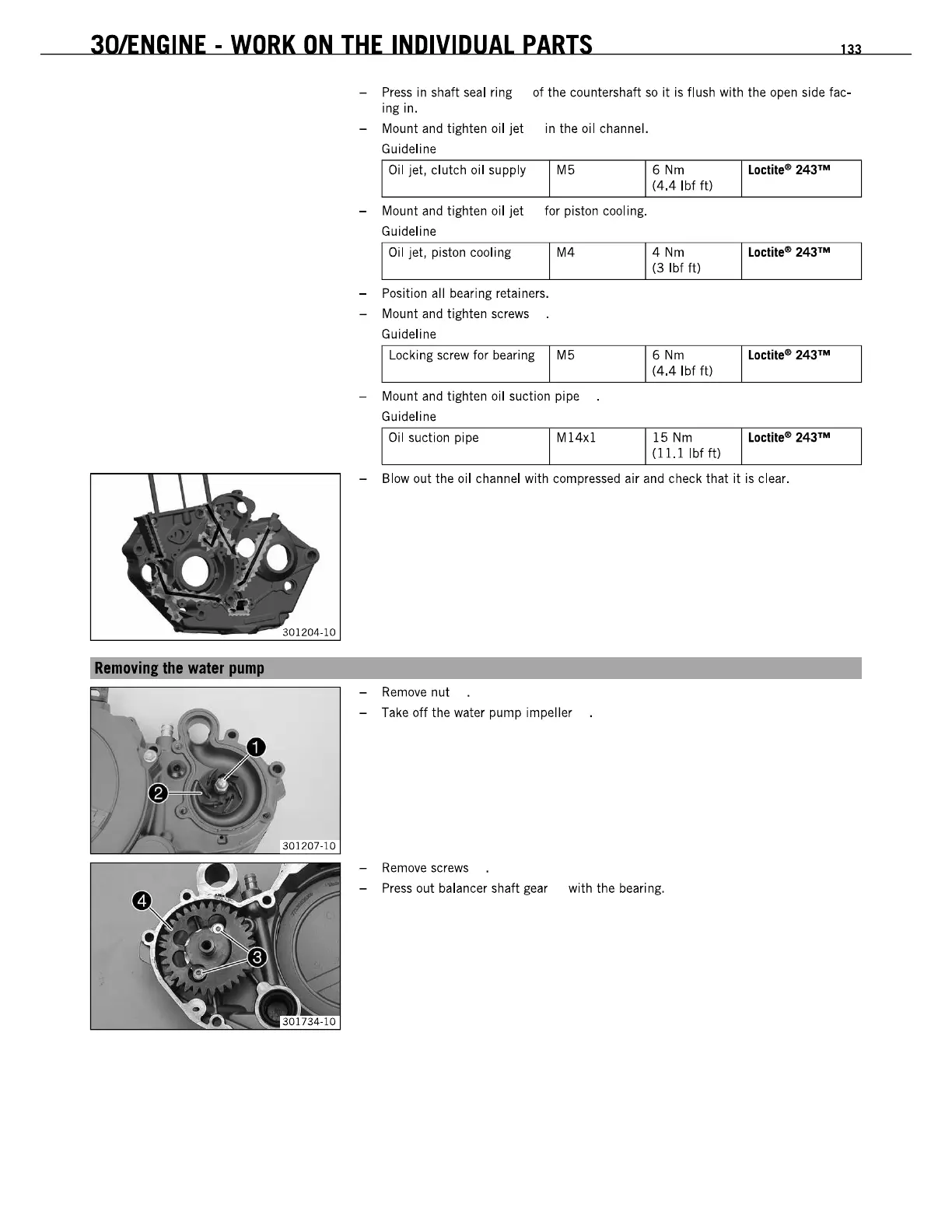

301ENGINE - WORK ON THE INDIVIDUAL PARTS 133
- Press in shaft seal ring of the countershaft so it is flush with the open side fac-
ing in.
- Mount and tighten oil jet
in the oil channel.
Guideline
Oil jet, clutch oil supply
-
Mou nt and tighten oi I jet
Guideline
Oil jet, piston cooling
M5
for piston cooling.
M4
- Position all bearing retainers.
- Mount and tighten
screws
Guideline
Locking screw for bearing M5
- Mount and tighlen oil suction pipe
Guideline
Oil suction pipe M14x1
6 Nm
(4.4 Ibf ft)
4 Nm
(3 Ibf It)
6Nm
(4.4 Ibf It)
15 Nm
(11.1 Ibf ft)
Loclile- 243'"
Loctile- 243'"
Loctile- 243'"
Loclile- 243'"
- Blowout the oil channel with compressed air and check that it is clear.
-
Remove nul
-
Take off the water pump impeller
- Remove screws
- Press oul balancer shaft gear wilh the bearing.
