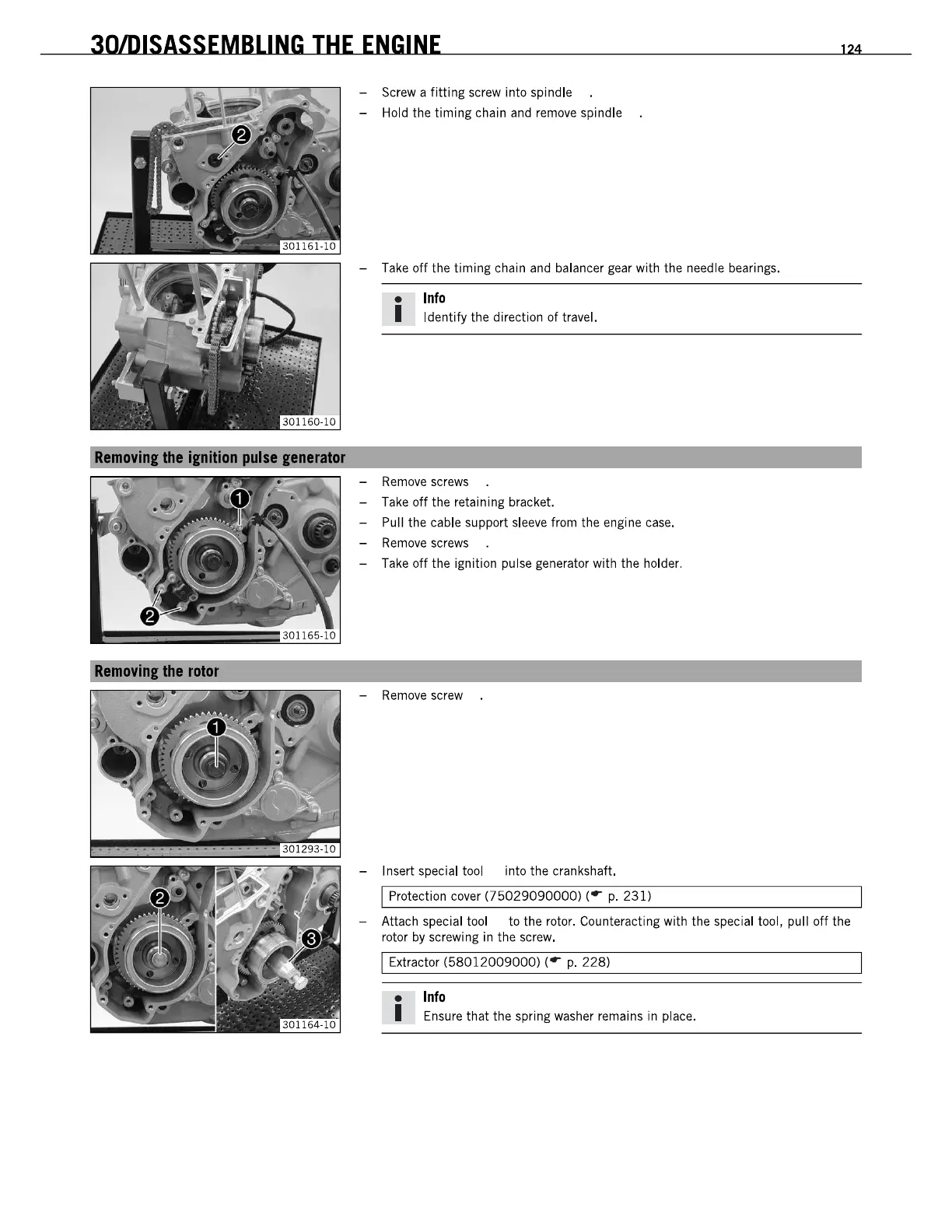

301DISASSEMBLING

THE

ENGINE

124

- Screw a fitting screw into spindle

- Hold the

timing

chain

and

remove spindle

- Take

off

the

timing

chain and balancer gear with the needle bearings.

•

Info

I Identify the direction of travel.

Remove

screws

- Take

off

the retaining bracket.

- Pull the cable support sleeve from the engine

case.

Remove

screws

- Take

off

the ignition pulse generator with the holder.

Remove

screw

- Insert special tool into the crankshaft.

I Protection cover

(75029090000)

(

...

231)

- Attach special tool

the rotor. Counteracting with the special tool, pull

off

the

rotor by screwing in the screw.

I Extractor

(58012009000)

(

...

228)

•

Info

I Ensure that the spring washer remains

place.
