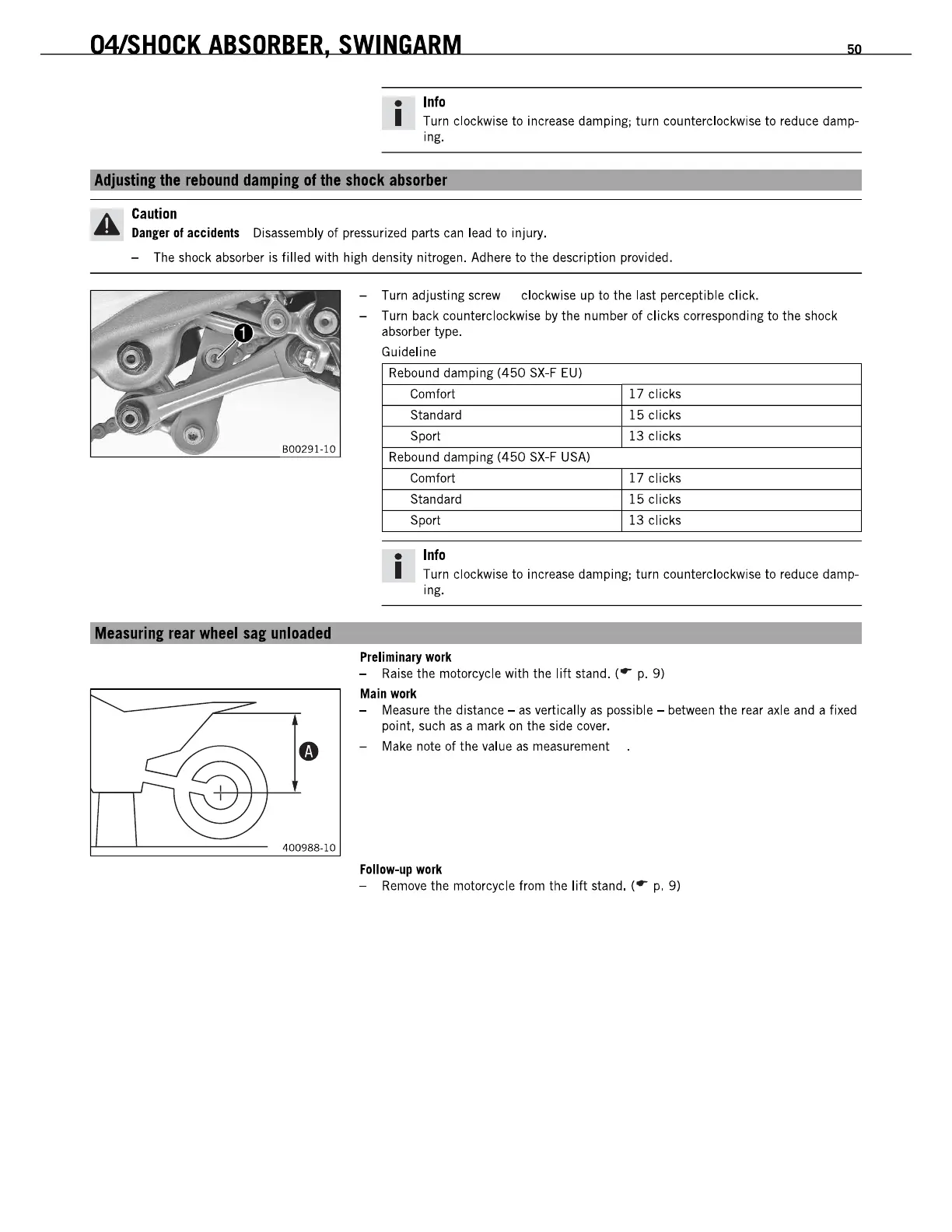

04LSHOCK
ABSORBER,
SWINGARM
50
•
Info
I Turn clockwise to increase damping; turn counterclockwise
to
reduce damp-
ing.
the
rebound
dampinl
of
tile
shock
absortler
Caution
Danler
of
accidents
Disassembly
of
pressurized parts can lead to injury.
- The shock absorber is filled with high density nitrogen. Adhere
to
the description provided.
Mlasurinl
rear
wheel
III
unloaded
I-
+-If-+-t---'-
400986-10
- Turn adjusting screw clockwise up to the last perceptible click.
- Turn back counterclockwise by the number of clicks corresponding
to
the shock
absorber type.
Guideline
Rebound damping
(450
SX-F EU)
Comfort
17
clicks
Standard
15
clicks
Sport
13
clicks
Rebound damping
(450
SX-F USA)
Comfort
17
clicks
Standard
15
clicks
Sport
13
clicks
•
Info
I Turn clockwise to increase damping; turn counterclockwise
to
reduce damp-
ing.
Preliminary
work
- Raise the motorcycle with the
lift
stand. (or
p.
9)
Main
work
- Measure the distance -
as
vertically
as
possible - between the rear axle and a fixed
point, such
as
a mark
on
the side cover.
- Make note of the value
as
measurement
Follow-up
work
- Remove the motorcycle from the
lift
stand. (or
p.
9)
To Next Page
