Ol/FORK,
TRIPLE
CLAMP
201159-10
201160-11
Assamblinllha
cartrid
•
Info
31
-
Mou
nt spri
ng

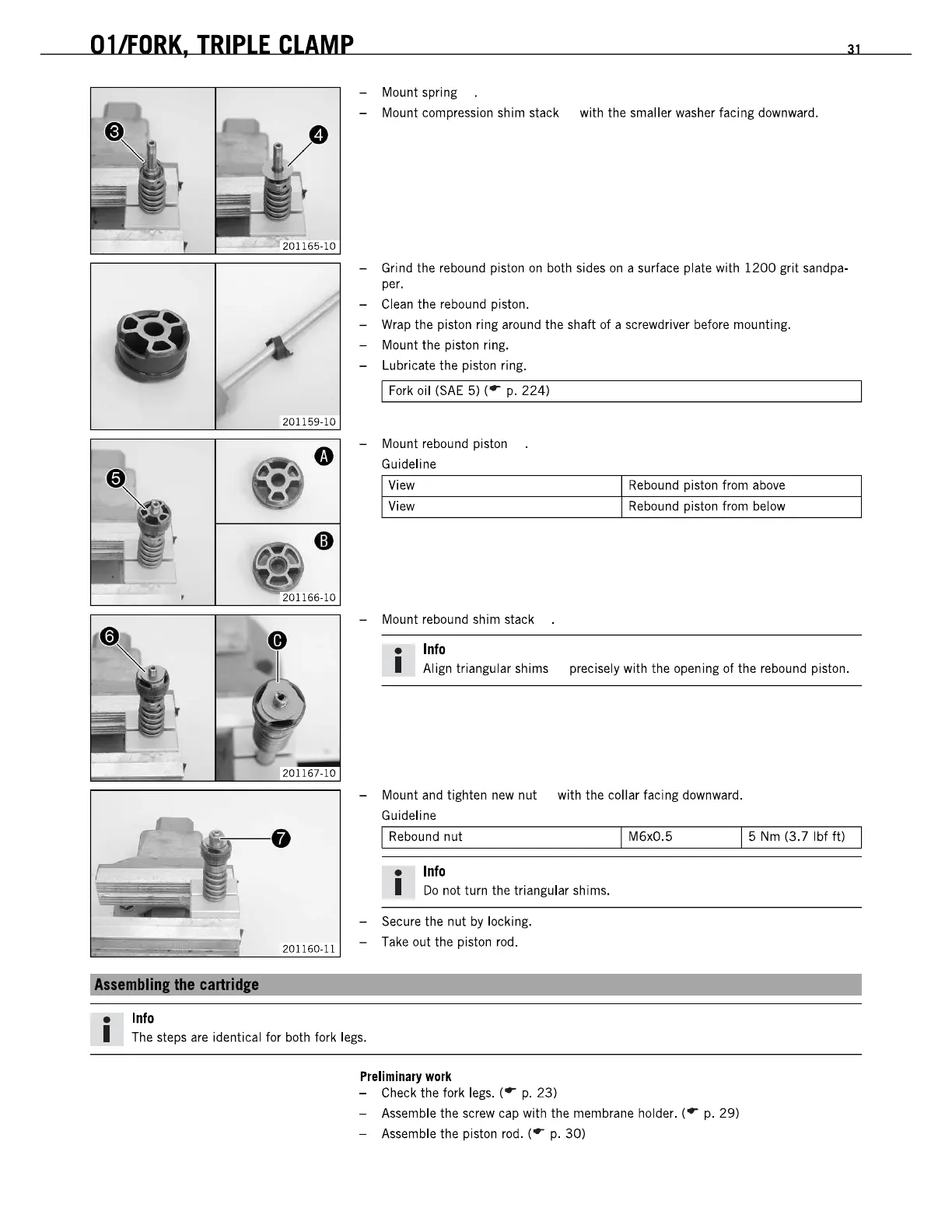

- Mount compression shim stack with the smaller washer facing downward.
- Grind the rebound piston
on
both sides
on
a surface plate with
1200
grit sandpa-
per.
- Clean the rebound piston.
- Wrap the piston ring around the shaft of a screwdriver before mounting.
- Mount the piston ring.
- Lubricate the piston ring.
1 Fork oil
(SAE
5) (or
p.
224)
-
Mou
nt rebou
nd
piston
Guideline
View
View
- Mount rebound shim stack
•
Info
Rebound piston from above
Rebound piston from below
I Align triangular shims precisely with the opening of the rebound piston.
- Mount and tighten
new
nut with the collar facing downward.
Guideline
1 Rebound nut
1
M6xO.5
15
Nm
(3.7 Ibf
ft)
•
Info
I
Do
not turn the triangular shims.
- Secure the nut
by
locking.
- Take out the piston rod.
I The steps are identical for both fork
legs.
Preliminary
work
- Check the fork
legs.
(
or
p.
23)
- Assemble the screw cap with the membrane holder. (or
p.
29)
- Assemble the piston rod. (
or
p.
30)
