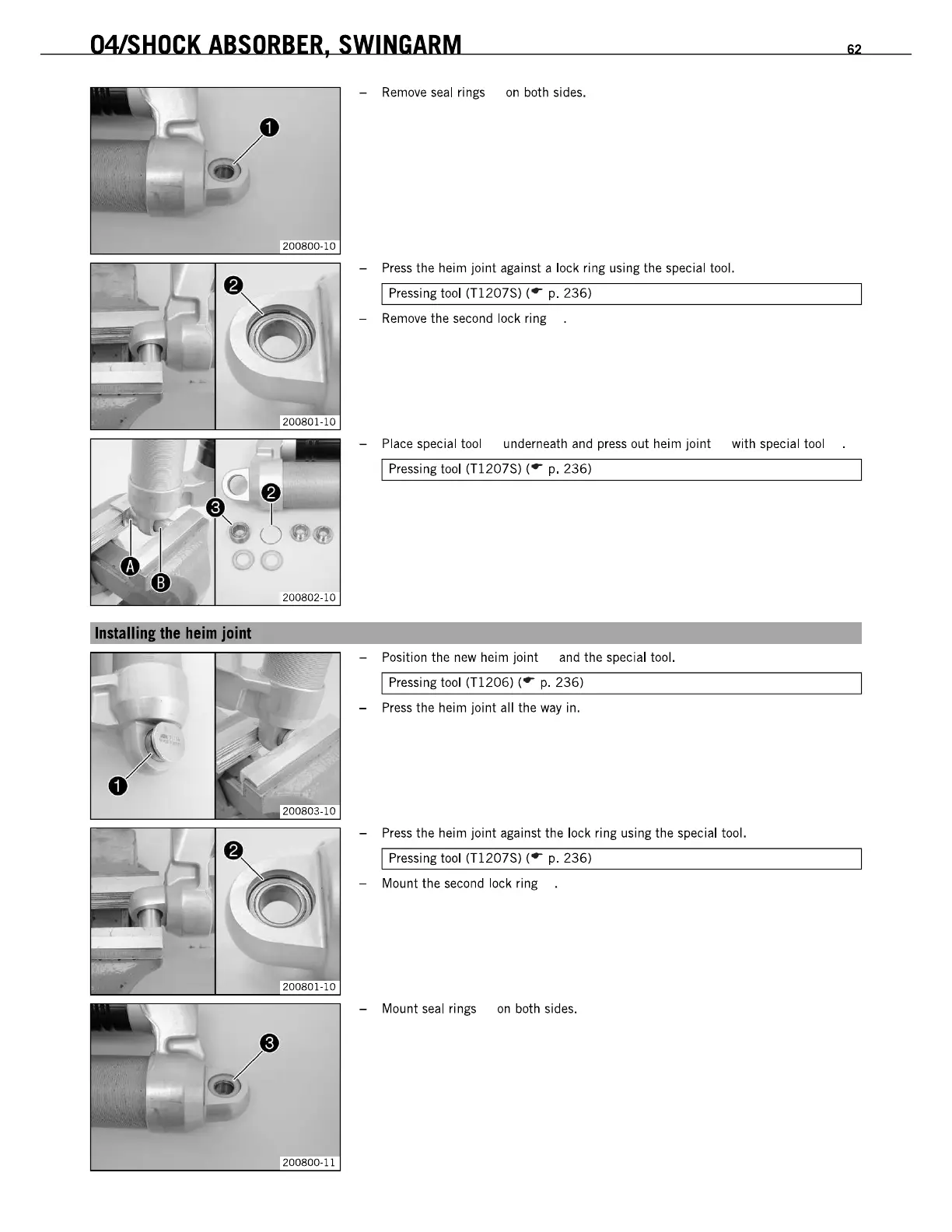

04LSHOCK

ABSORBER,

SWINGARM

62

-

Remove

seal

rings

on

both sides.

-

Press

the heim joint against a lock ring using the special tool.

I Pressing tool

(Tl2078)

(

..

p.

236)

-

Remove

the

second

lock

ri

ng

.

-

Place

special tool underneath

and

press

out heim joint with special

tool.

I Pressing tool

(Tl2078)

(

..

p.

236)

- Position the

new

heim

joint

and

the special tool.

I Pressing tool

(Tl206)

(

..

p.

236)

-

Press

the heim joint all the

way

in.

-

Press

the heim joint against the lock ring using the special tool.

I Pressing tool

(Tl2078)

(

..

p.

236)

- Mount the

second

lock ring .

- Mount

seal

rings

on

both sides.
