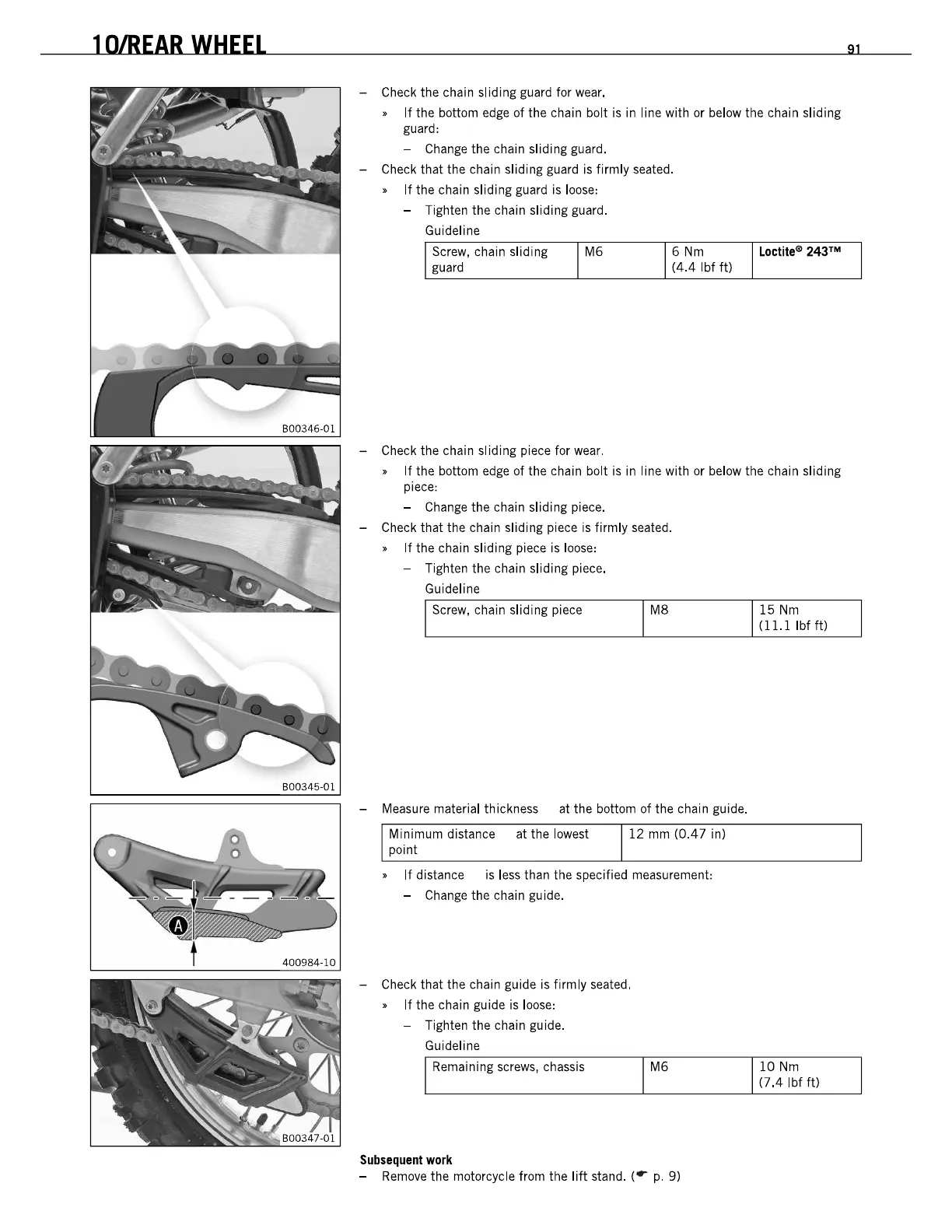

lO/REAR
WHEEL
- Check the chain sliding guard for wear.
•
If
the bottom edge of the chain bolt is in line with or below the chain sliding
guard:
- Change
the
chain sliding guard.
- Check
that
the
chain sliding guard is firmly seated.
•
If
the chain sliding guard is loose:
- Tighten the chain sliding guard.
Guideline
Screw, chain sliding
guard
M6
- Check the chain sliding piece for wear.
6 Nm
(4.4 Ibf
It)
Loctile-
243'"
•
If
the bottom edge of the chain bolt is in line with or below the chain sliding
piece:
- Change
the
chain sliding piece.
- Check
that
the
chain sliding piece
is
firmly seated.
•
If
the chain sliding piece
is
loose:
- Tighten the chain sliding piece.
Guideline
Screw, chain sliding piece
M8
- Measure material thickness
at
the
bottom
of
the
chain guide.
Minimum distance at the lowest
12 mm (0.47 in)
point
•
If
distance is less than
the
specified measurement:
- Change
the
chain guide.
- Check
that
the
chain guide
is
firmly seated.
•
If
the chain guide
is
loose:
- Tighten the chain guide.
Guideline
Remaining
screws,
chassis
Subslquent
work
M6
- Remove
the
motorcycle from the
lilt
stand. (
--
p.
9)
15
Nm
(1Ll
Ibf
It)
10
Nm
(7.4 Ibf
It)
91
