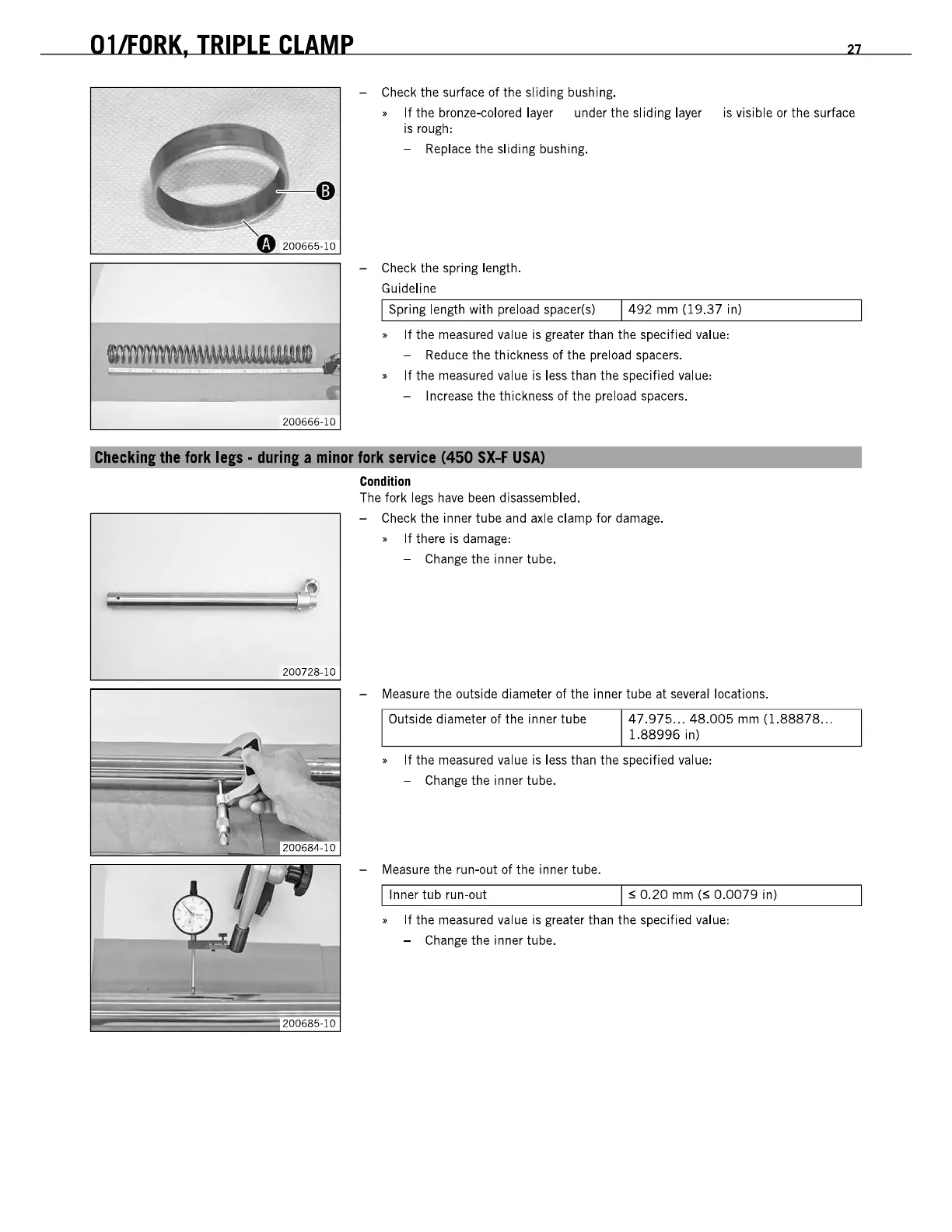

Ol/FORK, TRIPLE CLAMP
200665-10
20066&-10
27
- Check the surface of the sliding bushing.
•
If the bronze-colored layer under the sliding layer is visible or the surface
is rough:
- Replace the sliding bushing.
- Check the spring length.
Guideline
I Spring length with preload spacer(s) 1492 mm (19.37 in)
•
If the measured value is greater than the specified value:
- Reduce the thickness of the preload spacers.
•
If the measured value is less than the specified value:
- Increase the thickness of the preload spacers.
Cbeckin& the fork 1m - durin& a minor fork service (450 SX-F USA)
20072IHO
200685-10
Condition
The fork legs have been disassembled.
- Check the inner tube and axle clamp for damage.
•
If there is damage:
- Change the inner tube.
- Measure the outside diameter of the inner tube at several locations.
Outside diameter
of the inner tube
47.975 ... 48.005 mm (1.88878 ...
1.88996 in)
•
If the measured value is less than the specified value:
- Change the inner tube.
- Measure the run-<lut
of the inner tube.
I Inner tub run-out I S 0.20 mm (S 0.0079 in)
•
If the measured value is greater than the specified value:
- Change the inner tube.
