KTM 450 SX-F EU Repair Manual

 

 

 
 

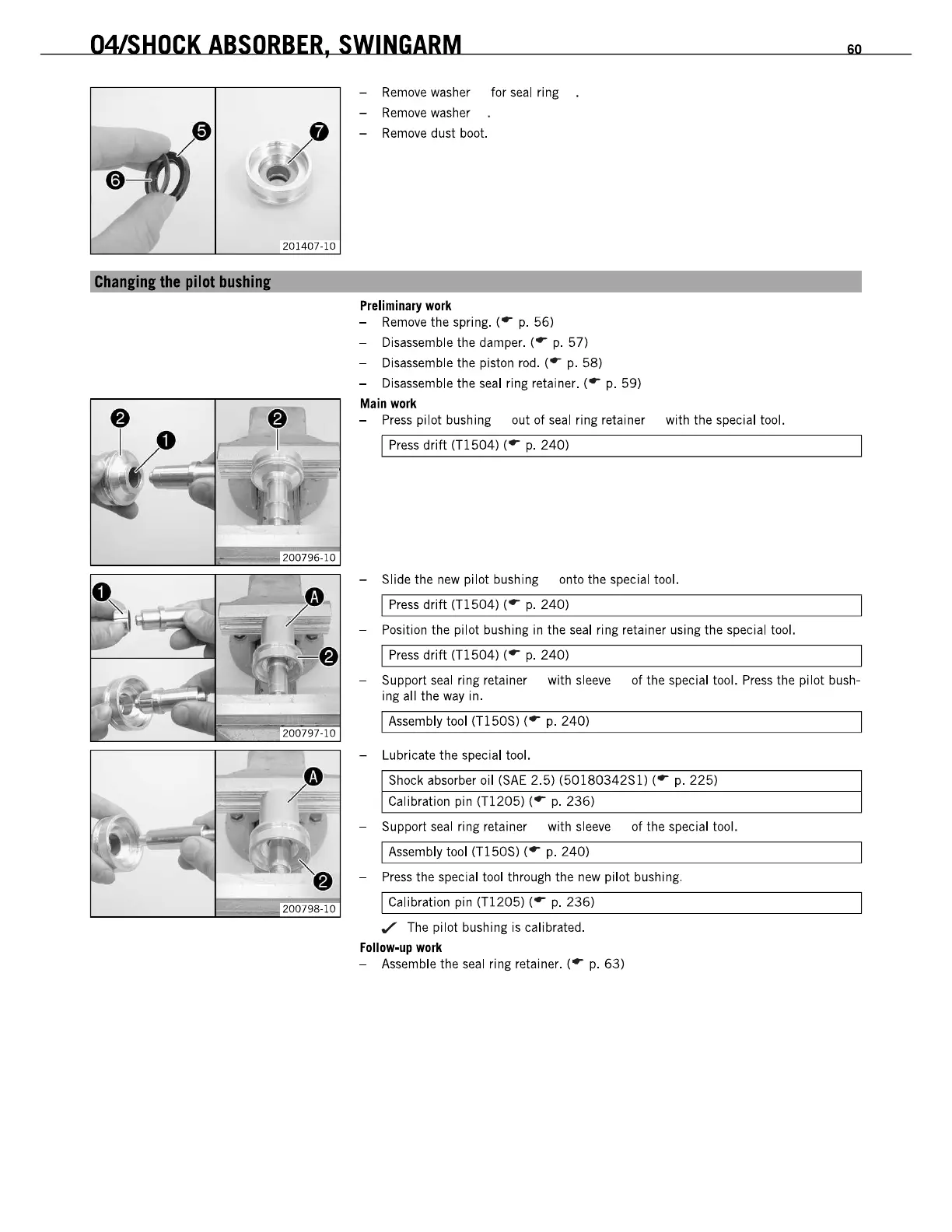

04LSHOCK ABSORBER, SWINGARM 60
- Remove washer for seal ring
- Remove washer
- Remove dust boot.
0)-
201407-10
ChanKinK the pilot bushinK
Preliminary work
- Remove the spring. ( -- p. 56)
- Disassemble the damper. (
-- p. 57)
- Disassemble the piston
rod. ( -- p. 58)
- Disassemble the
seal ring retainer. ( -- p. 59)
Main work
- Press pilot bushing out of seal ring retainer with the special tool.
I Press drift (Tl504) ( -- p. 240)
- Slide the
new pilot bushing onto the special tool.
I Press drift (Tl504) ( -- p. 240)
Position the pilot bushing
in the seal ring retainer using the special tool.
I Press drift (Tl504) ( -- p. 240)
- Support
seal ring retainer with sleeve of the special tool. Press the pilot bush-
ing all the
way in.
I Assembly tool (Tl50S) ( -- p. 240)
- Lubricate the special tool.
Shock absorber oil
(SAE 2.5) (50180342S1) ( -- p. 225)
Calibration pin
(Tl205) ( -- p. 236)
- Support
seal ring retainer with sleeve of the special tool.
I Assembly tool (Tl50S) ( -- p. 240)
-
Press the special tool through the new pilot bushing.
200798-10
I Calibration pin (Tl205) ( -- p. 236)
./ The pilot bushing is calibrated.
Follow-up work
- Assemble the seal ring retainer. ( -- p. 63)
