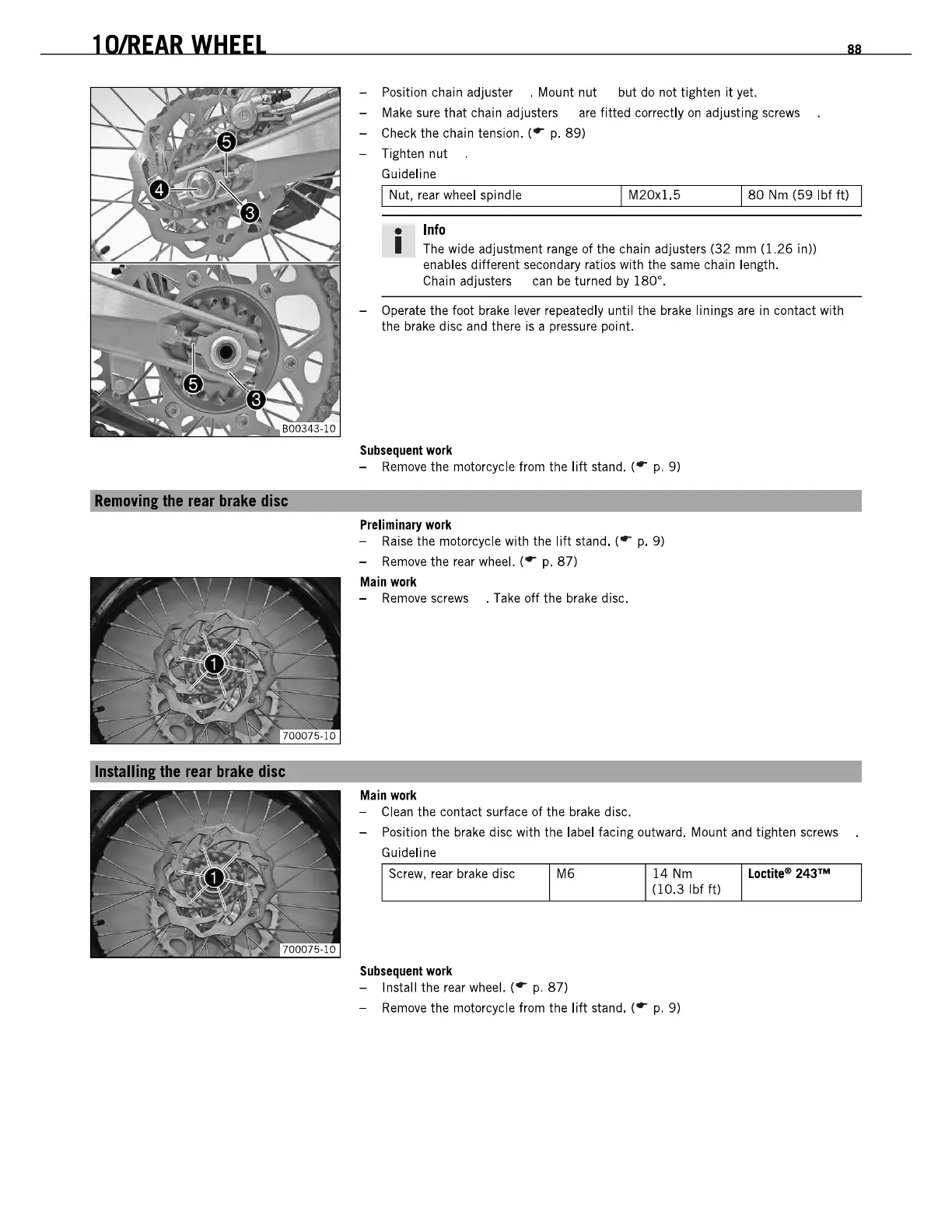

1
O/REAR
WHEEL
88
RemDYinl
til. I8lIr
brak.
disc
- Position chain adjuster . Mount nut but
do
not tighten
it
yet.
- Make sure that chain adjusters
are
fitted correctly
on
adjusting screws
- Check the chain tension.
(
eo
p.
89)
- Tighten nut
Guideline
I Nut, rear wheel spindle
I M20x1.5
180
Nm
(59 Ibf ft)
•
Info
I The wide adjustment range of the chain adjusters
(32
mm
(1.26
in))
enables different secondary ratios with the same chain length.
Chain adjusters can
be
turned by
180·.
- Operate the foot brake lever repeatedly until the brake linings
are
in contact with
the brake disc and there
is
a pressure point.
Subsequent
work
-
Remove
the motorcycle from the
lift
stand. (
eo
p.
9)
Preliminary
work
-
Raise
the motorcycle with the
lift
stand. (
eo
p.
9)
-
Remove
the rear wheel. (eo p. 87)
Main
work
-
Remove
screws . Take
off
the brake disc.
Main
work
- Clean the contact surface of the brake disc.
- Position the brake disc with the label facing outward. Mount and tighten screws
Guideline
Screw, rear brake disc M6
Subsequent
work
- Install the rear wheel. (eo
p.
87)
14
Nm
(10.3
Ibf
It)
-
Remove
the motorcycle from the
lift
stand. (
eo
p.
9)
Loctit'"
243
111
