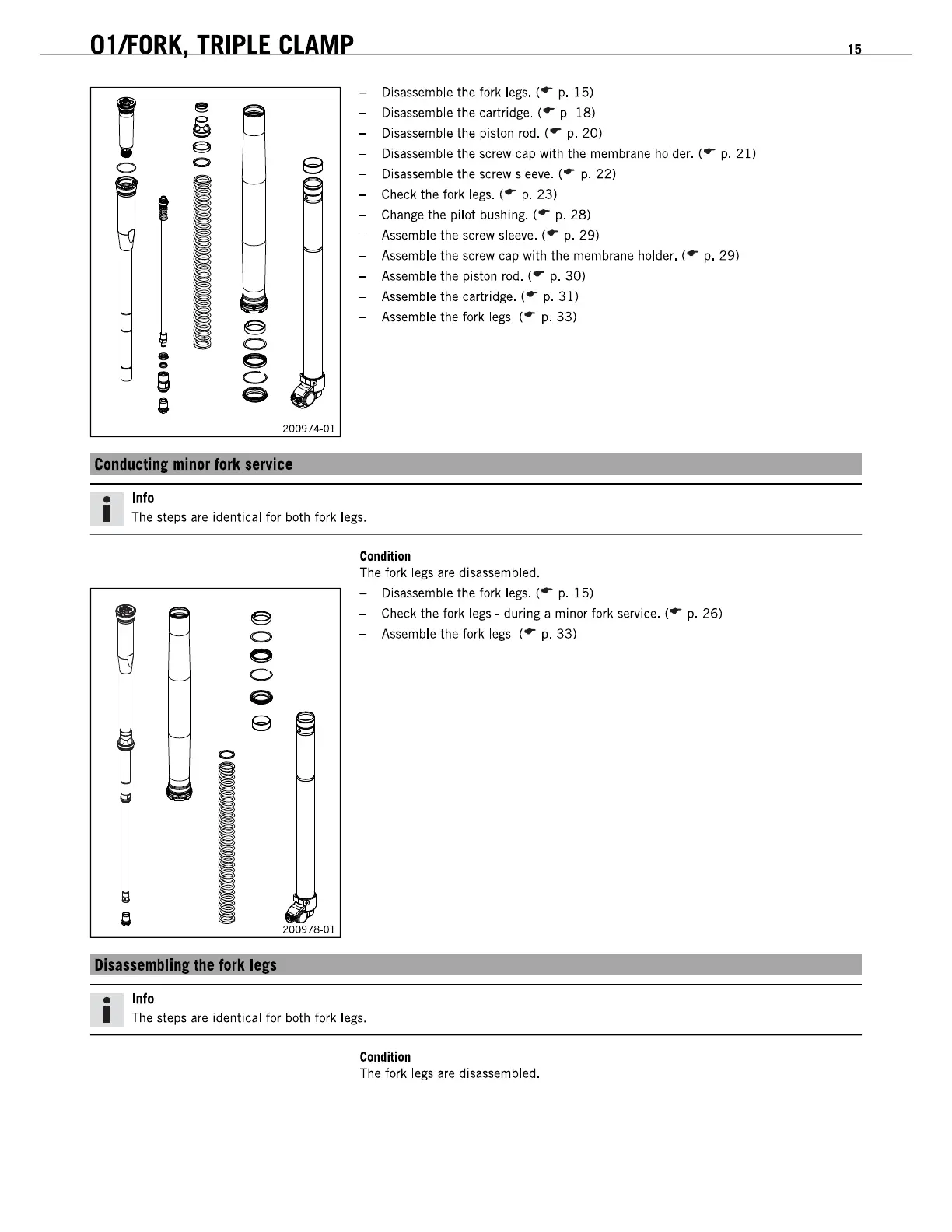

KTM 450 SX-F EU Repair Manual

Ol/FORK, TRIPLE CLAMP
o
..
..
9
e
200974-01
Conductinl minor forti slrvicI
• Info
- Disassemble the fork legs. ( .. p. 15)
- Disassemble the cartridge. ( .. p. 18)
- Disassemble the piston rod. ( .. p. 20)
- Disassemble the screw cap with the membrane holder. ( .. p. 21)
- Disassemble the screw sleeve. ( ... p. 22)
- Check the fork legs. ( .. p. 23)
- Change the pilot bushing. ( .. p. 28)
- Assemble the screw sleeve. ( .. p. 29)
- Assemble the screw cap with the membrane holder. ( .. p. 29)
- Assemble the piston rod. ( .. p. 30)
- Assemble the cartridge. ( .. p. 31)
- Assemble the fork legs. ( .. p. 33)
I The steps are identical for both fork legs.
o
§
<0
.0
o
e
8
Disasslmblinl tltl forti I
• Info
Condition
The fork legs are disassembled.
- Disassemble the fork legs. ( .. p. 15)
- Check the fork legs - during a minor fork service. ( .. p. 26)
- Assemble the fork legs. ( .. p. 33)
200978-01
I The steps are identical for both fork legs.
Condition
The fork legs are disassembled.
15
