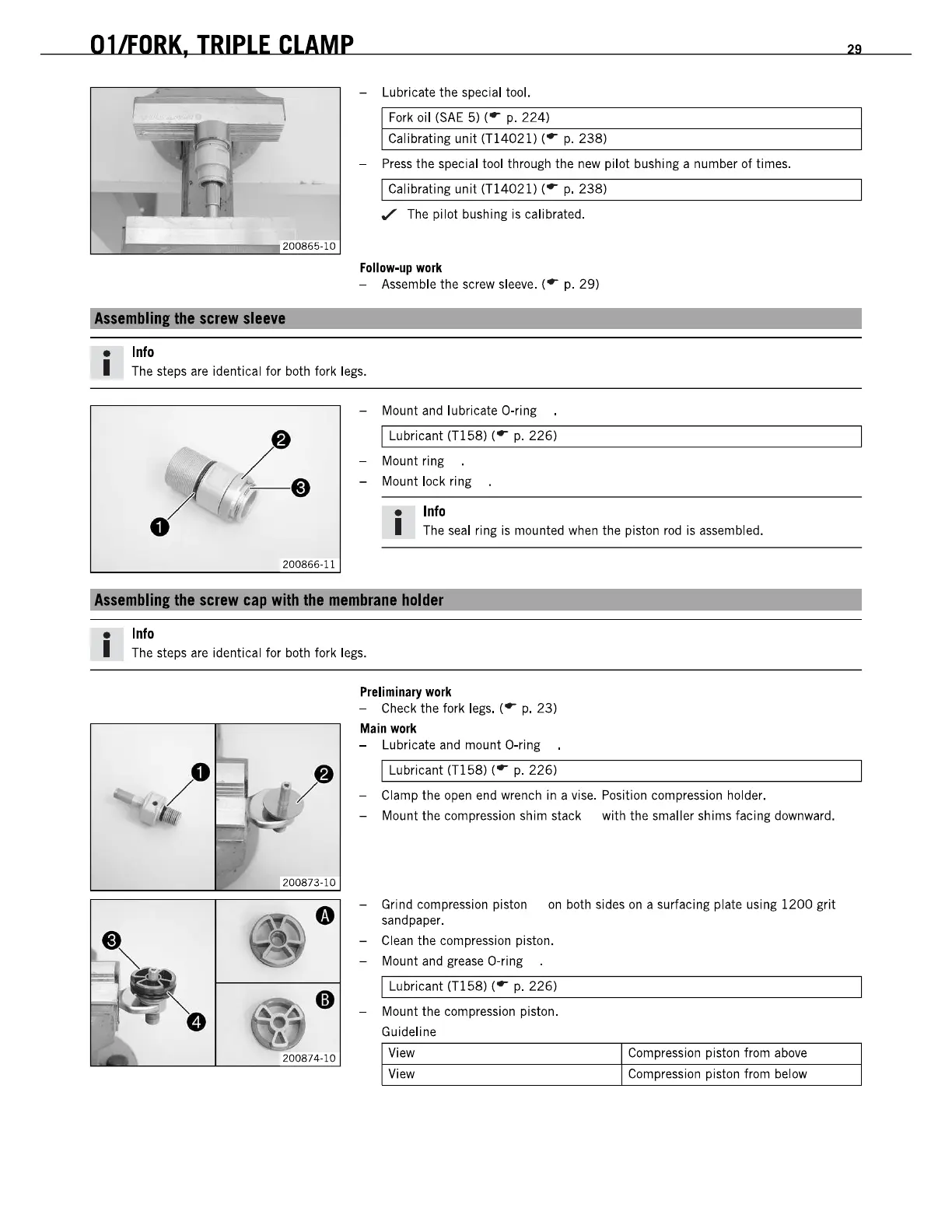

Ol/FORK,
TRIPLE
CLAMP
29
- Lubricate the special tool.
Fork
oil
(SAE
5) (
--
p.
224)
Calibrating unit
(Tl4021)
(
--
p.
238)
-
Press
the special tool through the
new
pilot bushing a number of times.
I Calibrating unit
(Tl4021)
(
--
p.
238)
,/
The pilot bushing is calibrated.
Follow-up
work
- Assemble the screw sleeve. (
--
p.
29)
Assemblinl
tIIa
screw
sleave
•
Info
I The steps are identical for both fork
legs.
- Mount and lubricate
O-ring.
I Lubricant
(Tl58)
(
--
p.
226)
- Mount ring .
-
Mou
nt lock
ri
ng
•
Info
I The
seal
ring
is
mounted when the piston
rod
is assembled.
20086&-11
Assembllnl
tile
screw
caP.
with
the
membrane
holder
•
Inlo
I The steps are identical for both fork
legs.
Preliminary
work
- Check the fork
legs.
(
--
p.
23)
Main
work
- Lubricate
and
mount
O-ring.
I Lubricant
(Tl58)
(
--
p.
226)
- Clamp the
open
end
wrench
in
a vise. Position compression holder.
- Mount the compression shim stack with the smaller shims facing downward.
200873-10
- Grind compression piston
on
both sides
on
a surfacing plate using
1200
grit
sandpaper.
-
Clean
the compression piston.
-
Mou
nt and
grease
O-ri
ng
I Lubricant
(Tl58)
(
--
p.
226)
- Mount the compression piston.
Guideline
View Compression piston from
above
View Compression piston from below
