KTM 450 SX-F EU Repair Manual







 


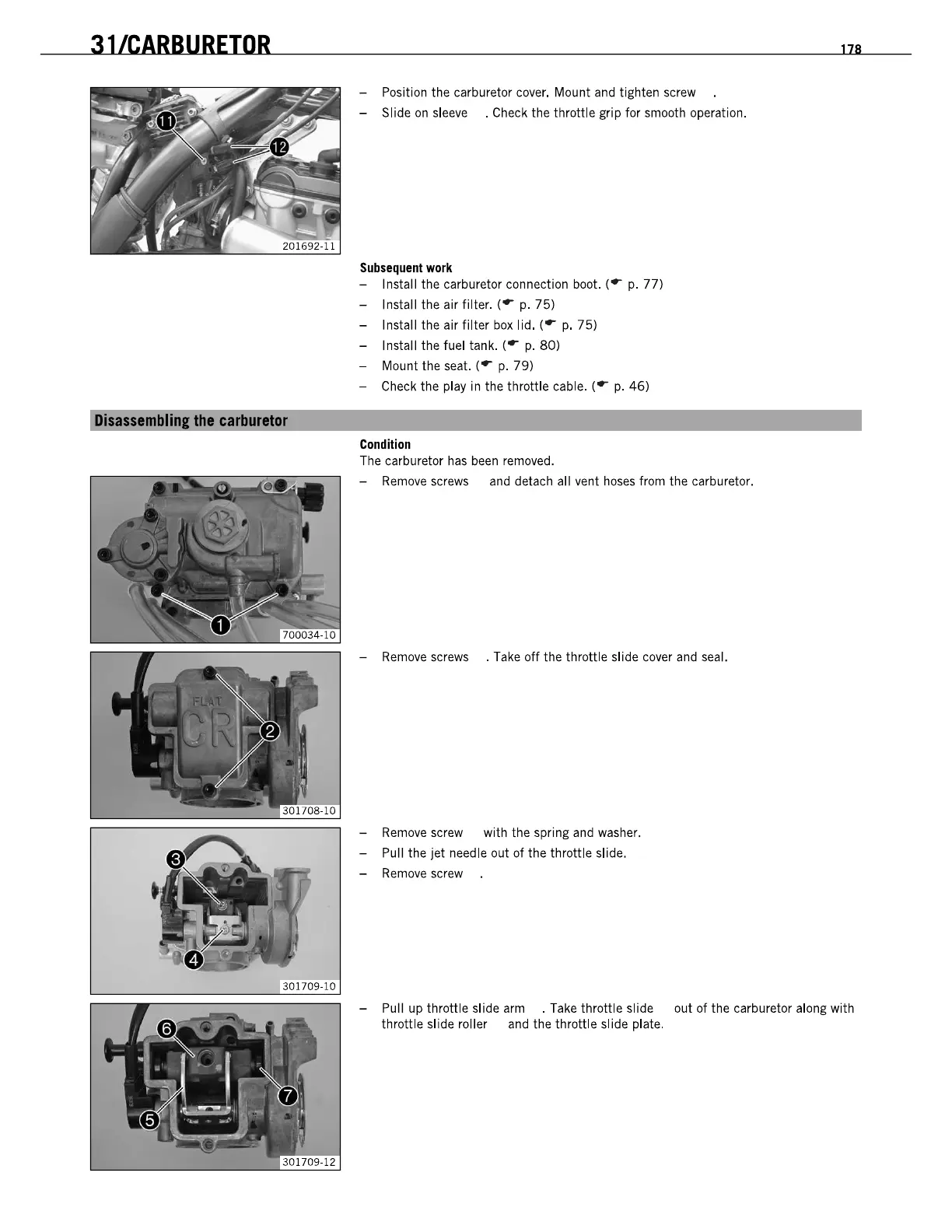

31/CARBURETOR 178
- Position the carburetor cover. Mount and tighten screw
- Slide
on sleeve . Check the throttle grip for smooth operation.
Subsequent work
- Install the carburetor connection boot. ( ... p. 77)
- Install the air filter. ( ... p. 75)
- Install the air filter box lid. ( ... p. 75)
- Install the fuel tank. (
... p. 80)
- Mount the seat. ( ... p. 79)
- Check the play in the throttle cable. ( ... p. 46)
Disassamblinl tIIa carburetor
Condition
The carburetor has been removed.
-
Remove screws and detach all vent hoses from the carburetor.
-
Remove screws . Take off the throttle slide cover and seal.
-
Remove screw with the spring and washer.
- Pull the jet needle out of the throttle slide.
- Remove screw
- Pull up throttle slide arm . Take throttle slide out of the carburetor along with
throttle slide roller
and the throttle slide plate.
