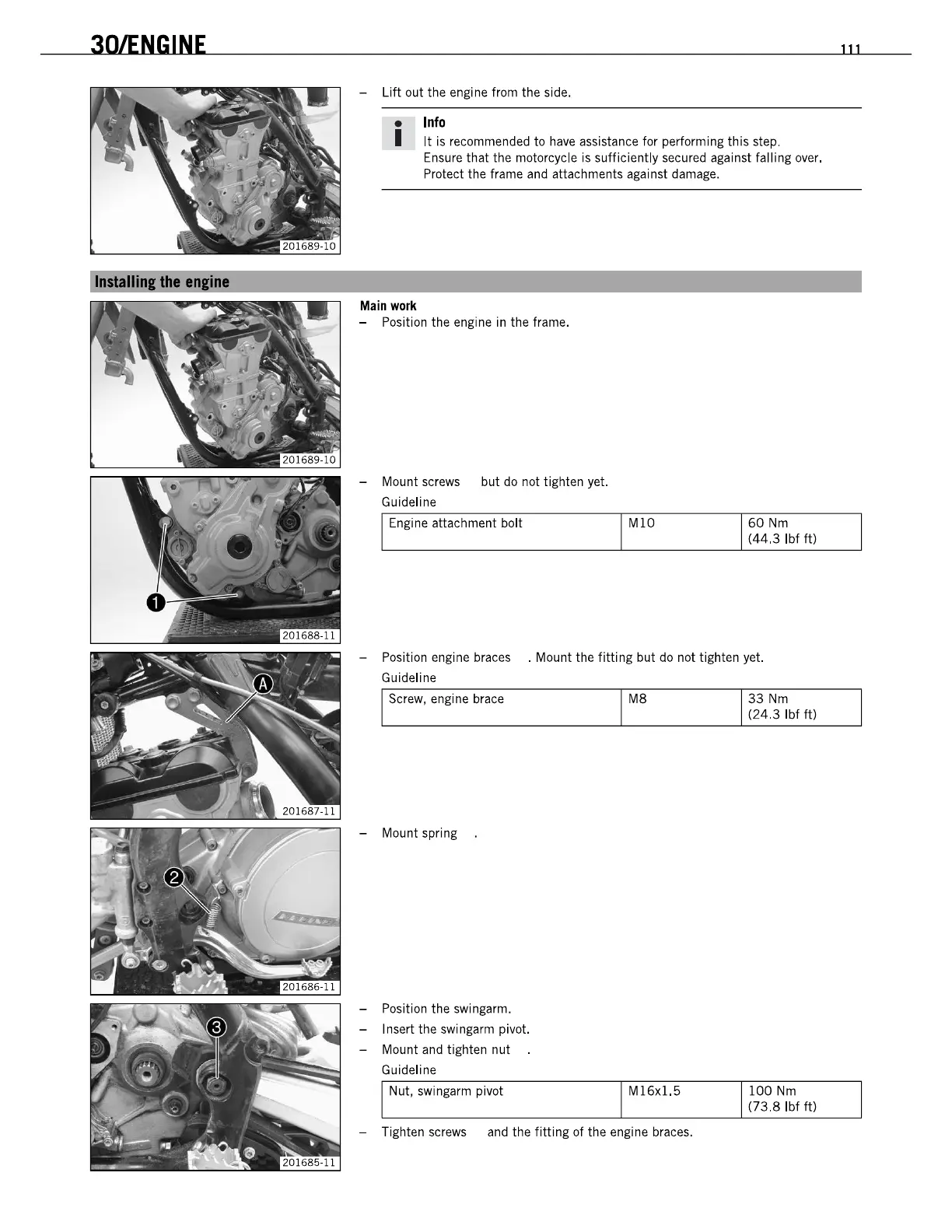

301ENGINE
- Litt out the engine from the side.
•
Info
I
It
is recommended
to
have
assistance for performing this step.
Ensure that the motorcycle is sufficiently secured against falling over.
Protect the frame and attachments against damage.
Main
work
- Position the engine in the frame.
- Mount screws but
do
not tighten yet.
Guideline
Engine attachment bolt
M10
60
Nm
(44.3 Ibf tt)
- Position engine braces . Mount the
fitting
but
do
not tighten yet.
Guideline
I Screw, engine brace
-
Mou
nt spri
ng
- Position the swingarm.
- I nserl the swi ngarm pivot.
- Mount and tighten nut
Guideline
Nut, swingarm pivot M16x1.5
- Tighten screws and the
fitting
of
the engine braces.
133
Nm
~24.3
Ibf tt)
100
Nm
(73.8
Ibf tt)
111
