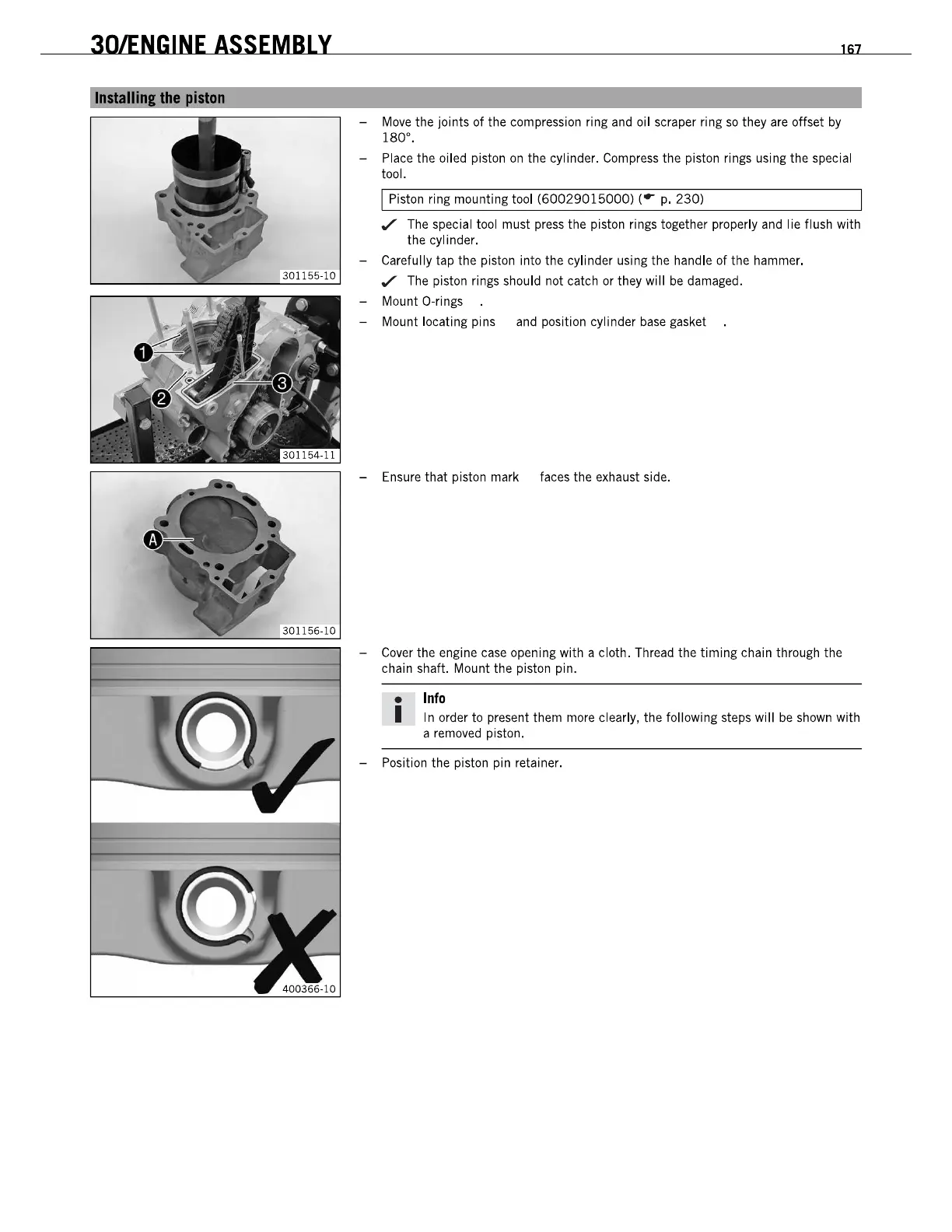

3MNGINE
ASSEMBLY
I
nstalli!ll
the
istan
167
-
Move
the joints of the compression ring and oil scraper ring
so
they
are
offset
by
180·.
- Place the oiled piston
on
the cylinder. Compress the piston rings using the special
tool.
I Piston ring mounting tool
(60029015000)
(r
p.
230)
,/
The special tool must press the piston rings together properly and lie flush with
the cylinder.
- Carefully tap the piston into the cylinder using the handle of the hammer.
,/
The piston rings should not catch or they will
be
damaged.
- Mount a-rings
- Mount locating pins
and
position cylinder
base
gasket .
- Ensure that piston mark faces the exhaust side.
-
Cover
the engine case opening with a cloth. Thread the timing chain through the
chain shafl. Mount the piston pin.
•
Info
I In order
to
present them more clearly, the following steps will
be
shown with
a removed piston.
- Position the piston pin retainer.
