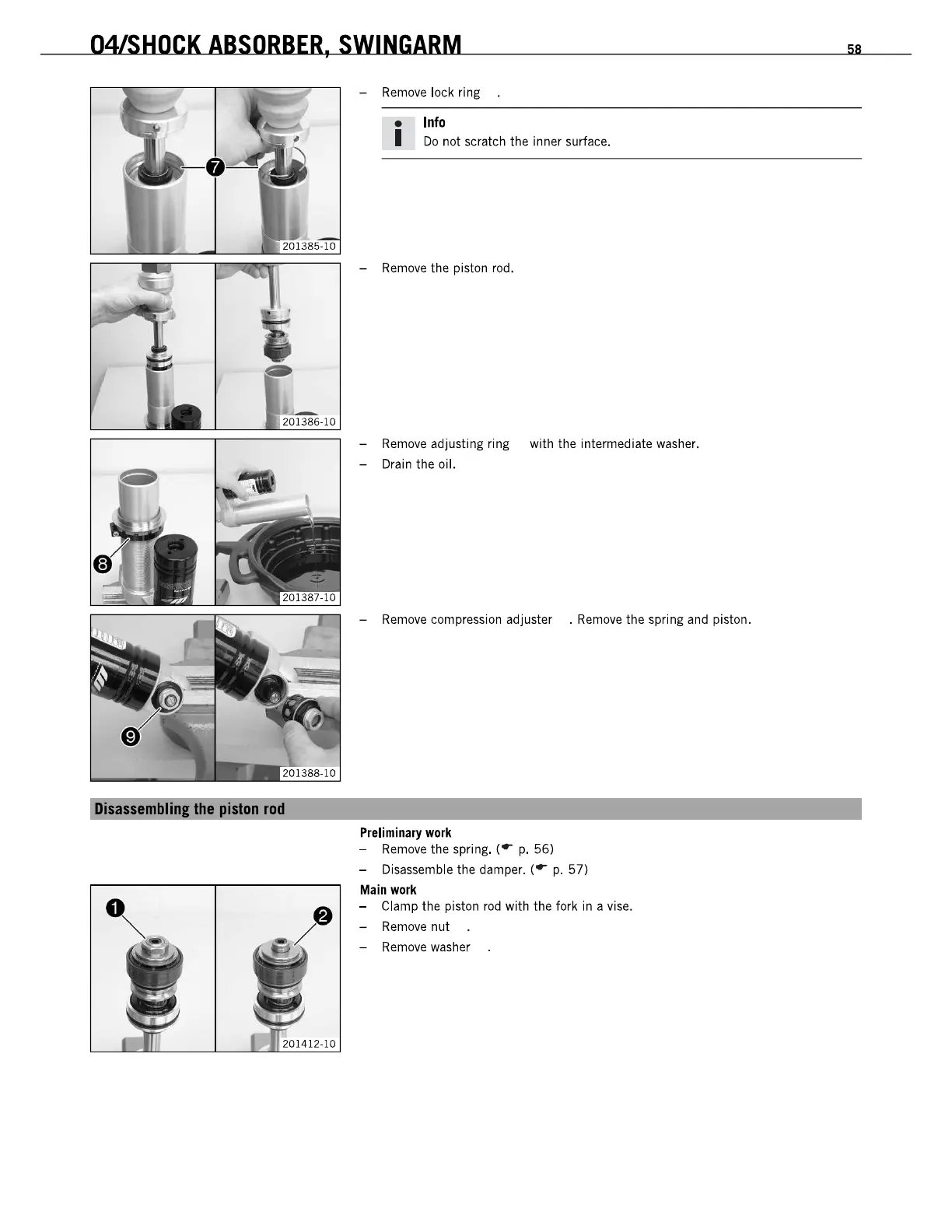

04LSHOCK
ABSORBER,
SWINGARM
58
-
Remove
lock
ring
•
Info
I
Do
not
scratch
the
inner
surface.
-
Remove
the
piston
rod.
-
Remove
adjusting
ring
with
the
intermediate
washer.
-
Drain
the
oil.
-
Remove
compression
adjuster
.
Remove
the
spring
and
piston.
Disassamblin
tIIa
p'iston
rod
Preliminary
work
-
Remove
the
spring.
(
r
p.
56)
-
Disassemble
the
damper.
(
r
p.
57)
Main
work
-
Clamp
the
piston
rod
with
the
fork
in
a
vise.
-
Remove
nut
-
Remove
washer
57
59
