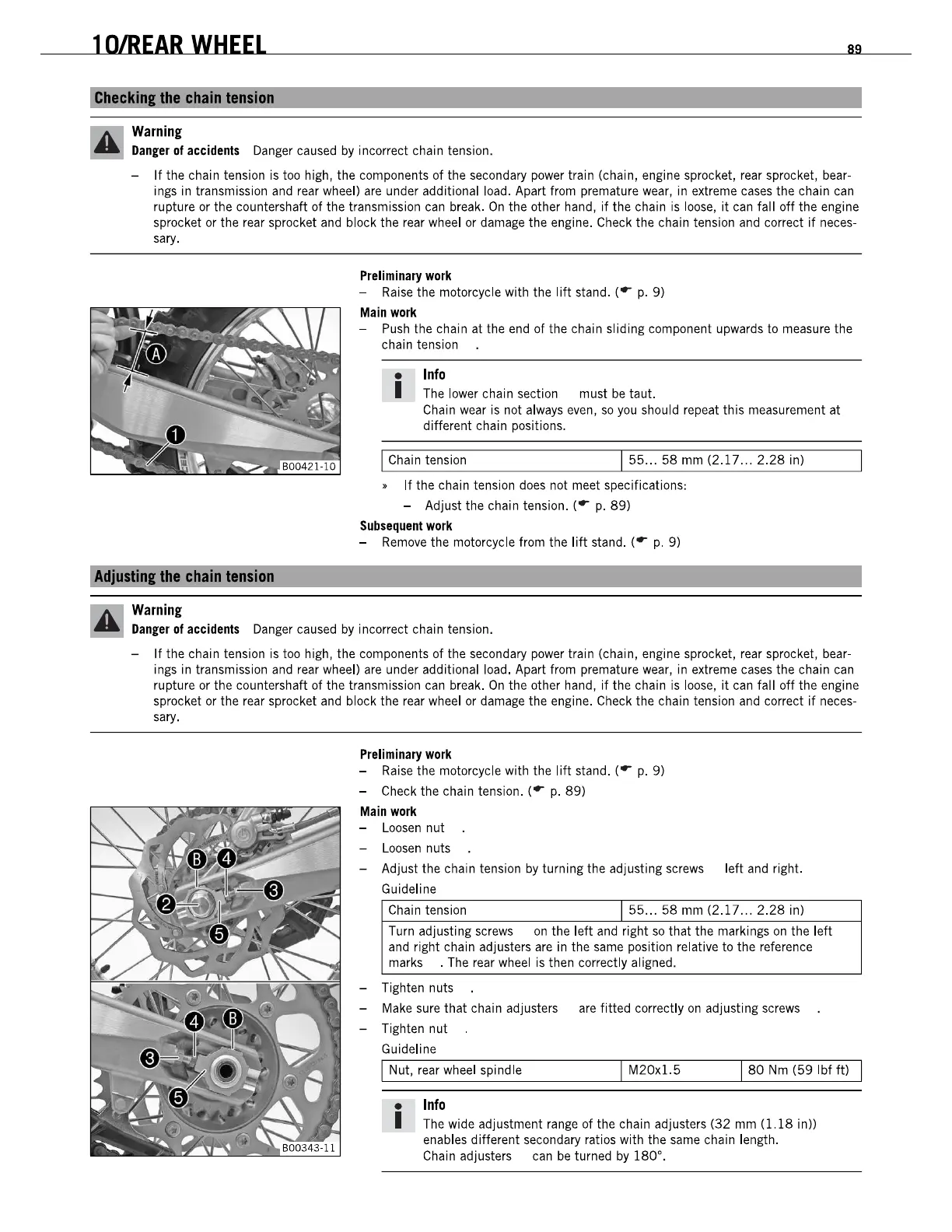

1
O/REAR
WHEEL
a9
Cbeckinllhe
chain
tension
Warning
Danger
01
accidents
Danger caused by incorrect chain tension.
- If the chain tension is too high, the components
of
the secondary power train (chain, engine sprocket, rear sprocket, bear-
ings in transmission and rear wheel) are under additional load. Apart from premature wear, in extreme cases the chain
can
rupture or the countershaft of the transmission can break.
Dn
the other hand,
if
the chain is loose,
it
can fall
off
the engine
sprocket or the rear sprocket and block the rear wheel or damage the engine. Check the chain tension and correct
if
neces-
sary.
Warning
Prlliminary
work
-
Raise
the motorcycle with the
lift
stand. (
...
p.
9)
Main
work
-
Push
the chain at the
end
of the chain sliding component upwards to measure the
chain
tension
•
Info
I The lower chain section must
be
taut.
Chain wear is not always even,
so
you
should repeat this measurement at
different chain positions.
I Chain tension I
55
...
58
mm
(2.17
...
2.28
in)
•
If
the chain tension does not meet specifications:
- Adjust the chain tension. (
...
p.
89)
Subsequent
work
-
Remove
the motorcycle from the
lift
stand. (
...
p.
9)
Danger
01
accidents
Danger caused by incorrect chain tension.
- If the chain tension is too high, the components
of
the secondary power train (chain, engine sprocket, rear sprocket, bear-
ings in transmission and rear wheel) are under additional load. Apart from premature wear, in extreme cases the chain
can
rupture or the countershaft of the transmission can break.
Dn
the other hand,
if
the chain is loose,
it
can fall
off
the engine
sprocket or the rear sprocket and block the rear wheel or damage the engine. Check the chain tension and correct
if
neces-
sary.
Preliminary
work
-
Raise
the motorcycle with the
lift
stand. (
...
p.
9)
- Check the chain tension. (
...
p.
89)
Main
work
-
Loosen
nut
-
Loosen
nuts
- Adjust the chain tension
by
turning the adjusting screws left and right.
Guideline
Chain tension
I
55
...
58
mm
(2.17
...
2.28
in)
Turn adjusting screws
on
the left and right
so
that the markings
on
the left
and right chain adjusters are in the same position relative
to
the reference
marks . The rear wheel is then correctly aligned.
- Tighten nuts
- Make sure that chain adjusters
are
fitted correctly
on
adjusting screws
- Tighten nut
Guideline
I Nut, rear wheel spindle
I M20x1.5
180
Nm
(59
Ibf ft)
•
Info
I The wide adjustment range of the chain adjusters
(32
mm
(1.18
in))
enables different secondary ratios with the same chain length.
Chain adjusters can
be
turned by
180·.
