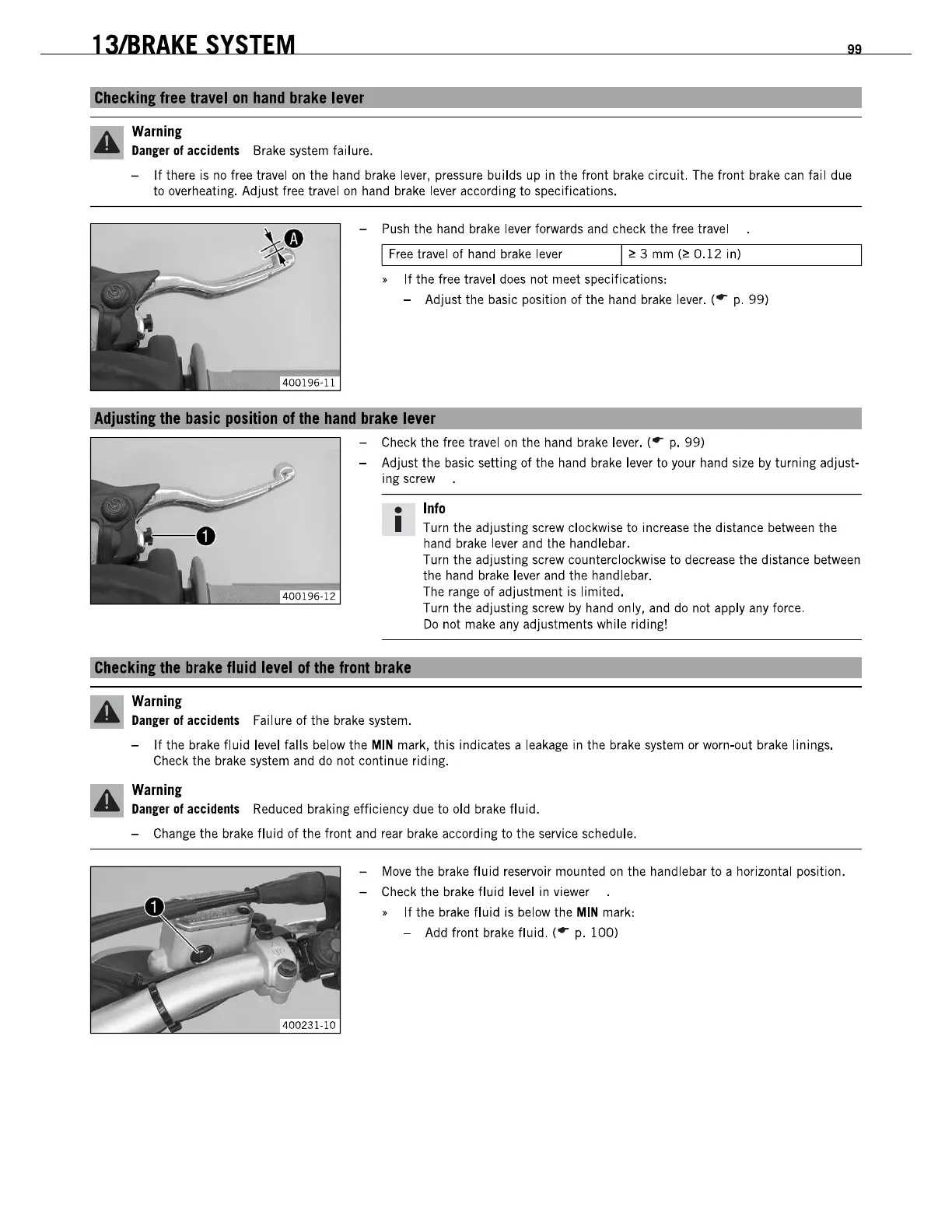

13/BRAKE
SYSTEM
99
Cbeckinl
free
travel
an
hand
brake
lever
Warning
Danger
01
accidents Brake system failure.
-
If
there is
no
free travel
on
the hand brake lever, pressure builds up in the front brake circuit. The front brake
can
fail due
to overheating. Adjust free travel
on
hand brake lever according
to
specifications.
- Push the hand brake lever forwards and check the free travel
I
Free
travel of hand brake lever I
:.
3 mm
(:'
0.12
in)
•
If
the free travel does not meet specifications:
- Adjust the basic position
of
the hand brake lever. (
..
p.
99)
osition
of
tIIa
band
braka
lavar
- Check the free travel
on
the hand brake lever. (
..
p.
99)
- Adjust the basic setting of the hand brake lever
to
your hand size
by
turning adjust-
ing
screw
• Info
I Turn the adjusting screw clockwise
to
increase the distance between the
hand brake lever and the handlebar.
Turn the adjusting screw counterclockwise
to
decrease the distance between
the hand brake lever and the handlebar.
The range
of
adjustment is limited.
Turn the adjusting screw
by
hand only, and do not apply any force.
Do
not make any adjustments while riding!
Cbackinl
tha
braka
lIuid
laval
of
tIIa
front
braka
Warning
Danger
01
accidents Failure of the brake system.
-
If
the brake fluid level falls below the
MIN
mark, this indicates a leakage in the brake system or worn-out brake linings.
Check the brake system and do not continue riding.
Warning
Danger
01
accidents Reduced braking efficiency due to old brake fluid.
- Change the brake fluid
of
the front and rear brake according
to
the service schedule.
-
Move
the brake fluid reservoir mounted on the handlebar
to
a horizontal position.
- Check the brake fluid level in viewer
•
If
the brake
fluid
is below the
MIN
mark:
- Add front brake fluid. (
..
p.
100)
