KTM 450 SX-F EU Repair Manual







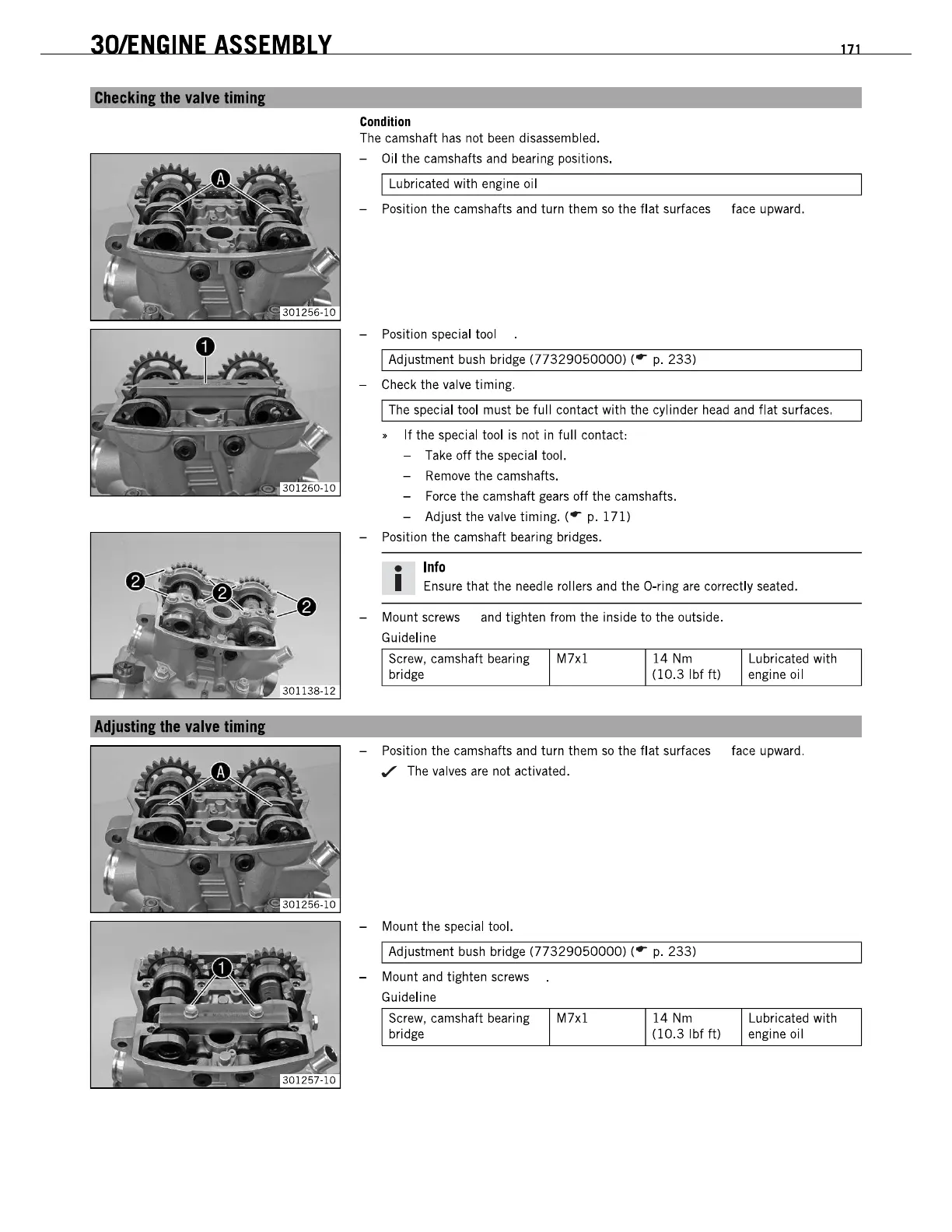

301ENGINE ASSEMBLY
Cbeckinllhe valve liminl
Adjullinllhl valvl liminl
Condition
The camshaft has not
been disassembled.
- Oil the camshafts and bearing positions.
I Lubricated with engine oil
- Position the camshafts and turn them
so the flat surfaces face upward.
- Position special tool
I Adjustment bush bridge (77329050000) ( .. p. 233)
- Check the valve timing.
I The special tool must be full contact with the cylinder head and flat surfaces.
•
If the special tool is not in full contact:
- Take
off the special tool.
-
Remove the camshafts.
- Force the camshaft gears off the camshafts.
- Adjust the valve timing. (
.. p. 171)
- Position the camshaft bearing bridges.
• Info
I Ensure that the needle rollers and the O-ring are correctly seated.
- Mount screws and tighten from the inside to the outside.
Guideline
Screw, camshaft bearing
bridge
M7xl 14 Nm
(10.3 Ibf It)
Lubricated with
engine oil
- Position the camshafts and turn them
so the flat surfaces face upward.
,/ The valves are not activated.
- Mount the special tool.
I Adjustment bush bridge (77329050000) ( .. p. 233)
- Mount and tighten screws
Guideline
Screw, camshaft bearing
bridge
M7xl 14 Nm
(10.3 Ibf It)
Lubricated with
engine oil
171
