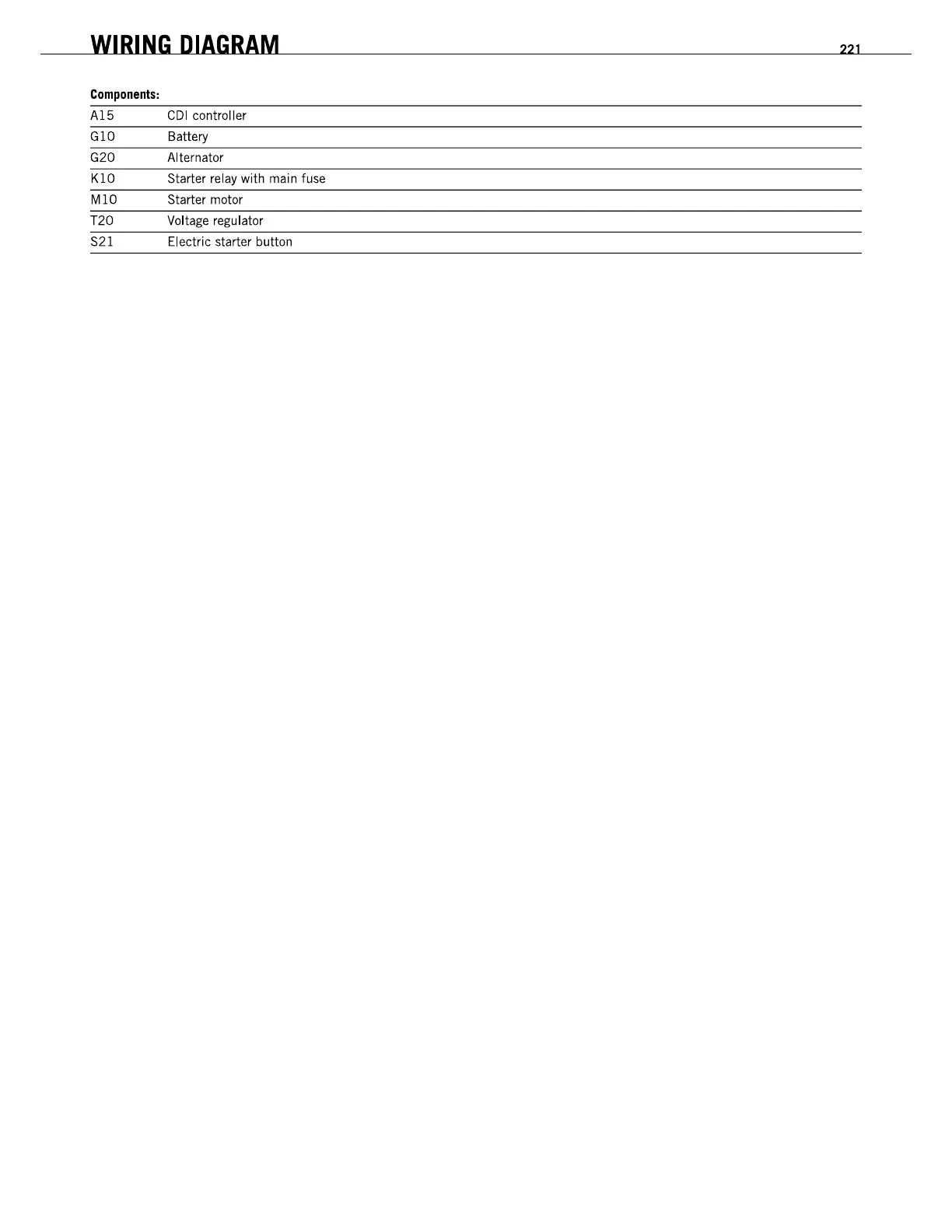

WIRING
DIAGRAM
221
Components:
A15
CDI
controlier
GI0 Battery
G20
Alternator
KI0
Starter relay with
mai
n fuse
MlO
Starter
motor
T20
Voltage regulator
521
Electric
starter
button
