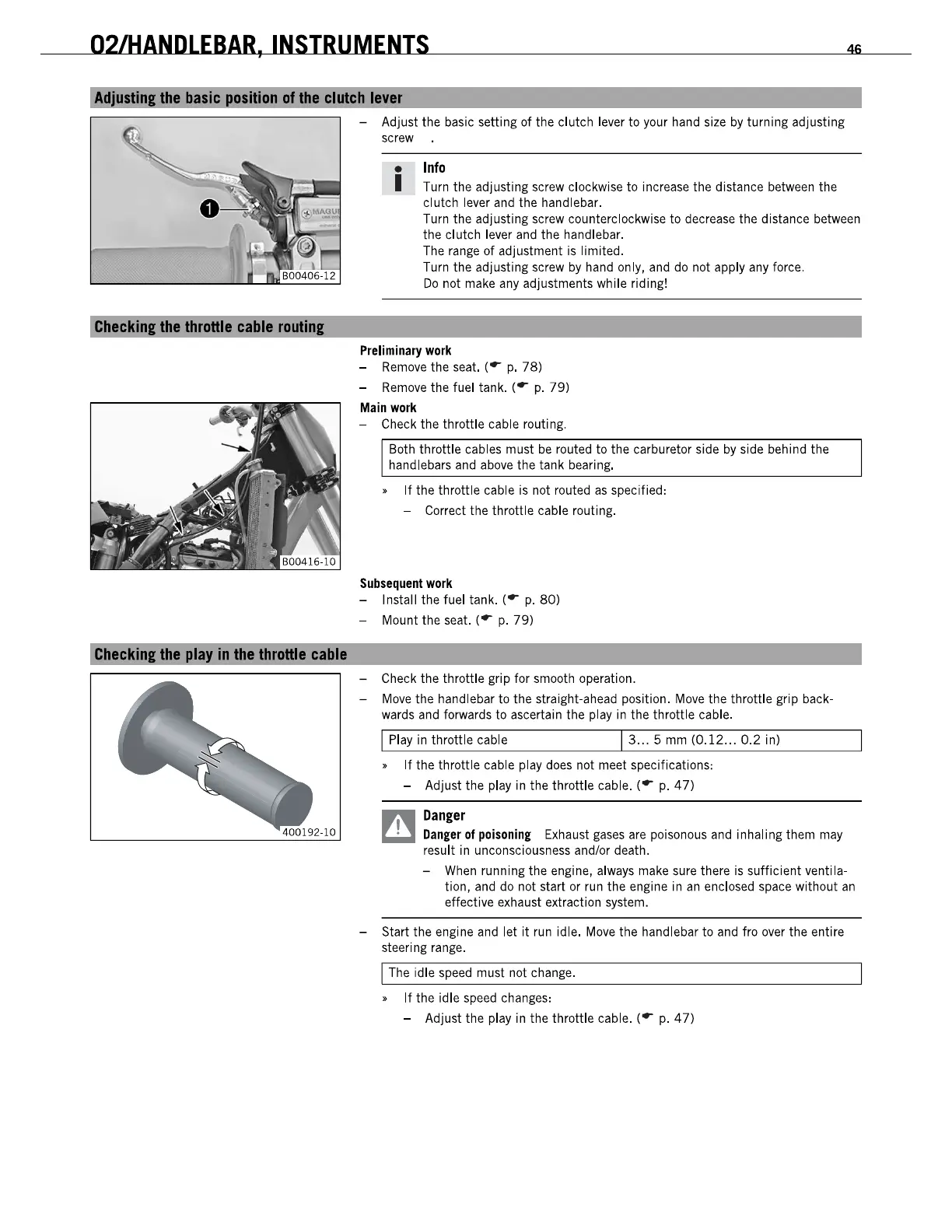

O2IHANDLEBAR,
INSTRUMENTS
46
Adjustinllhe
basic
position
of
the
clutch
lever
Checkinllhe
throtlle
cable
routinl
Checkinllhe
pia,
in
the
throtlle
cable
- Adjust the basic setting of the clutch lever to your hand size by turning adjusting
screw
•
Info
I Turn the adjusting screw clockwise
to
increase the distance between the
clutch lever and the handlebar.
Turn the adjusting screw counterclockwise
to
decrease the distance between
the clutch lever and the handlebar.
The range
of
adjustment is limited.
Turn the adjusting screw
by
hand only, and do not apply any force.
Do
not make any adjustments while riding!
Preliminary
work
- Remove the seat. (r
p.
78)
- Remove the fuel tank. (r
p.
79)
Main
work
- Check the throttle cable routing.
Both throttle cables must
be
routed
to
the carburetor side by side behind the
handlebars and above the tank bearing.
•
If
the throttle cable is not routed
as
specified:
- Correct the throttle cable routing.
Subsequent
work
- Install the fuel tank. (r
p.
80l
- Mount the seat. (r
p.
79)
- Check the throttle grip for smooth operation.
-
Move
the handlebar
to
the straight-ahead position.
Move
the throttle grip back-
wards and forwards
to
ascertain the play in the throttle cable.
1 Play in throttle cable
13
...
5 mm <0.12
...
D.2 in)
•
If
the throttle cable play does not meet specifications:
- Adjust the play in the throttle cable. (r
p.
47)
Danger
Danler
of
poisoninl
Exhaust
gases
are poisonous and inhaling them may
result in unconsciousness
andlor death.
- When running the engine, always make sure there is sufficient ventila-
tion, and do not start or run the engine in
an
enclosed space without
an
effective exhaust extraction system.
- Start the engine and let it run idle.
Move
the handlebar
to
and fro
over
the entire
steeri ng range.
1 The idle speed must not change.
•
If
the idle speed changes:
- Adjust the play in the throttle cable.
(r
p.
47)
