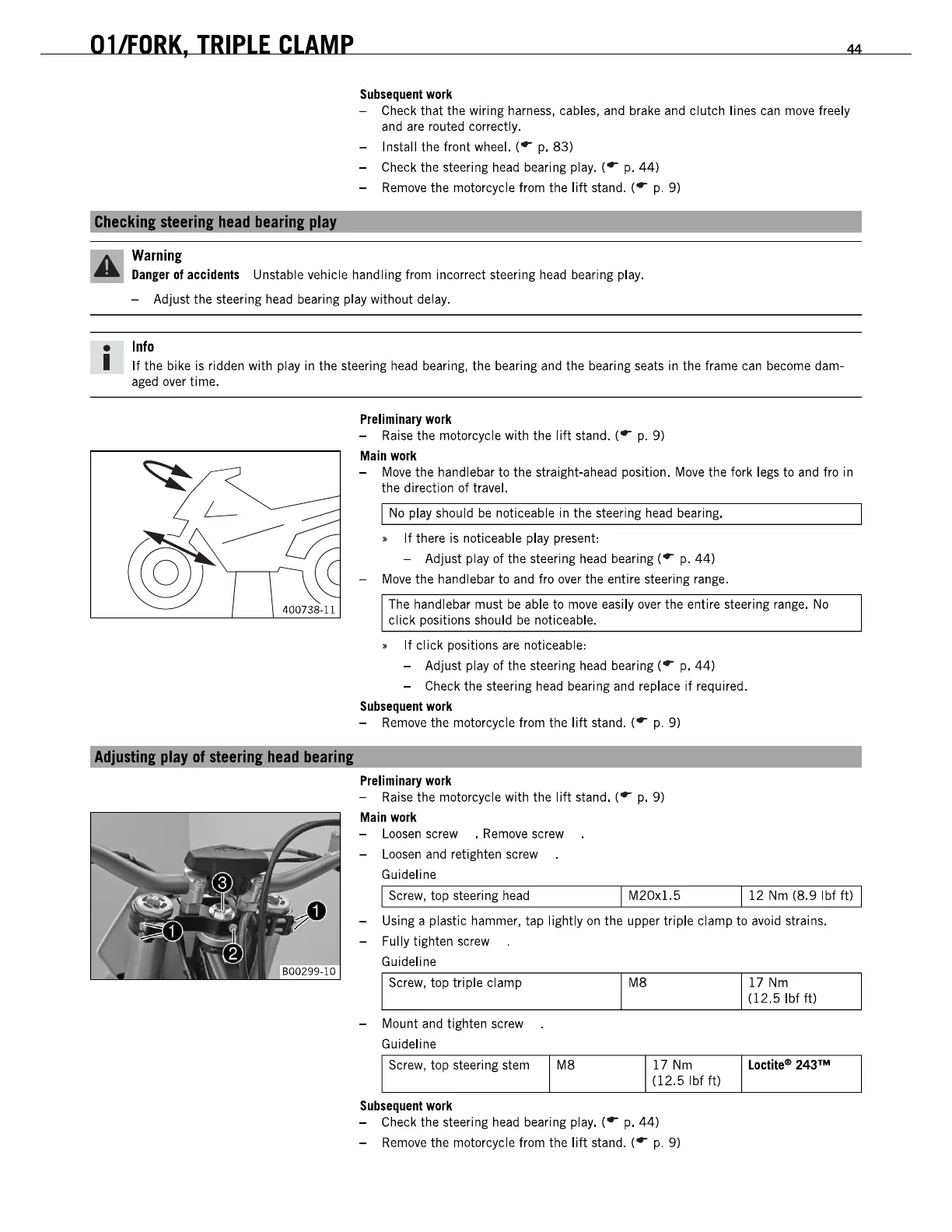

KTM 450 SX-F EU Repair Manual

 



Ol/FORK, TRIPLE CLAMP
44
Subsequent work
- Check that the wiring harness, cables, and brake and clutch lines can move freely
and are routed correctly.
- Install the front wheel. (
.- p. 83)
- Check the steering head bearing play. ( .- p. 44)
- Remove the motorcycle from the lift stand. ( .- p. 9)
Cbeckinl steerinl bead bearinl play
Warning
Danger 01 accidents Unstable vehicle handling from incorrect steering head bearing play.
- Adjust the steering
head bearing play without delay.
• Info
I If the bike is ridden with play in the steering head bearing, the bearing and the bearing seats in the frame can become dam-
aged over time.
lay of stearinl head baarinl
Preliminary work
- Raise the motorcycle with the
lift stand. ( .- p. 9)
Main work
-
Move the handlebar to the straight-ahead position. Move the fork legs to and fro in
the direction of travel.
1 No play should be noticeable in the steering head bearing.
•
If there is noticeable play present
- Adjust play
of the steering head bearing ( .- p. 44)
- Move the handlebar to and fro over the entire steering range.
The handlebar must be able to move easily over the entire steering range.
No
click positions should be noticeable.
•
If click positions are noticeable:
- Adjust play
of the steering head bearing ( .- p. 44)
- Check the steering head bearing and replace if required.
Subsequent work
- Remove the motorcycle from the
lift stand. ( .- p. 9)
Preliminary work
- Raise the motorcycle with the
lift stand. ( .- p. 9)
Main work
- Loosen screw . Remove screw
- Loosen
and retighten screw
Guideline
1 Screw, top steering head
1 M20x1.5 112 Nm (8.9 Ibf It) 1
- Using a plastic hammer, tap lightly on the upper triple clamp to avoid strains.
- Fully tighten screw
Guideline
Screw, top triple clamp
- Mount and tighten screw
Guideline
Screw, top steering stem
Subsequent work
M8
M8
17 Nm
(12.5 Ibf It)
- Check the steering head bearing play. ( .- p. 44)
- Remove the motorcycle from the lift stand. ( .- p. 9)
17 Nm
(12.5 Ibf ft)
Loctile- 243'"
