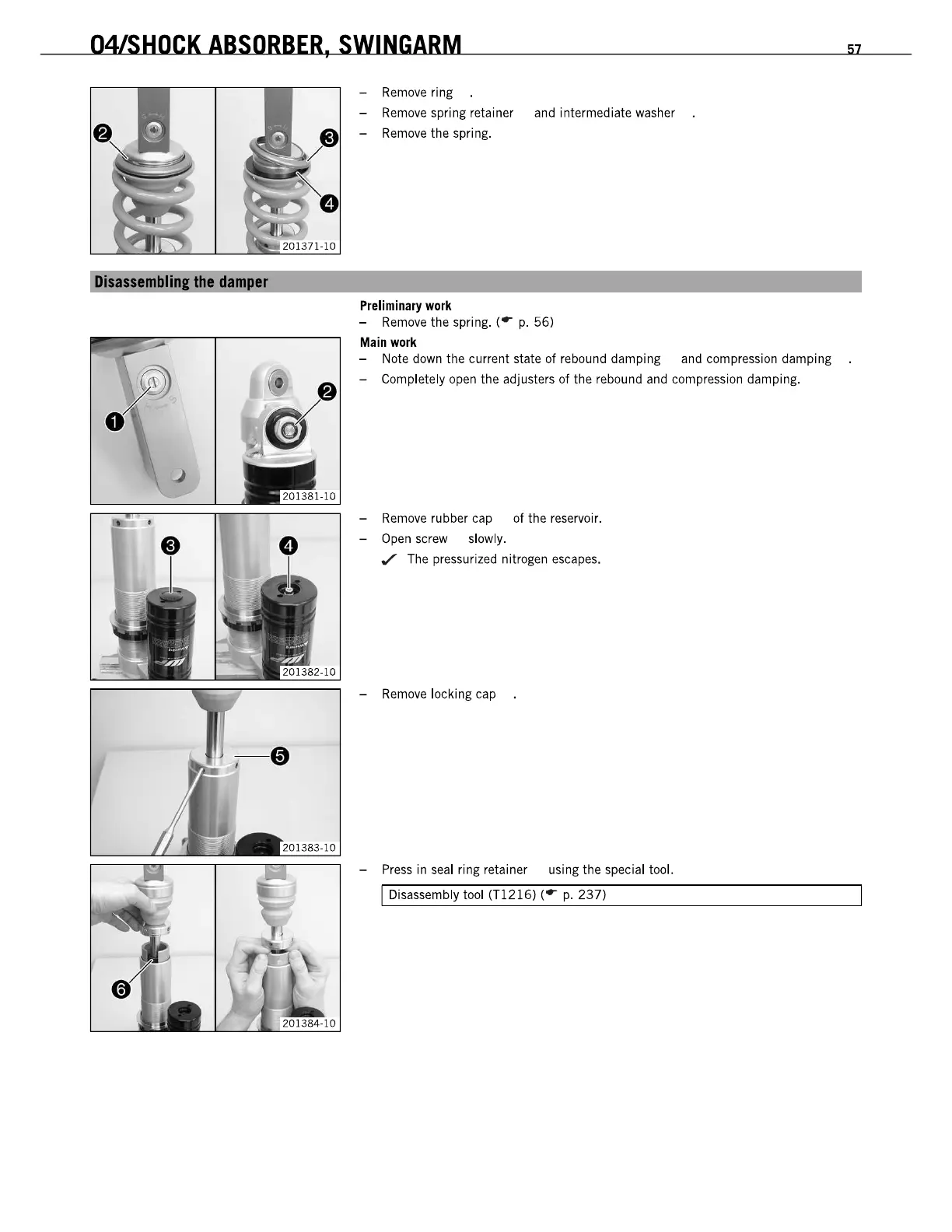

04LSHOCK
ABSORBER,
SWINGARM
57
-
Remove
ring
-
Remove
spring
retainer
and
intermediate
washer
-
Remove
the
spri
ng.
Disassemblina:
the
damper
Preliminary
work
-
Remove
the
spring.
(
..
p.
56)
Main
work
-
Note
down
the
current
state
of
rebound
damping
and
compression
damping
-
Completely
open
the
adjusters
of
the
rebound
and
compression
damping.
-
Remove
rubber
cap
of
the
reservoir.
-
Open
screw
slowly.
,/
The
pressurized
nitrogen
escapes.
-
Remove
locking
cap
-
Press
in
seal
ring
retainer
using
the
special
tool.
I
Disassembly
tool
(T1216)
(
..
p.
237)
56
