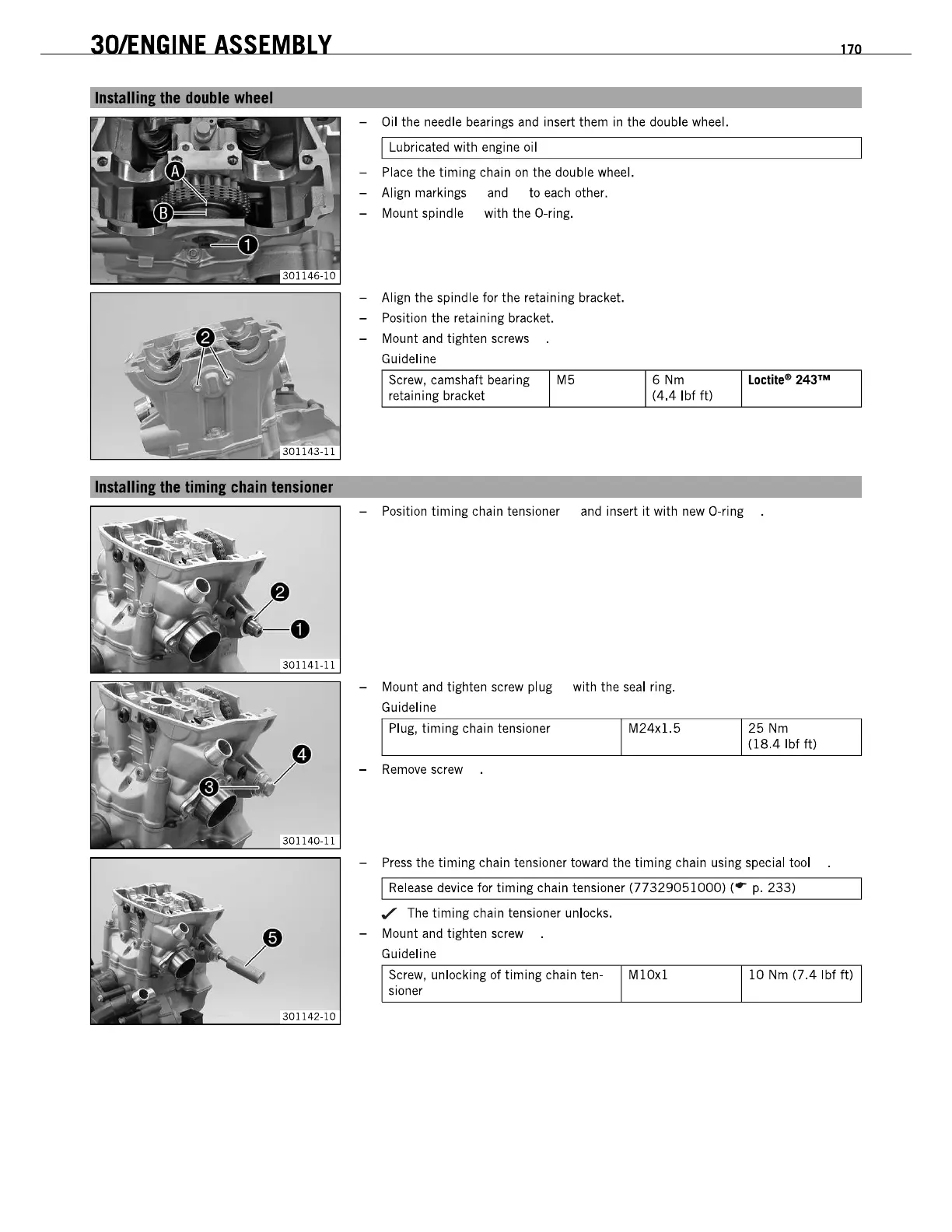

301ENGINE
ASSEMBLY
-
Oil
the needle bearings
and
insert them
in
the double wheel.
I Lubricated with engine oil
-
Place
the timing chain
on
the double wheel.
- Align markings
and
to
each
other.
- Mount spindle with the O-ring.
- Align the spindle for the retaining bracket.
- Position the retaining bracket.
- Mount and tighten
screws
Guideline
Screw. camshaft beari
ng
retaining bracket
M5
6Nm
(4.4 Ibf
ftl
Loctit'"
243
111
- Position timing chain tensioner
and
insert
it
with
new
O-ring .
- Mount and tighten screw plug with the
seal
ring.
Guideline
Plug, timing chain tensioner M24x1.5
-
Remove
screw
.
25
Nm
(18.4 Ibf ft)
-
Press
the timing chain tensioner toward the timing chain using special tool
I
Release
device for timing chain tensioner
(77329051000)
(
--
p.
233)
,/
The
timing chain tensioner unlocks.
- Mount and tighten screw .
Guideline
170
Screw, unlocking of timing chain ten- MlOx1
10
Nm
(7.4 Ibf
ftl
sioner
