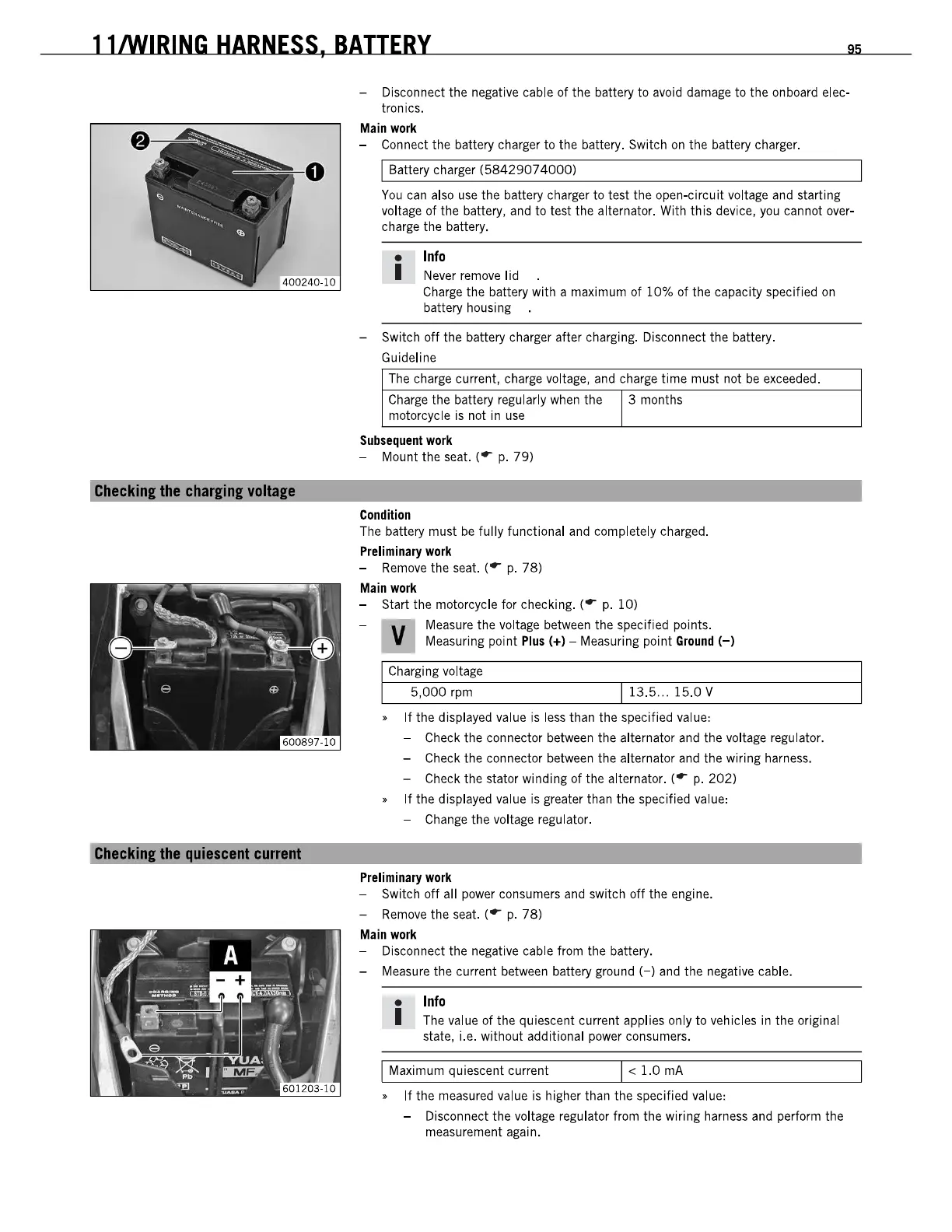

lllWlRING
HARNESS,
BATTERY
9S
Chllckinl
thll
chariinl
VDItaII
Chackinl
tha
UiBIClnt
currant
- Disconnect the negative cable of the battery
to
avoid damage
to
the onboard elec-
tronics.
Main
work
- Connect the battery charger to the battery. Switch on the battery charger.
1 Battery charger
(58429074000)
You
can also
use
the battery charger to test the open-circuit voltage and starting
voltage of the battery. and
to
test the alternator. With this device.
you
cannot over-
charge the battery.
•
Info
I Never remove lid
Charge the battery with a maximum
of
10%
of the capacity specified
on
battery housing
- Switch off the battery charger after charging. Disconnect the battery.
Guideline
The charge current, charge voltage, and charge
time
must not
be
exceeded.
Charge the battery regularly when the
13
months
motorcycle
is
not in
use
Subsequent
work
- Mount the seat. ('r
p.
79)
Condition
The battery must be
fully
functional and completely charged.
Preliminary
work
- Remove the seat. (r
p.
78)
Main
work
- Start the motorcycle for checking. (r
p.
10)
Measure the voltage between the specified points.
Measuring point
Plus
(+)
- Measuring point
Ground
(-)
I Charging voltage
5,000
rpm
113.5
...
15.0
V
•
If
the displayed value
is
less than the specified value:
- Check the connector between the alternator and the voltage regulator.
- Check the connector between the alternator and the wiring harness.
- Check the stator winding
of
the alternator. (r
p.
202)
•
If
the displayed value
is
greater than the specified value:
- Change the voltage regulator.
Preliminary
work
- Switch off all power consumers and switch off the engine.
- Remove the seat. (r
p.
78)
Main
work
- Disconnect the negative cable from the battery.
- Measure the current between battery ground
(-)
and the negative cable.
•
Info
I The value of the quiescent current applies only
to
vehicles in the original
state, i.e. without additional power consumers.
1 Maximum quiescent current 1 <
1.0
rnA
•
If
the measured value
is
higher than the specified value:
- Disconnect the voltage regulator from the wiring harness and perform the
measurement again.
