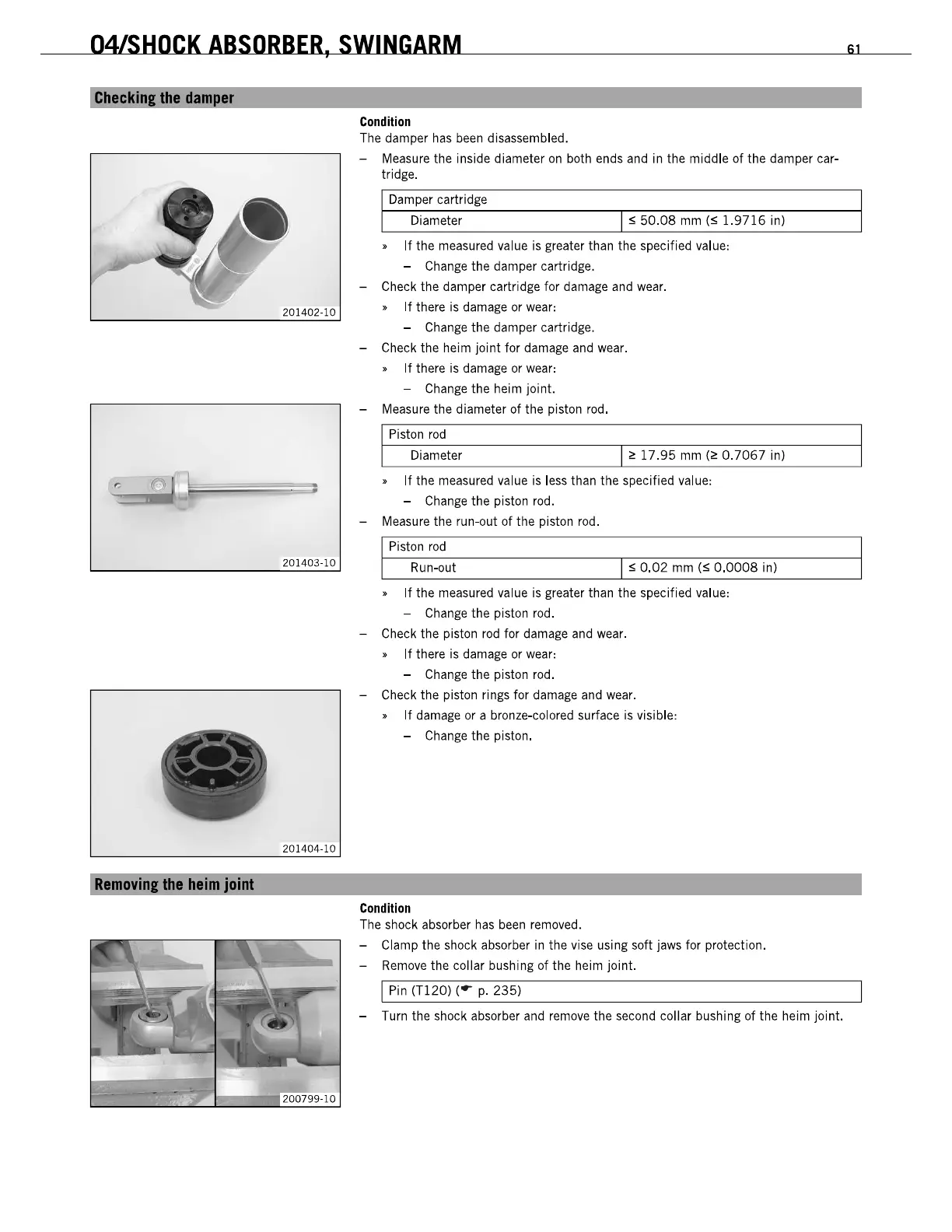

04LSHOCK
ABSORBER,
SWINGARM
Cbeckinllhe
darnp'er
1
201403-10
201404-10
RllrnDYinl
thll
bllirn
jDint
Condition
The damper
has
been disassembled.
- Measure the inside diameter
on
both ends and in the middle
of
the damper car-
tridge.
Damper cartridge
Diameter
S
50.08
mm
(S
1.9716
in)
•
If
the measured value
is
greater than the specified value:
- Change the damper cartridge.
- Check the damper cartridge for damage and wear.
•
If
there is damage or wear:
- Change the damper cartridge.
- Check the heim
joint
for damage and wear.
•
If
there is damage or wear:
- Change the heim joint.
- Measure the diameter of the piston rod.
Piston
rod
Diameter I
2:
17.95 mm
(2:
0.7067
in)
•
If
the measured value
is
less than the specified value:
- Change the piston rod.
- Measure the run-{lut
of
the piston rod.
I Piston
rod
Run-out I S
0.02
mm
(S
0.0008
in)
•
If
the measured value
is
greater than the specified value:
- Change the piston rod.
- Check the piston
rod
for damage and wear.
•
If
there is damage or wear:
- Change the piston rod.
- Check the piston rings for damage and wear.
•
If
damage or a bronze-eolored surface is visible:
- Change the piston.
Condition
The shock absorber
has
been
removed.
- Clamp the shock absorber in the vise using soft jaws for protection.
- Remove the collar bushing of the heim joint.
I Pin
(Tl20)
(r
p.
235)
- Turn the shock absorber and remove the second collar bushing of the heim joint.
61
