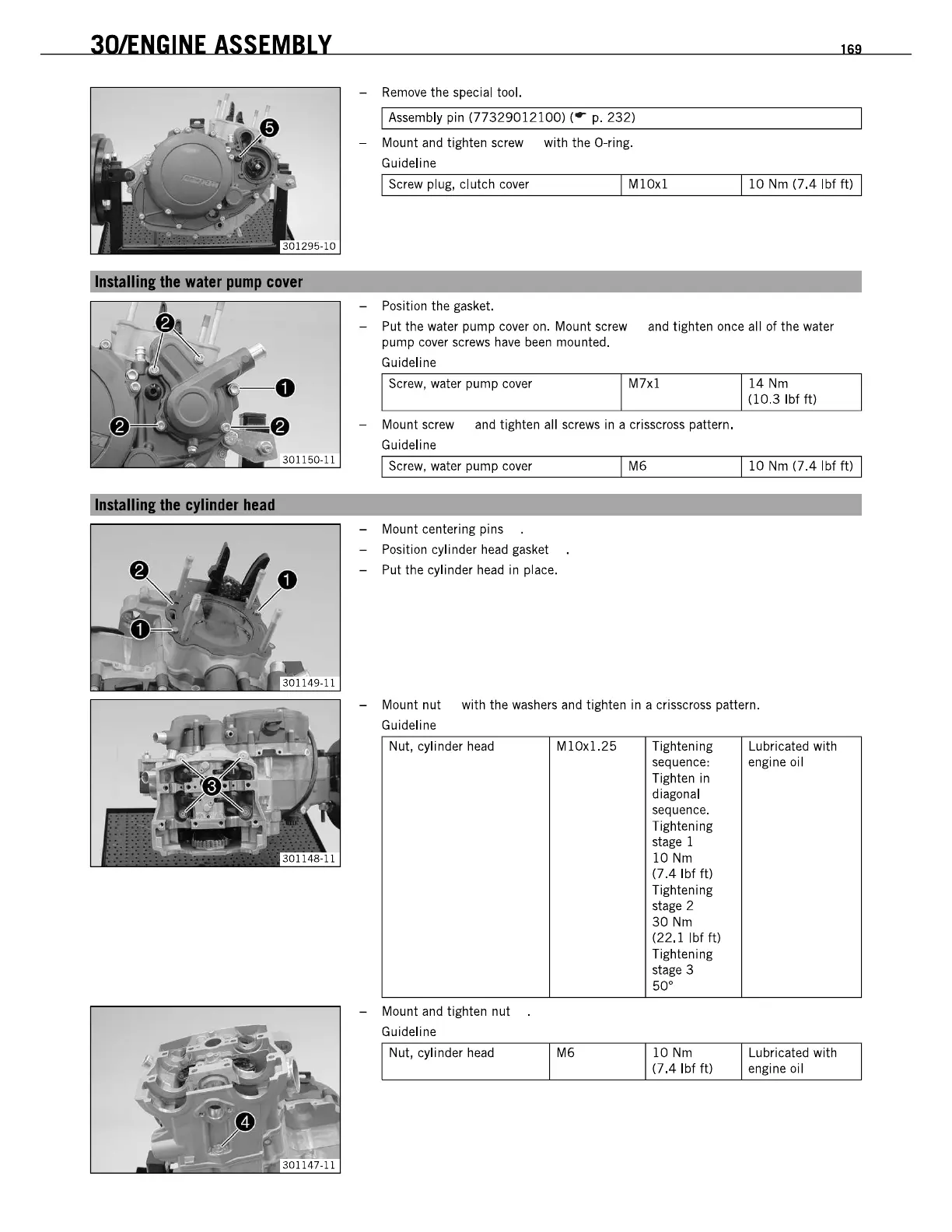

301ENGINE
ASSEMBLY
Installlnilhe
cYlinder
head
169
-
Remove
the special tool.
I Assembly pin
(77329012100)
(
--
p.
232)
- Mount and tighten screw with the O-ring.
Guideline
I Screw plug, clutch cover
I
MI0xl
110
Nm
(7.4
Ibf
It)
I
- Position the gasket.
- Put the water pump cover on. Mount screw
and
tighten once all of the water
pump cover screws
have
been
mounted.
Guideline
Screw, water
pu
m p cover
M7xl
- Mount screw
and
tighten all screws
in
a crisscross pattern.
Guideline
I
Screw,
water
pump
cover
- Mount centering pins
- Position cylinder
head
gasket
- Put the cylinder
head
in
place.
14
Nm
(10.3 Ibf
It)
110
Nm
(7.4
Ibf
It)
I
- Mount nut with the washers and tighten
in
a crisscross pattern.
Guideline
Nut, cylinder
head
MI0x1.25
Tightening Lubricated with
sequence:
engine oil
Tighten
in
diagonal
sequence.
Tightening
stage 1
10
Nm
(7.4lbfft)
Tightening
stage 2
30
Nm
(22.1 Ibf
It)
Tightening
stage 3
50·
- Mount and tighten nut
Guideline
Nut, cylinder
head
M6
10
Nm
Lubricated with
(7.4lbflt)
engine oil
