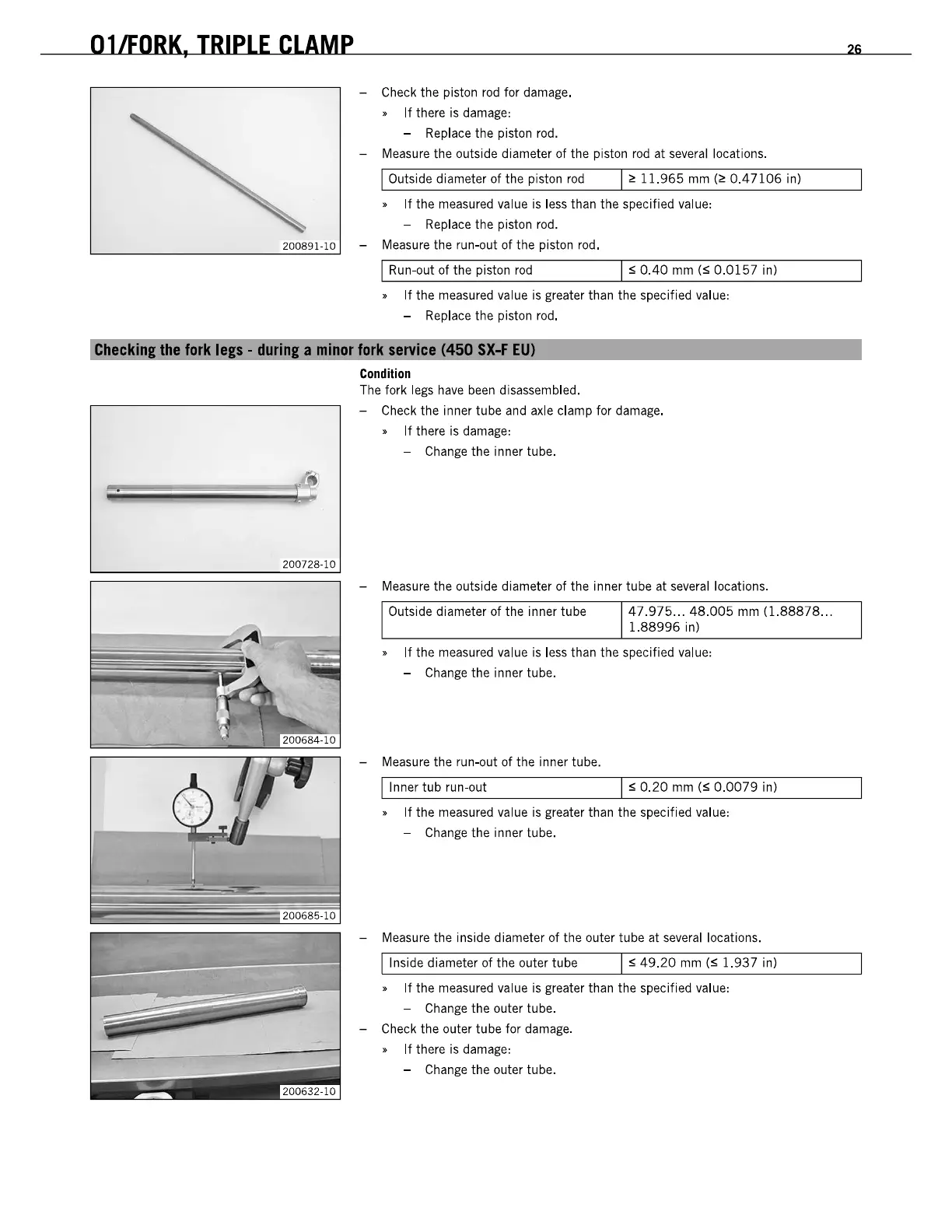

KTM 450 SX-F EU Repair Manual

Ol/FORK, TRIPLE CLAMP
- Check the pi&on rod for damage.
•
If there is damage:
- Replace the piston rod.
- Measure the outside diameter of the piston
rod at several locations.
I Outside diameter
of the piston rod I O!: 11.965 mm (O!: 0.47106 in)
•
If the measured value is less than the specified value:
- Replace the piston rod.
26
L- ____________________ -=20=M==91~-=10~ - rM~e-as-u-r-e-th~e~ru-n-~~u-t-O-f-th~e-p-i-&-O-n-ro-d-. __ .-~~----~~~~~--------,
I Run~ut of the piston rod I S 0.40 mm (S 0.0157 in)
•
If the measured value is greater than the specified value:
- Replace the piston rod.
Chacklnalha fork 1m - durlna a minor fork SBrvlca (450 SX-F EU)
200721HO
200685-10
Condition
The fork legs have been disassembled.
- Check the inner tube and axle clamp for damage.
•
If there is damage:
- Change the inner tube.
- Measure the outside diameter of the inner tube at several locations.
Outside diameter
of the inner tube
47.975 ... 48.005 mm (1.88878 ...
1.88996 in)
•
If the measured value is less than the specified value:
- Change the inner tube.
- Measure the
run~ut of the inner tube.
Iinner tub run-out I S 0.20 mm (:S: 0.0079 in)
•
If the measured value is greater than the specified value:
- Change the inner tube.
- Measure the inside diameter of the outer tube at several locations.
I Inside diameter of the outer tube
I S 49.20 mm (:S: 1.937 in)
•
If the measured value is greater than the specified value:
- Change the outer tube.
- Check the outer tube for damage.
•
If there is damage:
- Change the outer tube.
