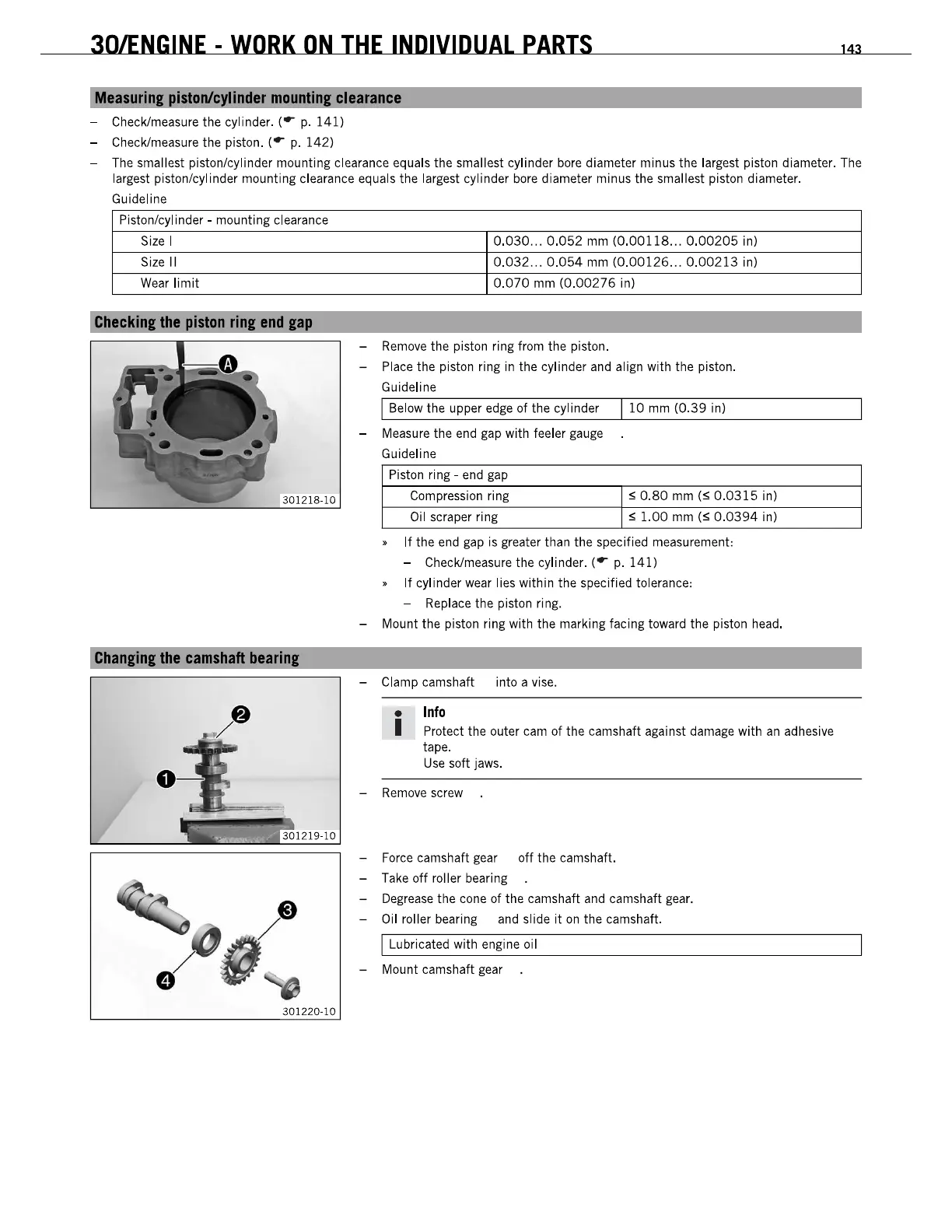

- Check/measure the cylinder. (
..
p.
141)
- Check/measure the piston. (
..
p.
142)
- The smallest piston/cylinder mounting clearance equals the smallest cylinder bore diameter minus the largest piston diameter. The
largest piston/cylinder mounting clearance equals the largest cylinder bore diameter minus the smallest piston diameter.
Guideline
Piston/cylinder - mounting clearance
Size I
Size
II
Wear
limit
Chackinl
tha
p'iston
rinl
and
lap
301218-10
Chanlinl
tha
camshaft
baarinl
0 -
301220-10
0.030
...
0.052
mm
(0.00118
...
0.00205
in)
0.032
...
0.054
mm
(0.00126
...
0.00213
in)
0.070
mm
(0.00276
in)
-
Remove
the piston ring from the piston.
- Place the piston ring in the cylinder and align with the piston.
Guideline
1 Below the upper edge of the cylinder
110
mm
(0.39
in)
- Measure the
end
gap with feeler gauge
Guideline
Piston ring - end gap
Compression ring
Oil scraper ring
S
0.80
mm
(S
0.0315
in)
S
1.00
mm
(S
0.0394
in)
»
If
the end gap is greater than the specified measurement:
- Check/measure the cylinder. (
..
p.
141)
»
If
cylinder wear lies within the specified tolerance:
- Replace the piston ring.
- Mount the piston ring with the marking facing toward the piston head.
- Clamp camshaft into a vise.
•
Info
I Protect the outer cam
of
the camshaft against damage with
an
adhesive
tape.
Use
soft jaws.
-
Remove
screw
- Force camshaft gear
off
the camshaft.
- Take
off
roller bearing
-
Degrease
the cone of the camshaft and camshaft gear.
- Oil roller bearing and slide
it
on
the camshaft.
1 Lubricated with engine oil
