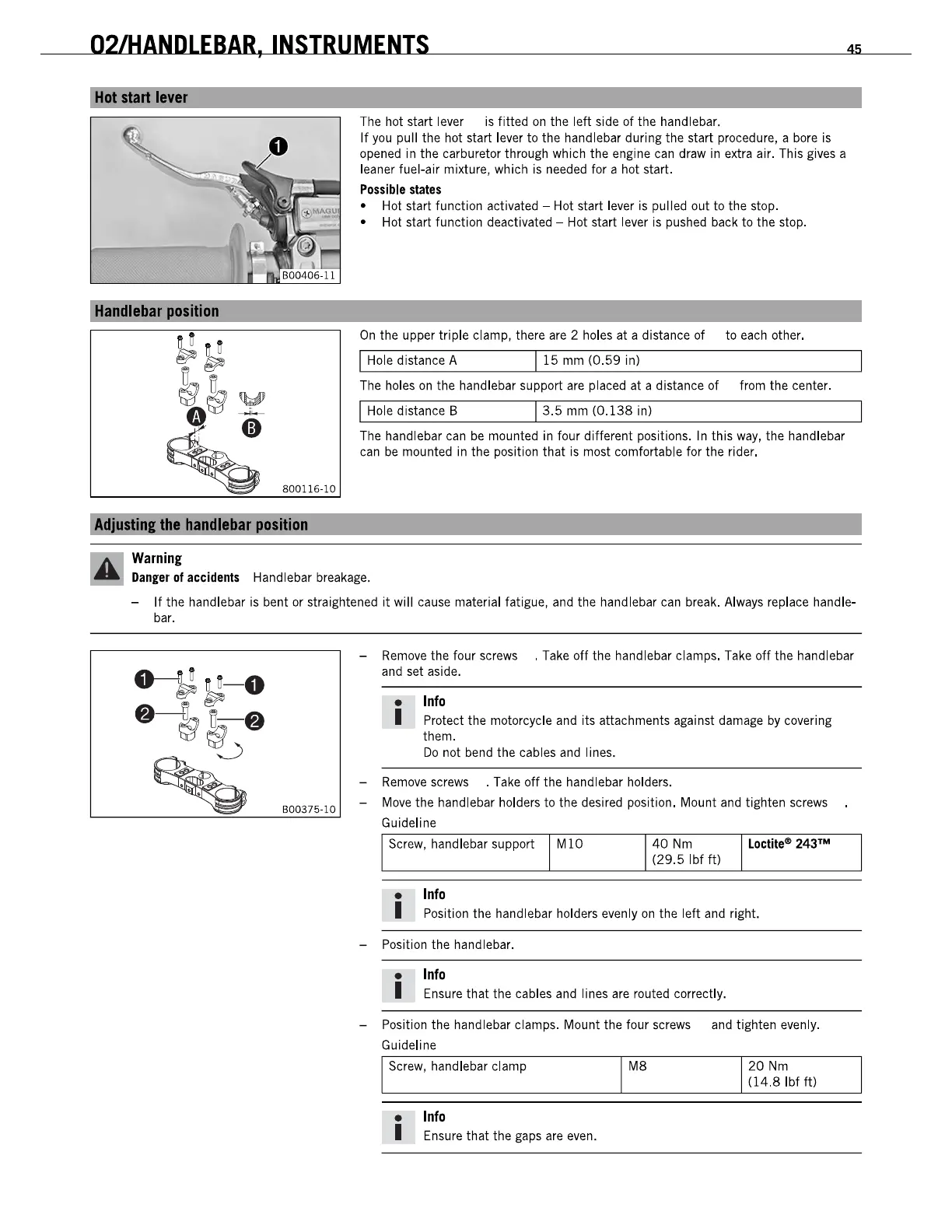

O2IHANDLEBAR,
INSTRUMENTS
45
Hot
stan
Ilvlr
80011(;,10
Adjustina
!hI
handllbar
p'osition
Warning
The hot start lever
is
fitted
on
the left side of the handlebar.
If
you
pull the hot start lever to the handlebar during the start procedure, a bore is
opened in the carburetor through which the engine
can
draw in extra air. This gives a
leaner fuel-air mixture, which
is
needed for a hot start.
Possible
states
o Hot start function activated - Hot start lever is pulled out
to
the stop.
o Hot start function deactivated - Hot start lever is pushed back
to
the stop.
On
the upper triple clamp, there are 2 holes at a distance of
to
each other.
1 Hole distance A
115
mm
(0.59 in)
The holes
on
the handlebar support
are
placed at a distance
01
lrom the center.
1 Hole distance B
13.5
mm (0.138 in)
The handlebar
can
be
mounted in four different positions. In
this
way,
the handlebar
can
be
mounted in the position that is most comfortable for the rider.
Danier
of
accidents
Handlebar breakage.
- If the handlebar is bent or straightened
it
will cause material fatigue, and the handlebar
can
break. Always replace handle-
bar.
B003l!;.lO
-
Remove
the four screws . Take off the handlebar clamps. Take off the handlebar
and set aside.
•
Info
I Protect the motorcycle and its attachments against damage
by
covering
them.
Do
not bend the cables
and
lines.
-
Remove
screws . Take
off
the handlebar holders.
-
Move
the handlebar holders to the desired position. Mount and tighten screws
Guideline
Screw, handlebar support M
10
•
Info
40
Nm
(29.5 Ibf
It)
Loctile-
243""
I Position the handlebar holders evenly
on
the left and right.
- Position the handlebar.
•
Info
I Ensure that the cables and lines
are
routed correctly.
- Position the handlebar clamps. Mount the four screws and tighten evenly.
Guideline
Screw, handlebar clamp
•
Info
I Ensure that the gaps
are
even.
M8
20
Nm
(14.8
Ibf
ft)
