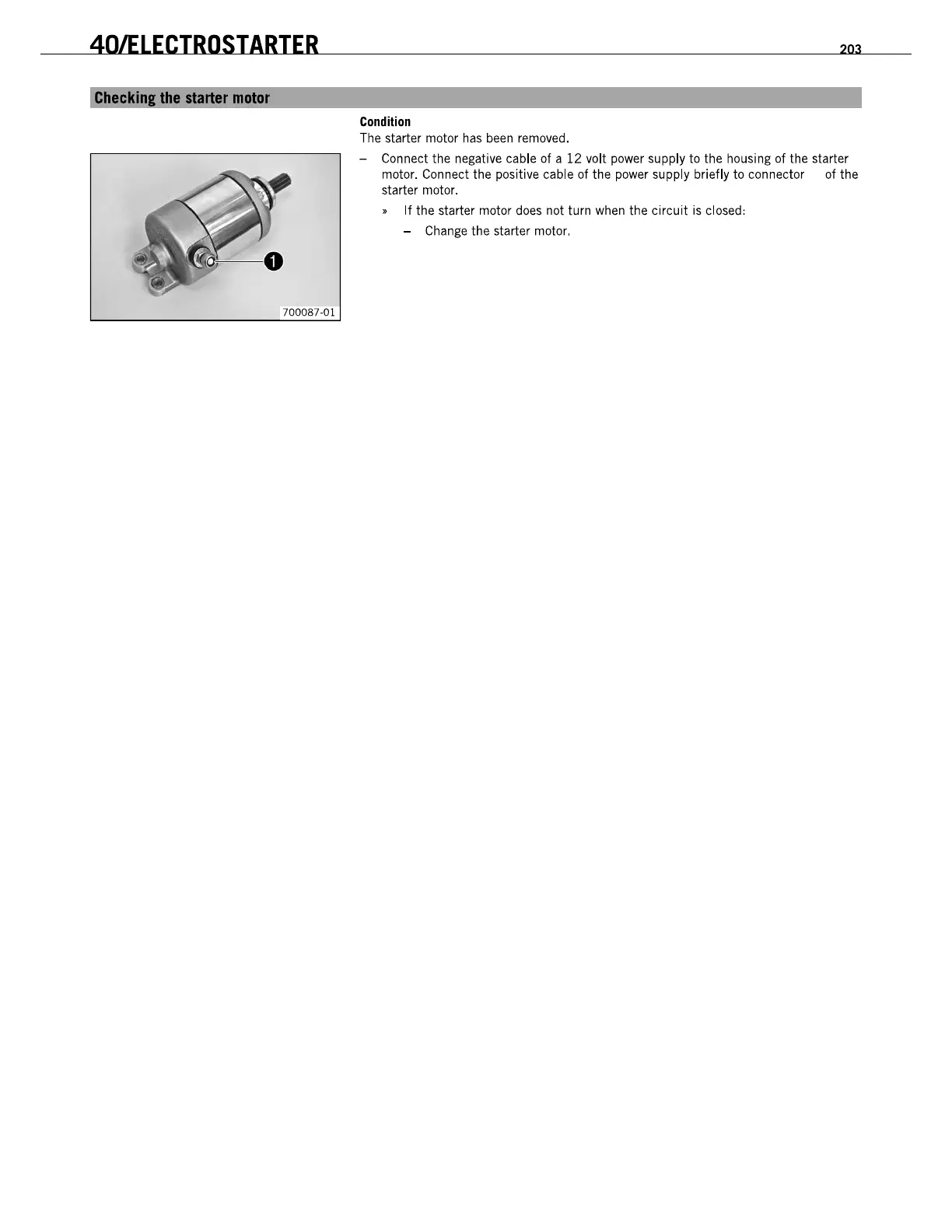

40/ELECTROSTARTER
Cbeckinllhe
Slal1er
motor
700087-01
203
Condition
The
starter
motor
has
been
removed.
-
Connect
the
negative
cable
of
a
12
volt
power
supply
to
the
housing
of
the
starter
motor.
Connect
the
positive
cable
of
the
power
supply
briefly
to
connector
of
the
starter
motor.
>
If
the
starter
motor
does
not
turn
when
the
circuit
is
closed:
-
Change
the
starter
motor.
202
204
