Patient Info Dialog Patient Management
6 - 6 V Series Operating Instructions
6.2.5 Discharging a Patient
Discontinue monitoring a patient by discharging them from the monitor. Discharging a patient clears
all their historical data from the monitor.
NOTE: When connected to a central monitoring system (i.e., central station), a
patient’s discharge from the V 12/V 21 bedside monitor also discharges
the patient from the central station. Refer to the central station
operating instructions for additional information.
NOTE: Switching leadsets or discharging a patient automatically reverts the
ST Dialog Representative Beat Display setting to the default of Auto.
NOTE: Do not turn off the V 12/V 21 before discharging is complete.
1. Select the Header Bar (located above the top waveform).
The Patient Info dialog displays.
2. Select the Transfer/Discharge tab (as shown in FIGURE 6-4).

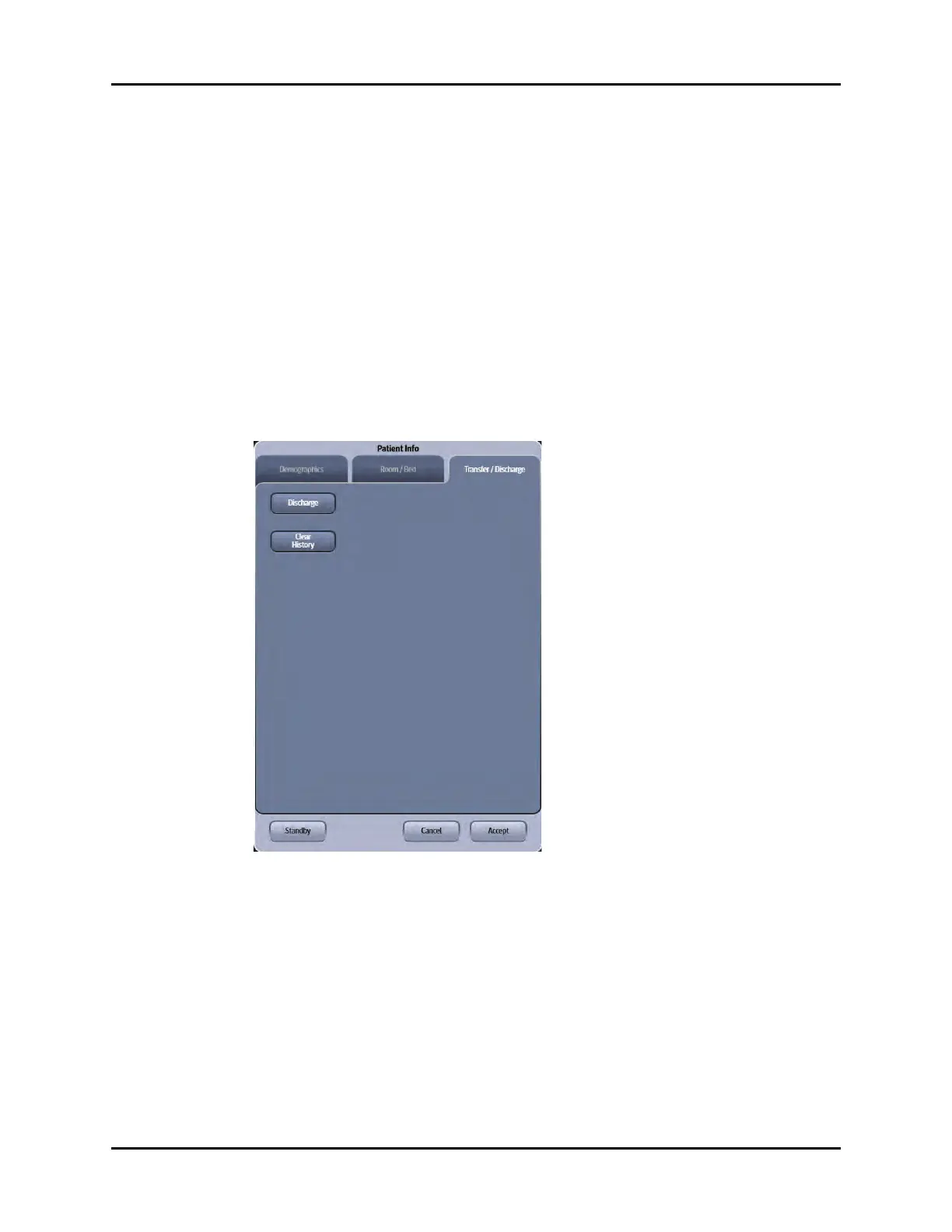

FIGURE 6-4 Example Patient Info (Transfer/Discharge Tab)
3. Select Discharge. A confirmation dialog displays the message Are you sure you want to
discharge? This will restore the defaults for all settings and clear history data.
4. Select No or Yes.
• Selecting No cancels the operation.
• Selecting Ye s does the following:
•Returns to the Discharge dialog
•Discharge occurs at the local monitor and the central station (if applicable).
•All patient data and trends are cleared.
•Default departmental settings are restored.
