CO2 Tile Layouts CO2 Monitoring (Optional)
17 - 8 V Series Operating Instructions
17.3.5 CO
2
Waveform Tile Layout
The CO
2
waveform tile displays:
1. Tile name
2. CO
2
waveform
3. Waveform scale
4. Unit of measure

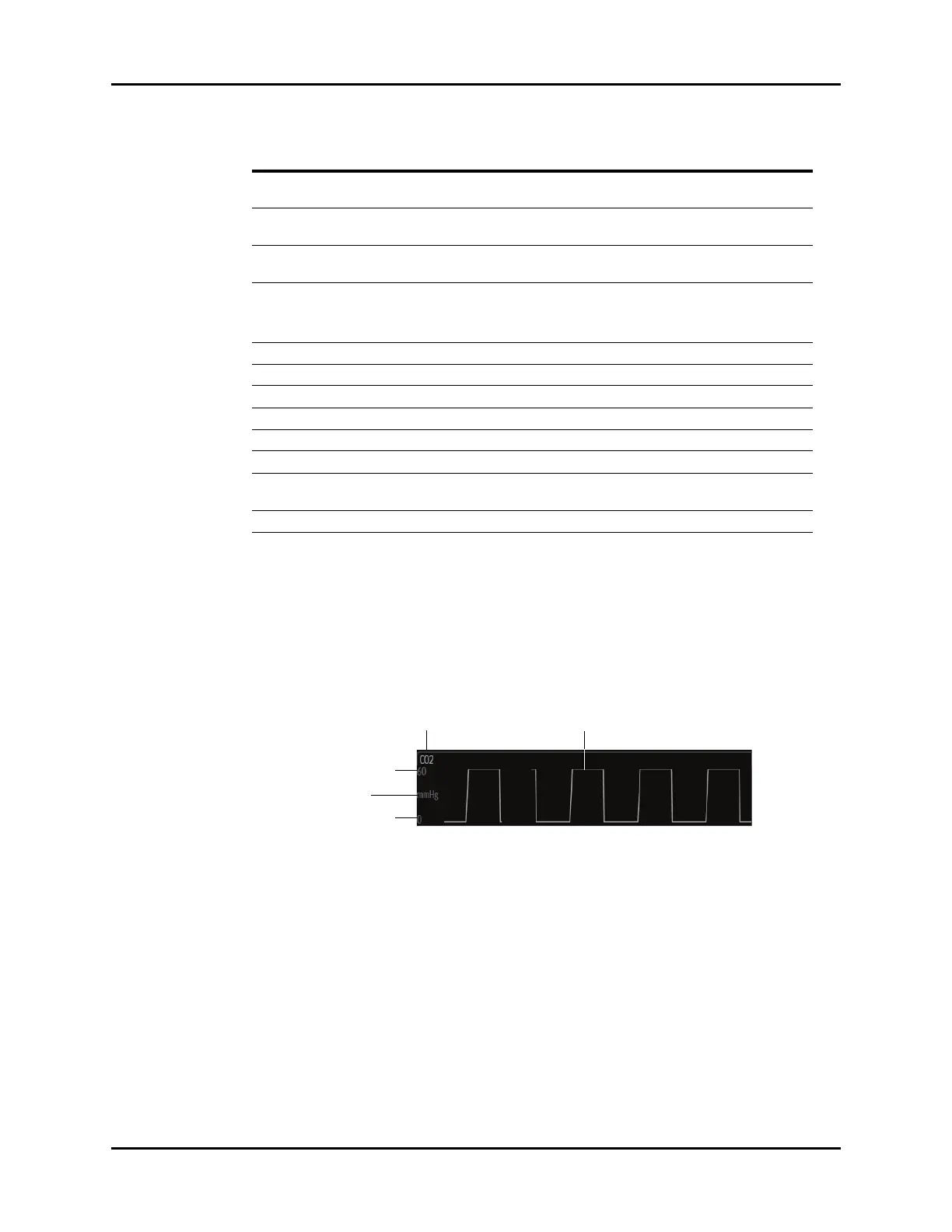

FIGURE 17-6 Example CO
2
Waveform Tile
ET CO2 Low Alarm Violation Indicates that the current value is either equal to or lower than the set
alarm limits.
Resp High Alarm Violation Indicates that the current value is either equal to or higher than the set
alarm limits.
Resp Low Alarm Violation Indicates that the current value is either equal to or lower than the set
alarm limits.
Apnea Alarms Displays during episodes of apnea.
NOTE: The Apnea alarm takes priority
over the Low Respiration alarm.
Filterline Disconnected Filterline is disconnected from the monitor.
Warming Up CO
2
Operating lamp has not yet reached its operating temperature.
Auto Zero in Progress CO
2
module is performing zeroing out the values.
CO2 Failure CO
2
subsystem failed.
Check Flow Rate CO
2
flow rate is either low or high.
Occlusion CO
2
hardware indicates the filterline is blocked.
Purge CO
2
detects a fluid obstruction and attempts to purge by temporarily
increasing the flow rate.
CO2 Not Calibrated CO
2
hardware indicates module is not calibrated.
MESSAGE* DETAILS
