V Series Operating Instructions 21 - 7
History Dialogs Events Tab
21.3 Events Tab
The Events tab lists all the patient’s events. View events in a list format or a detail format. Both views
are outlined in this section. Events can be physiological indicating that a patient’s physiological alarm
thresholds have been violated or technical indicating that a specific technical issue has occurred.
Some events are saved to the events database.
NOTE: For a list of the specific events saved to the events database, refer to
"Historical Events" on page 21-24.
21.3.1 Navigating to the Events Tab
1. Select the History button from the Navigation Area.
2. Select the Event tab.
The Events - List view displays (as shown in FIGURE 21-4).

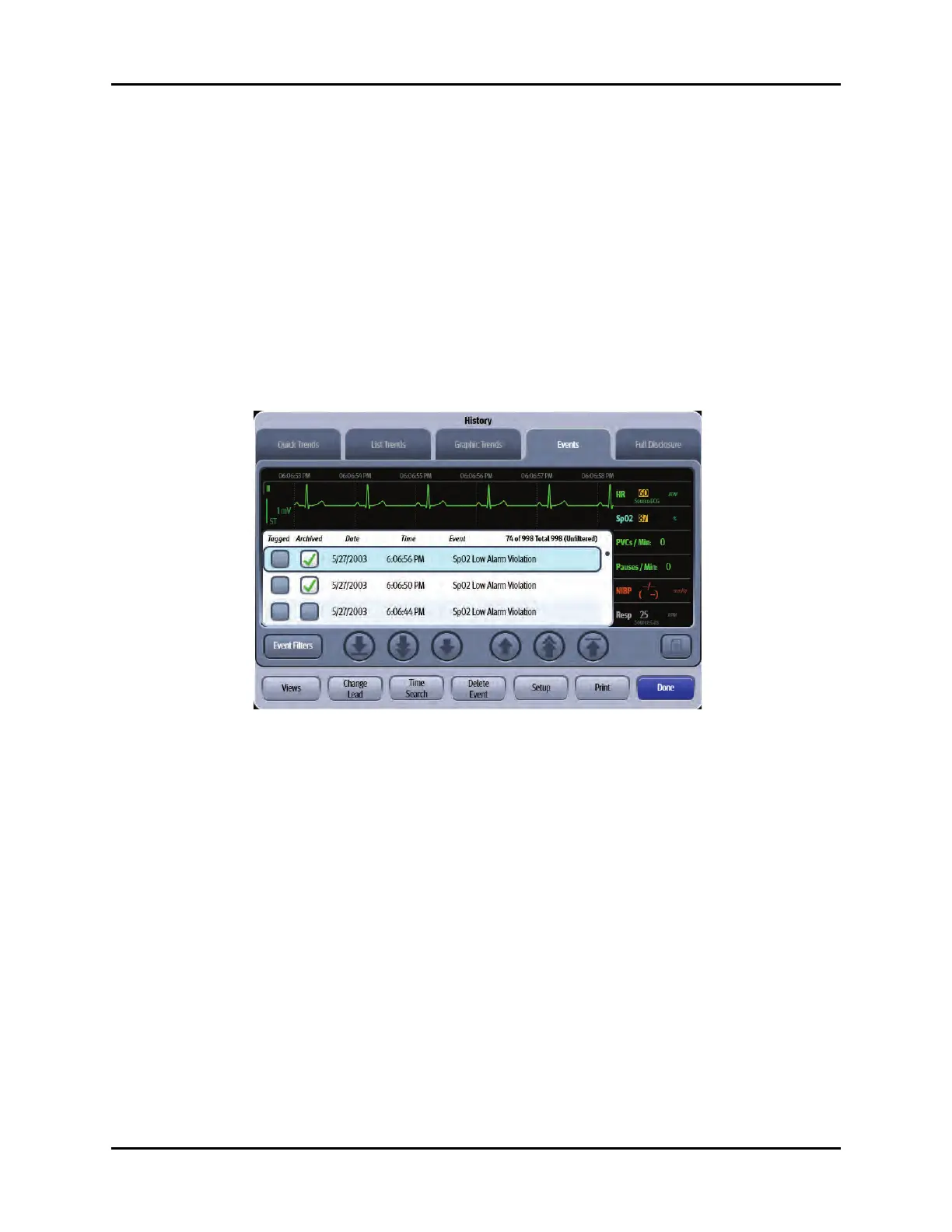

FIGURE 21-4 Example History Dialog (Events Tab List View)
21.3.2 Events - List View
21.3.3 About the Events - List View Tab
The Events - List View:
• Displays the total number of events stored in the events database.
• Displays if an event filter is in place.
• Displays the date and time for each event record.
• Displays the cursor location.
• Displays a minimum of three (3) rows without requiring scrolling.
• Displays event digital tiles to the right of the grid.The digital tiles correspond to the selected
event.
• Displays the event waveform above the grid. The waveform corresponds to the selected event.
