V Series Operating Instructions 12 - 3
Heart Rate (HR) HR Dialog
12.2.2 Configuring Heart Rate Alarm Limits
Refer to "Configuring Alarm Limits" on page 8-2 for additional information.
12.2.3 Configuring the Heart Rate Parameter
1. Select the HR digital tile.
2. Select the Setup tab (as shown in FIGURE 12-2).
NOTE: The current parameter setting displays in bold to the right of each
button.

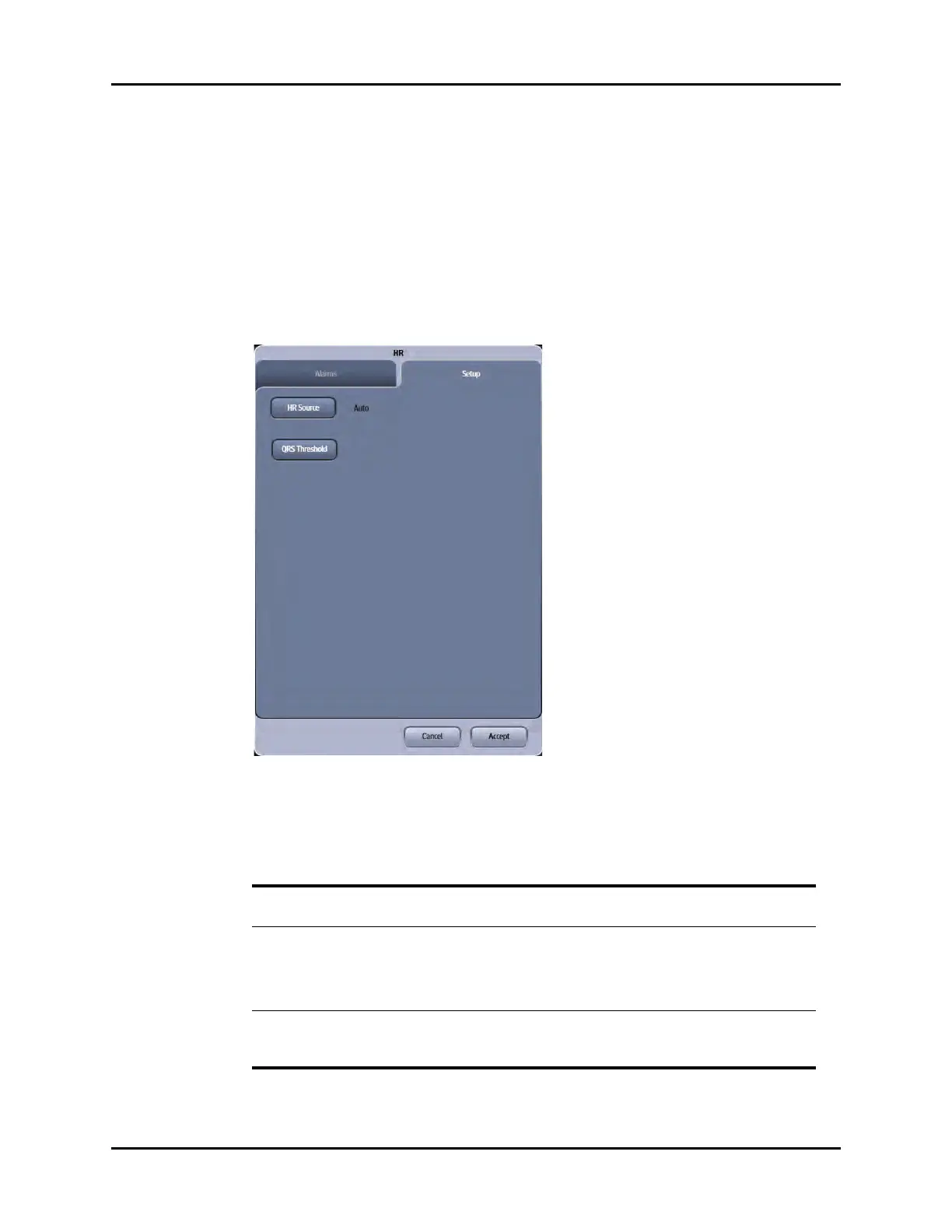

FIGURE 12-2 Example HR Dialog (Setup Tab)
3. Select the buttons described in TABLE 12-1 to configure the tab.
TABLE 12-1
BUTTON DESCRIPTION / COMMENTS CHOICES*
HR Source
Configures the HR source.
Auto, ECG, all available
pulsatile IBP channels, SpO
2
NOTE: The monitor produces an audible systole
beep from the current heart rate source. To
adjust the systole beep volume or to disable
it, refer to "Audio Levels Dialog" on page 2-
13.
QRS Threshold
Configures the minimum QRS threshold.
Refer to "Configuring the QRS
Threshold" on page 12-4 for
additional information.
* The factory default configuration settings are in bold.
