V Series Operating Instructions 11 - 3
Invasive Blood Pressure (IBP) IBP Dialog
Button on IBP Module
Each IBP module has one (1) button. Press the Zero IBP button to set the current pressure for
two (2) IBP channels of the corresponding module to zero.
Display Setup
To see the IBP values, IBP must be configured to display on the Main Screen. Refer to "Display Options
Dialog" on page 3-2 for additional information.
11.2 IBP Dialog
The IBP dialog (as shown in FIGURE 11-2) contains an Alarms tab, Setup tab, and Waveform tab. A
description of each tab follows.
11.2.1 Navigating to the IBP Dialog
• Select the IBP digital or waveform tile.
OR
1. Select the Setup tab from the Navigation Area.
2. Select the Parameters button.
3. Select an IBP button.
The IBP dialog displays (as shown in FIGURE 11-2).
.

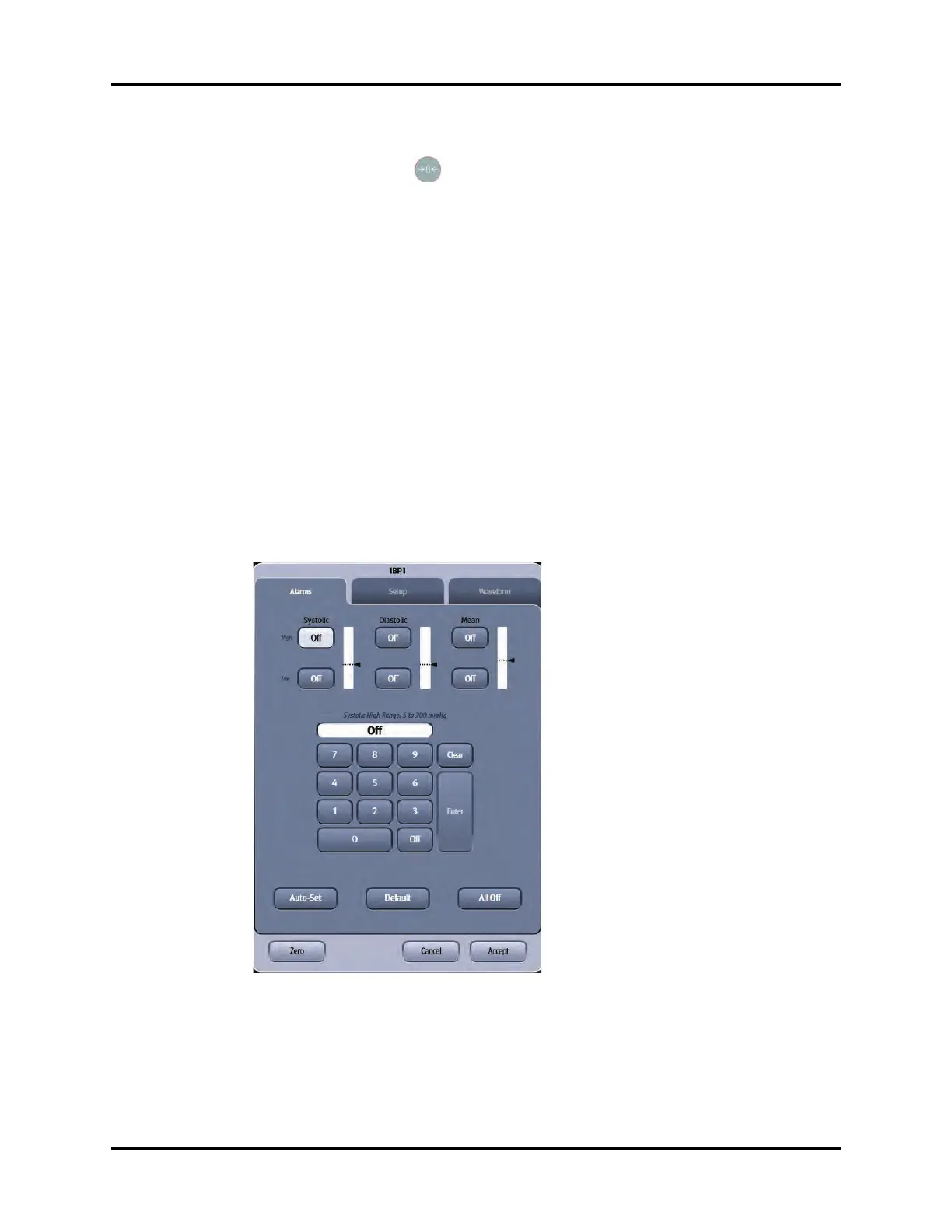

FIGURE 11-2 Example IBP Dialog (Alarms Tab)
11.2.2 Configuring IBP Alarm Limits
Refer to "Configuring Alarm Limits" on page 8-2 for additional information.
