Gas Dialog Gases (Optional)
2 - 4 Addendum to V Series Operating Instructions

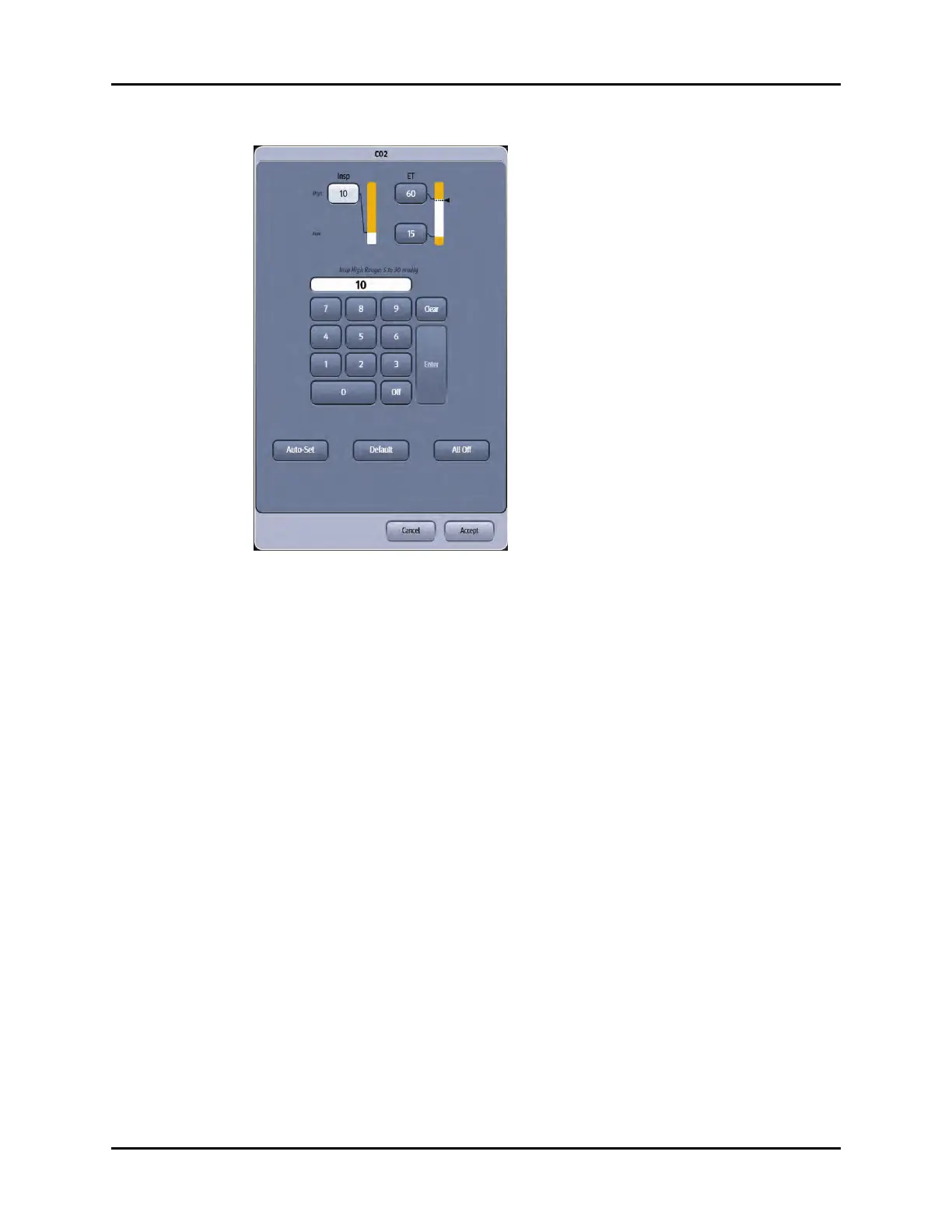

FIGURE 2-3 Example CO
2
Alarm Dialog
NOTE: For the limit ranges of N
2
O, O
2
, and five known anesthetic agents, refer
to "Configuring Alarm Limits" on page 8-2 in the V Series Operating
Instructions.
2.2.3 Configuring the Gases Parameter Setup
1. Select the Gases digital tile.
2. Select the Set
up tab (as shown in FIGURE 2-4).
NOTE: The current parameter setting displays in bold to the right of each
button.
