IBP Dialog Invasive Blood Pressure (IBP)
11 - 4 V Series Operating Instructions
11.2.3 Configuring the IBP Parameter
1. Select the IBP digital or waveform tile.
2. Select the Setup tab (as shown in FIGURE 11-3).
NOTE: The current parameter setting displays in bold to the right of each
button.

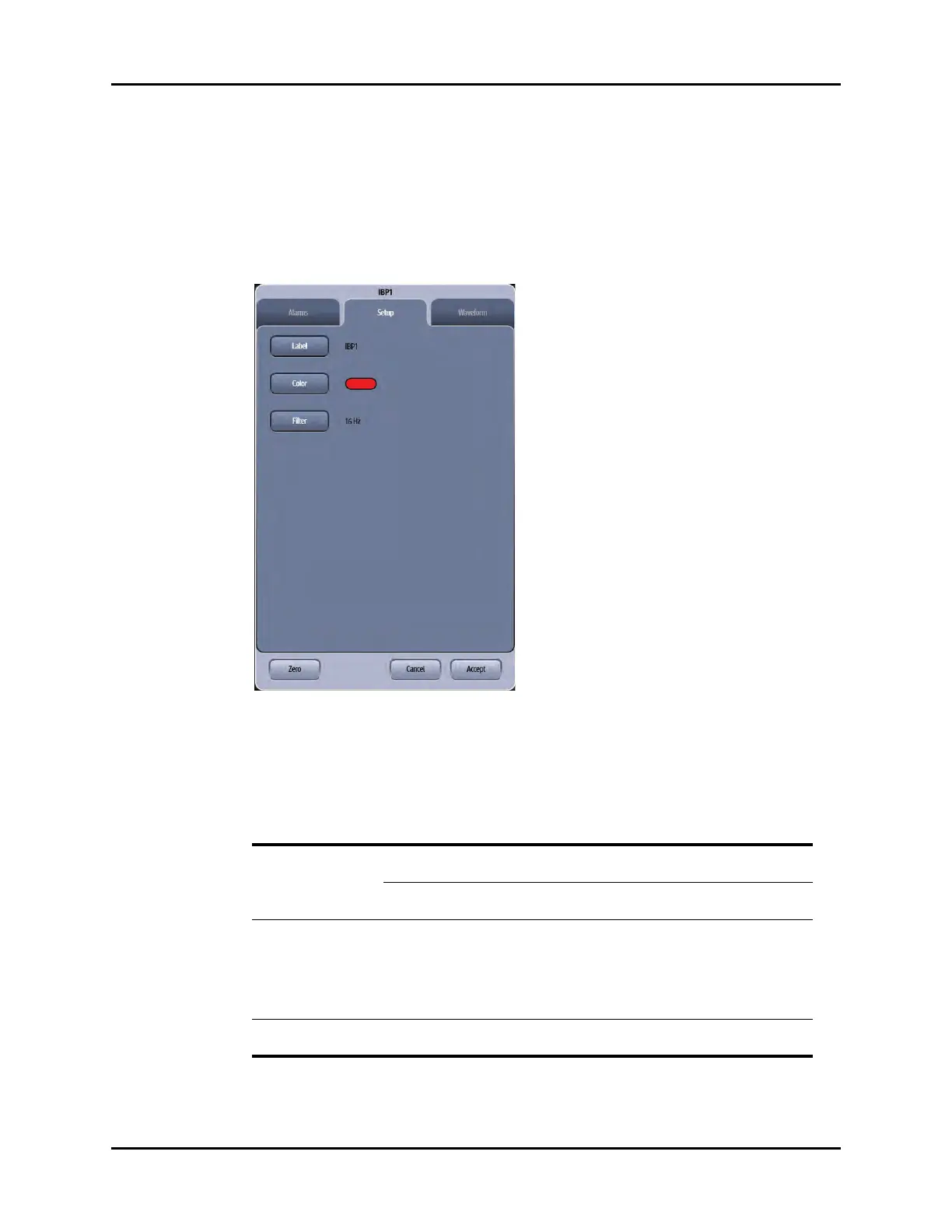

FIGURE 11-3 Example IBP1 Dialog (Setup Tab)
3. Select the buttons described in TABLE 11-1 to configure the tab.
TABLE 11-1
BUTTON DESCRIPTION / COMMENTS CHOICES*
Label** Configures the IBP label. IBPx, ART, ART2, UA, LV, PA, CVP, ICP,
IAP, LA, RA
NOTE: When an IBP module is connected or
removed, the label information remains.
Color** Configures the IBP parameter color. 16 distinct colors
Channel 1/ART/ART2/UA/LV: Red
Channel 2/PA: Yellow
Channel 3/CVP/RA: Blue
Channel 4: Green
Channel 5- 8/ICP/LA/IAP: White
Filter Configures the IBP filter frequency for
each channel.
8 Hz, 12 Hz, 16 Hz
* The factory default configuration settings are in bold.
** Refer to glossary for acronym definitions
