Display Options Dialog Display Setup
3 - 16 V Series Operating Instructions
3.2.14 Displaying NIBP Digital Tile in Large Font
The V 12/V 21 display grid supports the Double Width displaying mode to display the NIBP tile in
large font to improve the visibility of NIBP values.
To configure the Double Width displaying mode, when NIBP and NIBP list are both on the grid:
• Select the Display Options icon located in the upper right corner of the Header Bar.
OR
1. Select the Setup tab from the Navigation Area.
2. Select the Display button, then select the Display Setup button.
3. Select a preset from the list, then select the Edit button.
4. Select the NIBP List digital tile on the grid.
A list of numeric parameters displays to the right of the grid (as shown in FIGURE 3-6).

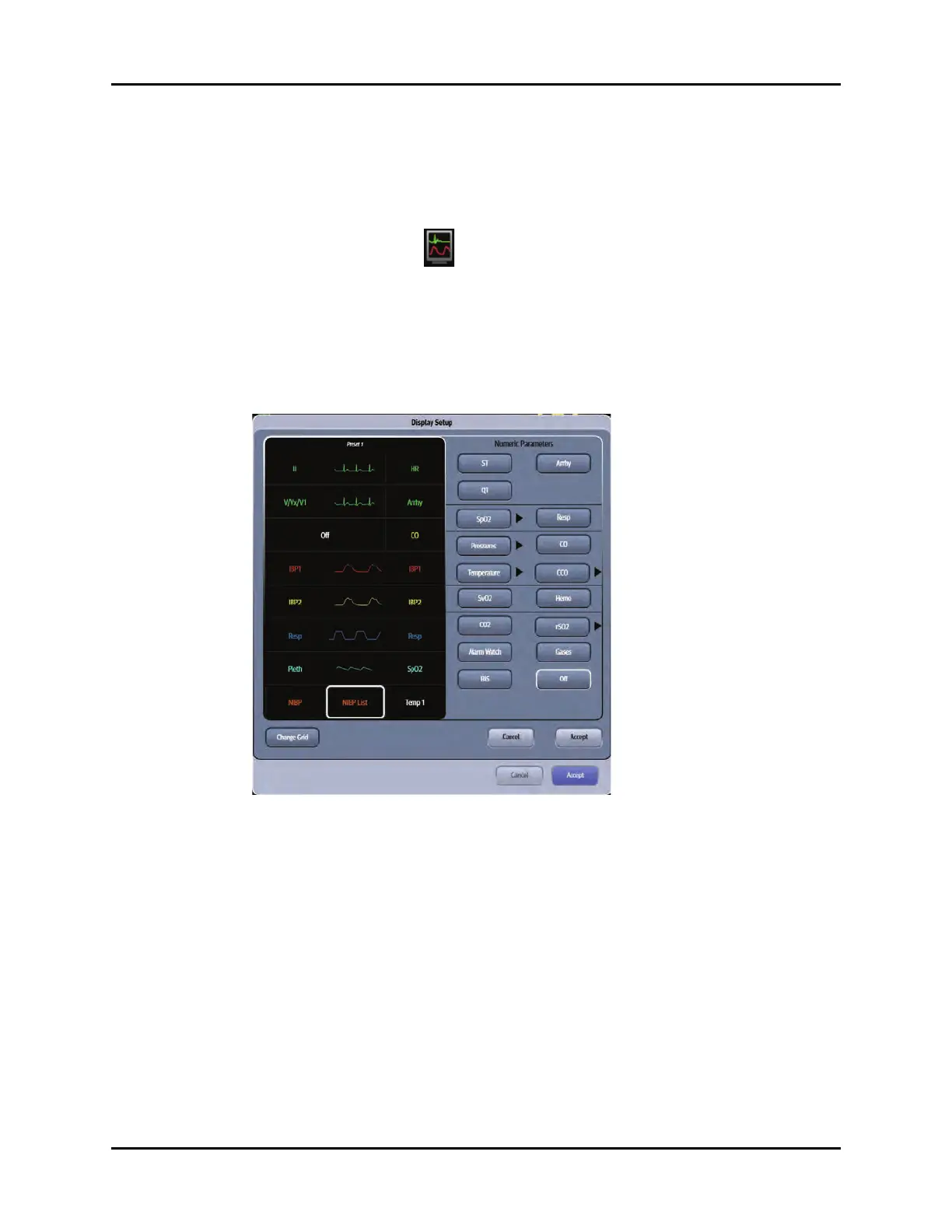

FIGURE 3-6 Example Display Setup Grid (Numeric Parameters)
5. Select the Off button to configure the NIBP List digital tile as empty.
6. Continue to select the Cancel or Accept button to return to the Main display.
•The Cancel button closes the dialog without saving the settings.
•The Accept button saves the settings and closes the dialog.
NOTE: For the NIBP digital tile layout, refer to "NIBP Digital Tile Layout" on
page 14-10.
