8.1.2 Installing procedure
This section describes how to install a communication unit on a GOT.
A communication unit can also be installed together with another extension unit.
When installing a communication unit together with some other extension unit, after executing the procedure
in this section, refer to the following.
8.1.3 Installing multiple extension units in layers
1 Bus connection unit
(1) GT15-QBUS, GT15-ABUS

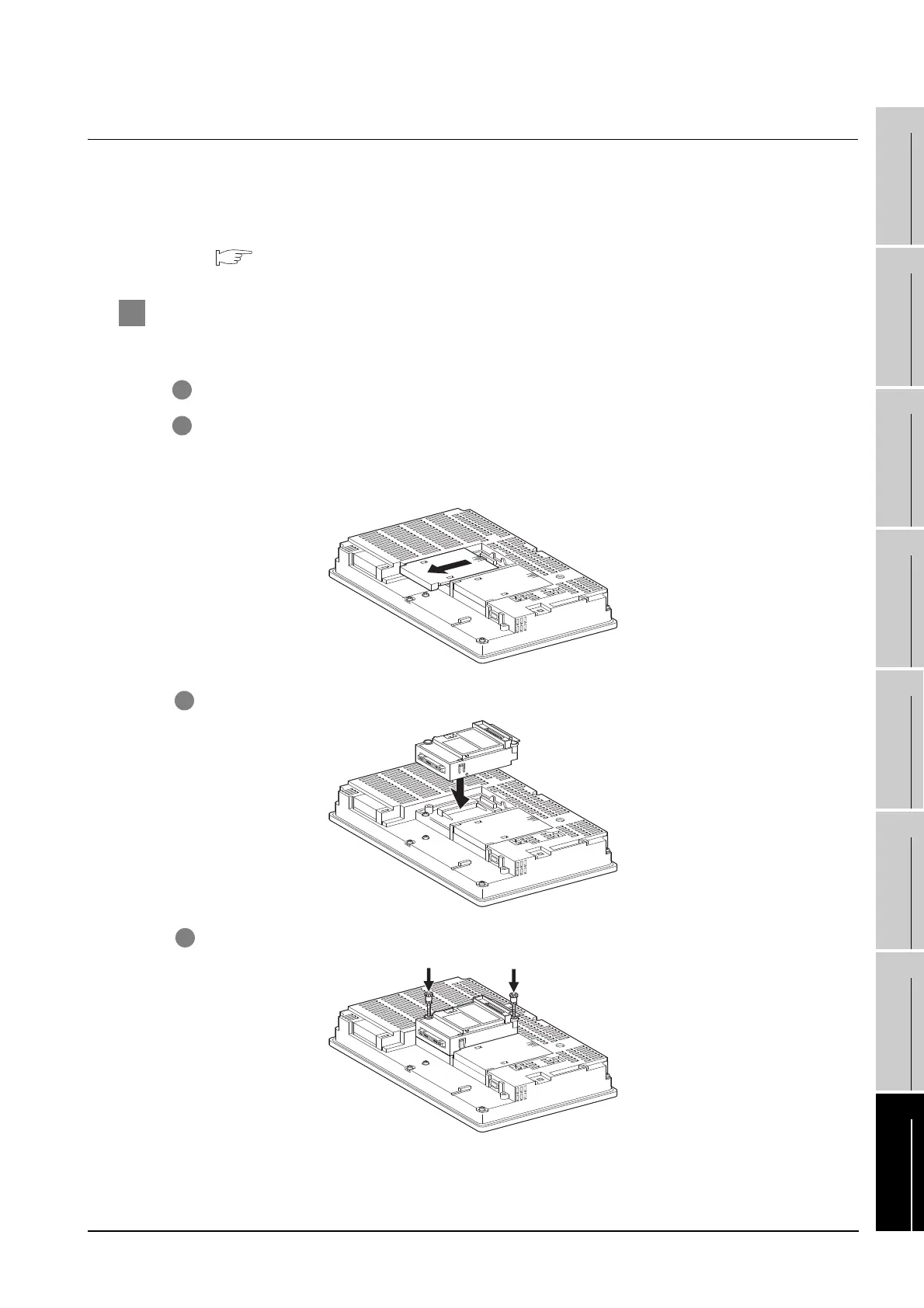

3 Fit the communication unit in the GOT case.
1 Power OFF the GOT.
2 Remove one extension unit cover of the GOT.
4 Fasten the communication unit by tightening its mounting screws (2 places) with tightening
torque of 0.36 to 0.48 N·m
