8.10 Option Function Board
8.10.1 Applicable option function board
8.10 Option Function Board
The optional function board is used to extend the option function and the built-in flash memory.
When the function version of the GOT to be used is D or later, the option functions operated with the GT15-
FNB can be used without an option function board installed. (The latest standard monitor OS must be
installed on the GOT.)
For the option functions operated with the GT15-FNB, refer to the following.
•GOT1000 Series User's Manual (Extended Functions, Option Functions)
for GT Works3
•GOT1000 Series Extended/Option Functions Manual for GT Designer2/GT Works2

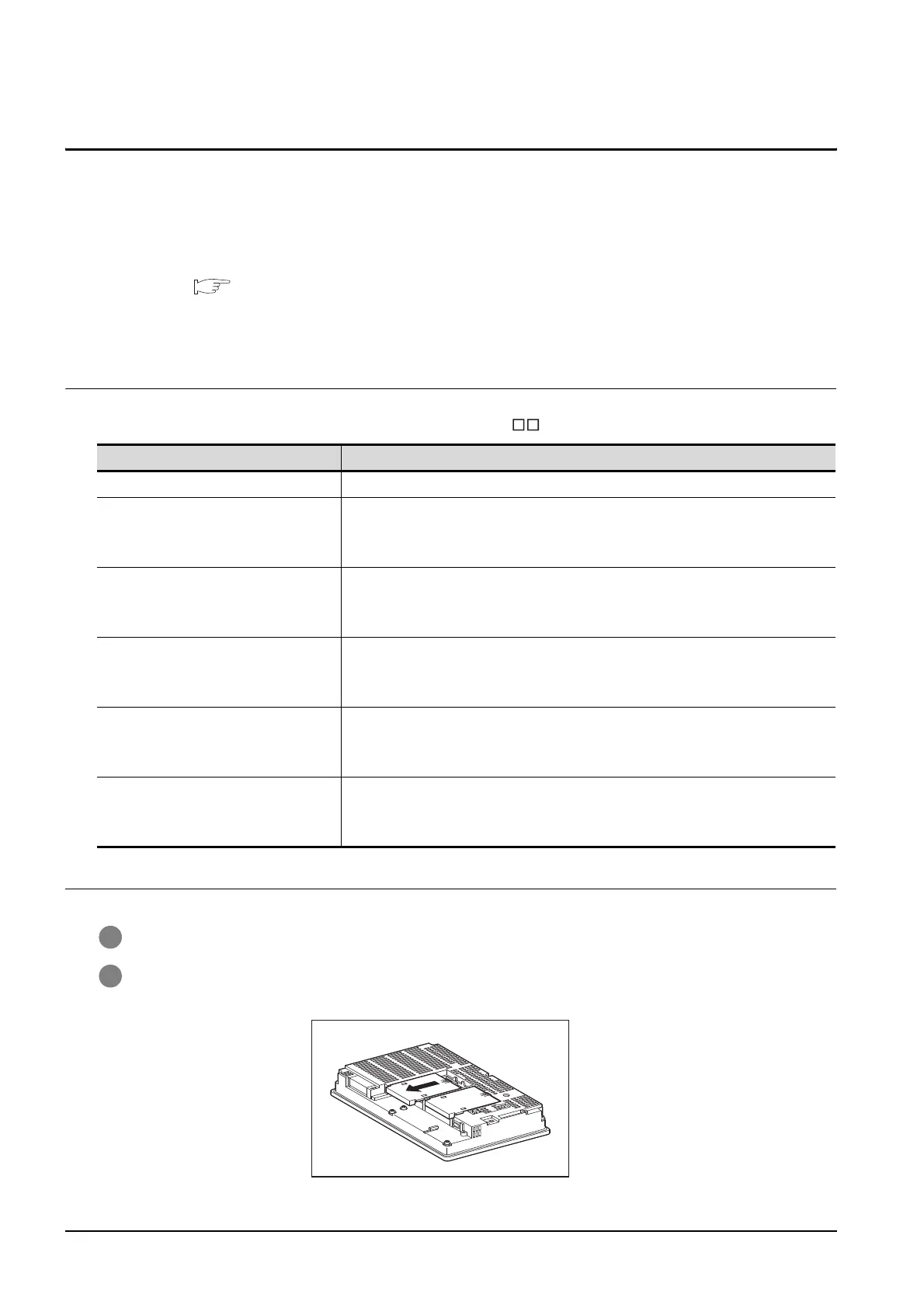

8.10.1 Applicable option function board
The following option function boards are applicable for GT15 .
8.10.2 Installing procedure
1 Power OFF the GOT.
2 Detach the extension unit cover (I/F-1 side) of GOT rear face.
When extention units are mounted on the GOT, remove the extention units.
Model Description
GT15-FNB Option function board
GT15-QFNB
Option function board
Applicable to MELSEC-Q/L/QnA ladder monitor function, multi-channel
function, and document display function
GT15-QFNB16M
Option function board with add-on memory (Option function+16MB)
Applicable to MELSEC-Q/L/QnA ladder monitor function, multi-channel
function, and document display function
GT15-QFNB32M
Option function board with add-on memory (Option function+32MB)
Applicable to MELSEC-Q/L/QnA ladder monitor function, multi-channel
function, and document display function
GT15-QFNB48M
Option function board with add-on memory (Option function+48MB)
Applicable to MELSEC-Q/L/QnA ladder monitor function, multi-channel
function, and document display function
GT15-MESB48M
Option function board with add-on memory (Option function+48MB)
Applicable to MELSEC-Q/L/QnA ladder monitor function, multi-channel
function, document display function, and MES interface function
