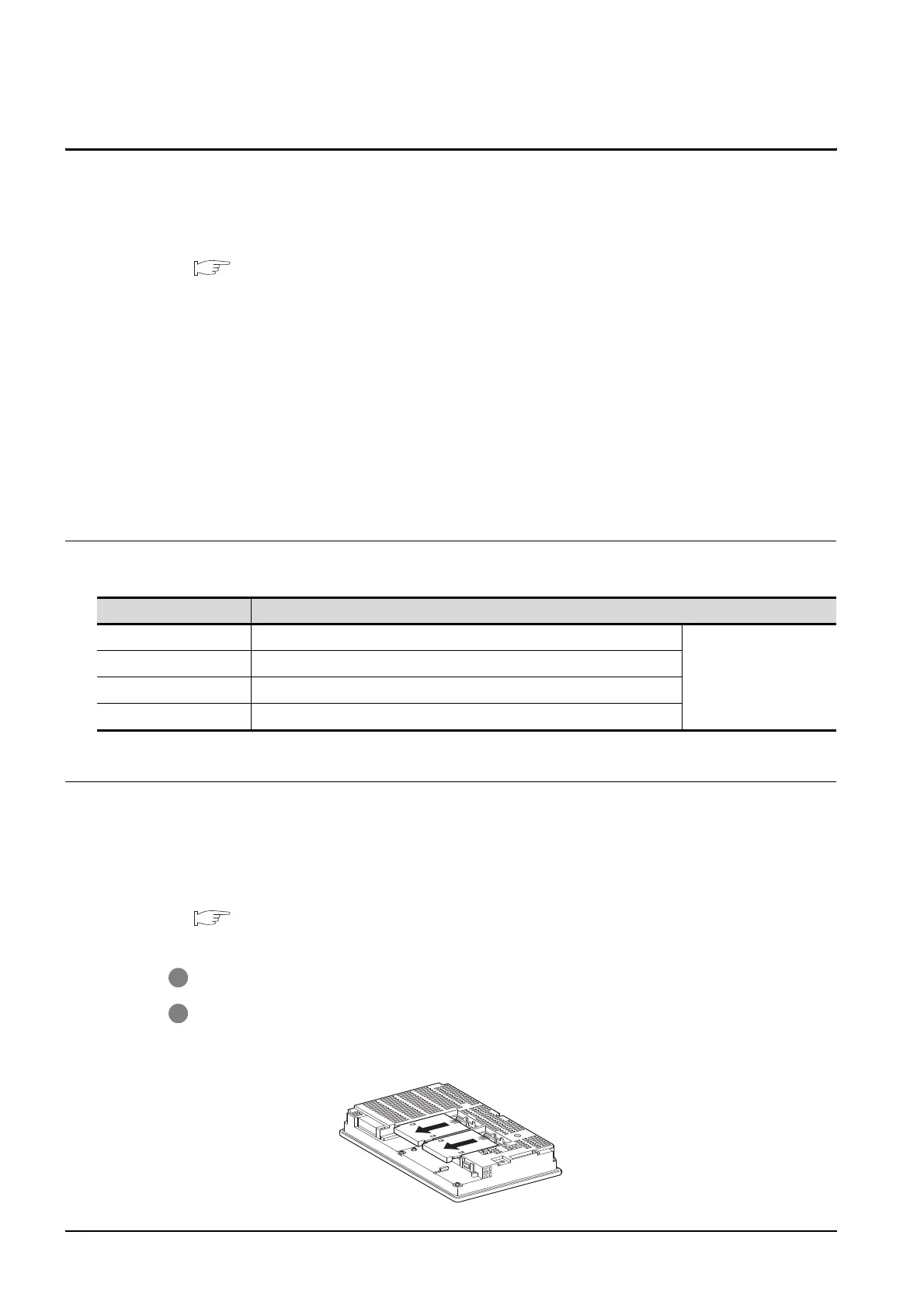

8 - 22
8.4 Video/RGB Unit
8.4.1 Video/RGB unit types
8.4 Video/RGB Unit
The video/RGB unit is used to connect a video camera, personal computer, or commercially available
display to a GOT.
To connect video/RGB unit, make Communication Settings.
For details of connection, refer to the following manual.
•GOT1000 Series Connection Manual
(Microcomputer, MODBUS Products, Peripherals) for GT Works3
•
GOT1000 Series Connection Manual for GT Designer2/GT Works2
• Video/RGB unit
Images taken with a video camera and a personal computer display can be displayed on the GOT.
• Video input unit
Images taken with a video camera can be displayed on the GOT.
• RGB input unit
A personal computer display can be displayed on the GOT.
• RGB output unit
A GOT display can be displayed on a commercially available display.
8.4.1 Video/RGB unit types
There are the following types of video/RGB units.
8.4.2 Installing procedure
This section explains how to install a video/RGB unit on a GOT.
A video/RGB unit can also be installed together with another extension unit.
When installing a video/RGB unit together with some other extension unit, after executing the procedure in
this section, refer to the following.
One video/RGB unit can be installed only in the first stage of the extension interface.
8.1.3 Installing multiple extension units in layers
Model name Description
GT15V-75V4 For NTSC/PAL input 4 channels
Only for video/RGB
compliant models
GT15V-75R1 For analog RGB input 1 channel
GT15V-75V4R1 For NTSC/PAL (4ch)/analog RGB (1ch) mixed input
GT15V-75ROUT For analog RGB output
1 Power OFF the GOT.
2 Remove the two extension unit covers of the GOT rear face.
To Next Page
