8.7 CF Card Unit and CF Card Extension Unit
8.7.1 Applicable CF card unit and CF card extension unit
8.7 CF Card Unit and CF Card Extension Unit
When an additional drive is used, the CF card unit or CF card extension unit can be used as the B drive of
the GOT.
The CF card extension unit is a set of the control panel side installation unit (GT15-CFEX) and the GOT side
installation unit (GT15-CFEXIF).
When the CF card extension unit is used, the control panel side installation unit on the control panel has the
CF card interface. Therefore, when the CF card is inserted or ejected, there is no need to open the control
panel's door.
For using the CF card unit and the CF card extension unit, set the communication settings.
8.7.1 Applicable CF card unit and CF card extension unit
The following CF card unit and the CF card extension unit are applicable to GT15 .
8.7.2 Installing on GOT

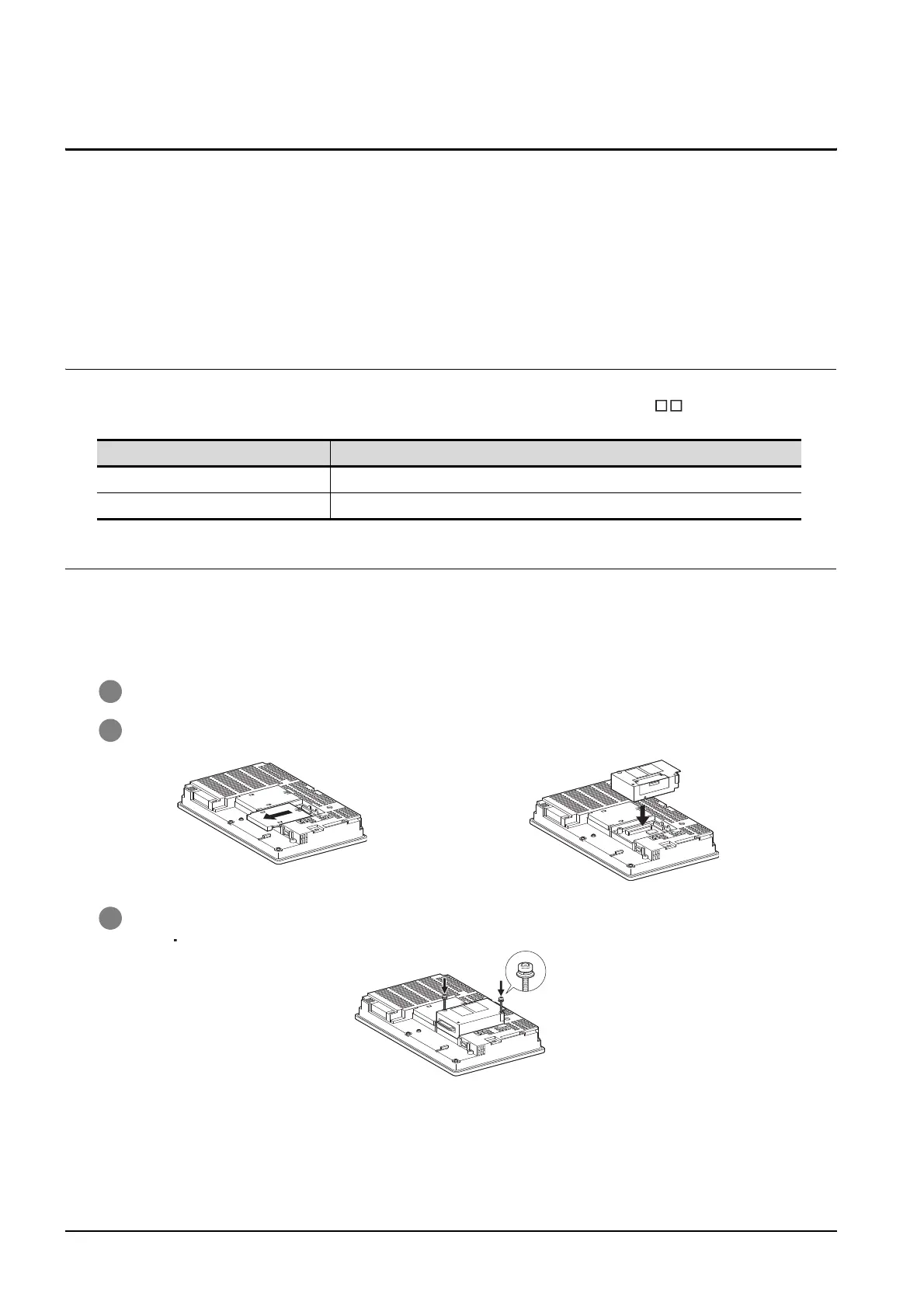

The section explains how to install the CF card unit or the CF card extension unit on the GOT.
The following is an example of installing the CF card unit.
For installing the CF card extension unit, install the GOT side installation unit on the GOT with the same
procedure.
1 Power off the GOT.
2 Remove one extension unit covers of the GOT and fit the CF card unit in the GOT case.
3 Fasten the CF card unit by tightening its mounting screws (2 places) with tightening torque 0.36 to
0.48N m.
Model name Description
GT15-CFCD CF card unit
GT15-CFEX-C08SET CF card extension unit
