13.4.3 The display example of alarm information
Display of creation date and time
The creation date and time display is not updated even if a file is created or updated
while displaying the alarm information display screen.
If close the screen currently displayed (moving the screen to the folder of the upper
hierarchy, etc.) and display the screen again, the updated contents are displayed.
Folders and files displayed
For the folders and files displayed, refer to the following.
13.1.5 Display file
Number Item Description
(1) Select drive
The drive which displays file or folder can be selected.
When CF card is not installed, [A: Built-in CF card] and [B: Memory card] are
not displayed.
(2) Kind
Indicates whether the displayed name is file or folder.
In case of file, displays the extension; in case of folder, displays "DIR".
(3) Name
Displays the file name or folder name.
For the long file/folder name, entire part may not be displayed.
Confirm the nondisplayed part with the button, etc.
( 13.4.4
Copy operation)
After confirmation, touch the button to cancel the operation.
(4) Path name Displays the path name of drive/folder which is currently displayed.
(5) Size Displays the size of the file displayed in Name.
(6) Date and time The date and time when each file was created are displayed.
(7) The size of drive
Displays the size in use and the entire size of the drive which is selected by
drive selection. (Only the size in use is displayed when selecting the C drive.)
(8) Operation switch Execution switch of each function.
(9)
Number of folders and
files
Displays the total number of the displayed files and folders.

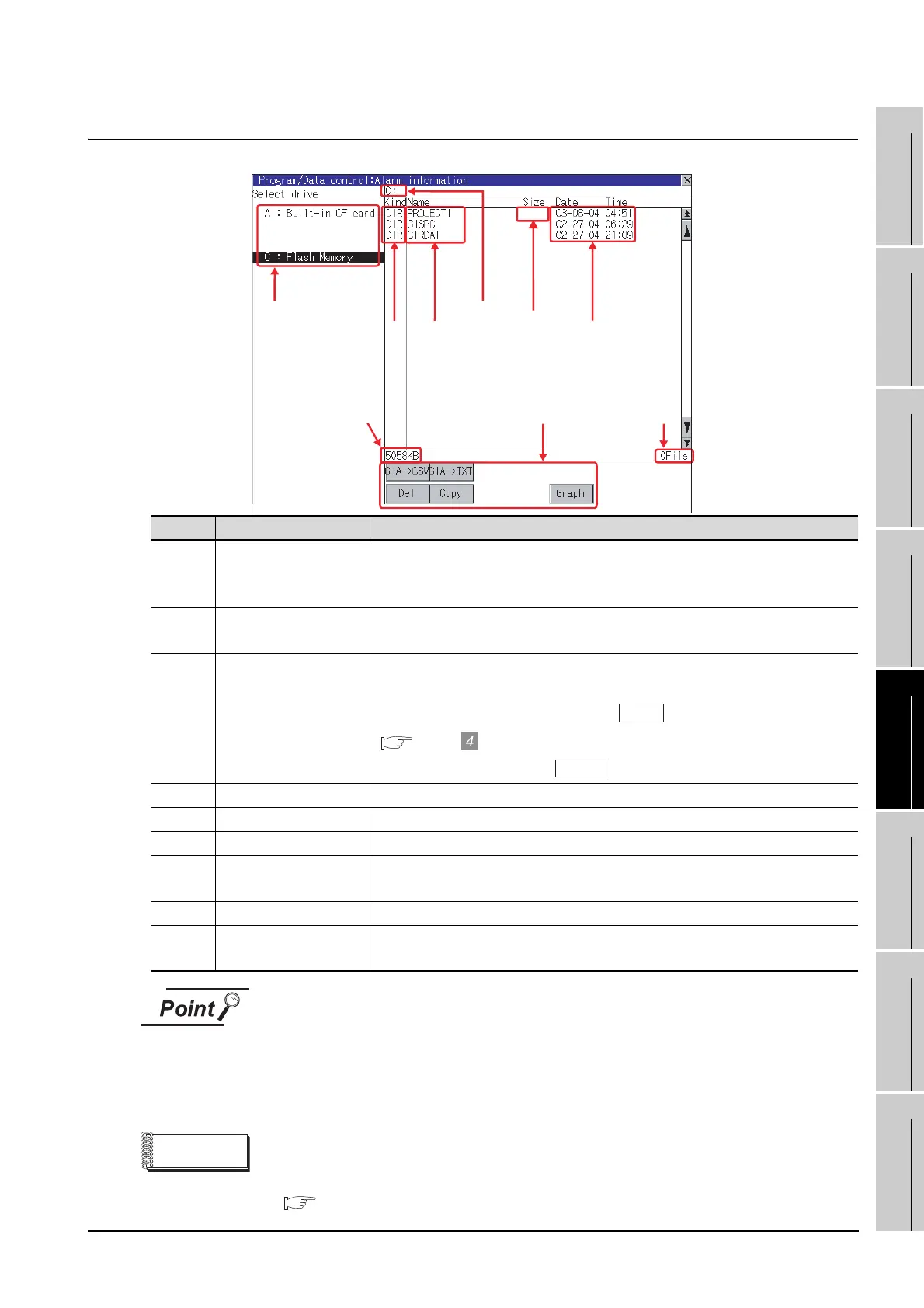

(1)
(2) (3)
(4)
(5)
(6)
(7) (8) (9)
